APEM IP67 Black Tactile Switch Push Button 50mA 24 V dc, Panel
- RS Stock No.:
- 287-3624
- Mfr. Part No.:
- 3CSH9R
- Brand:
- APEM
Get a bulk buy discount
Add 25 more to save 5%
View bulk pricing optionsSubtotal (1 unit)*
£1.96
(exc. VAT)
£2.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
- Plus 500 unit(s) shipping from 23 November 2026
- Plus 500 unit(s) shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 24 | £1.96 | - |
| 25 - 49 | £1.86 | 5% |
| 50 - 99 | £1.79 | 8% |
| 100 - 499 | £1.73 | 11% |
| 500 + | £1.67 | 14% |
*price indicative
- RS Stock No.:
- 287-3624
- Mfr. Part No.:
- 3CSH9R
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Product Type | Tactile Switch | |
| Actuator Colour | Black | |
| Mount Type | Panel | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Push Button | |
| Contact DC Voltage | 24V dc | |
| Maximum Operating Temperature | 115°C | |
| Switch Contact Current | 50mA | |
| Switch Configuration | SP | |
| Series | 3 | |
| Standards/Approvals | No | |
| IP Rating | IP67 | |
| Height | 15mm | |
| Mechanical Life | 10000000Cycles | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Product Type Tactile Switch | ||
Actuator Colour Black | ||
Mount Type Panel | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Push Button | ||
Contact DC Voltage 24V dc | ||
Maximum Operating Temperature 115°C | ||
Switch Contact Current 50mA | ||
Switch Configuration SP | ||
Series 3 | ||
Standards/Approvals No | ||
IP Rating IP67 | ||
Height 15mm | ||
Mechanical Life 10000000Cycles | ||
- COO (Country of Origin):
- DK

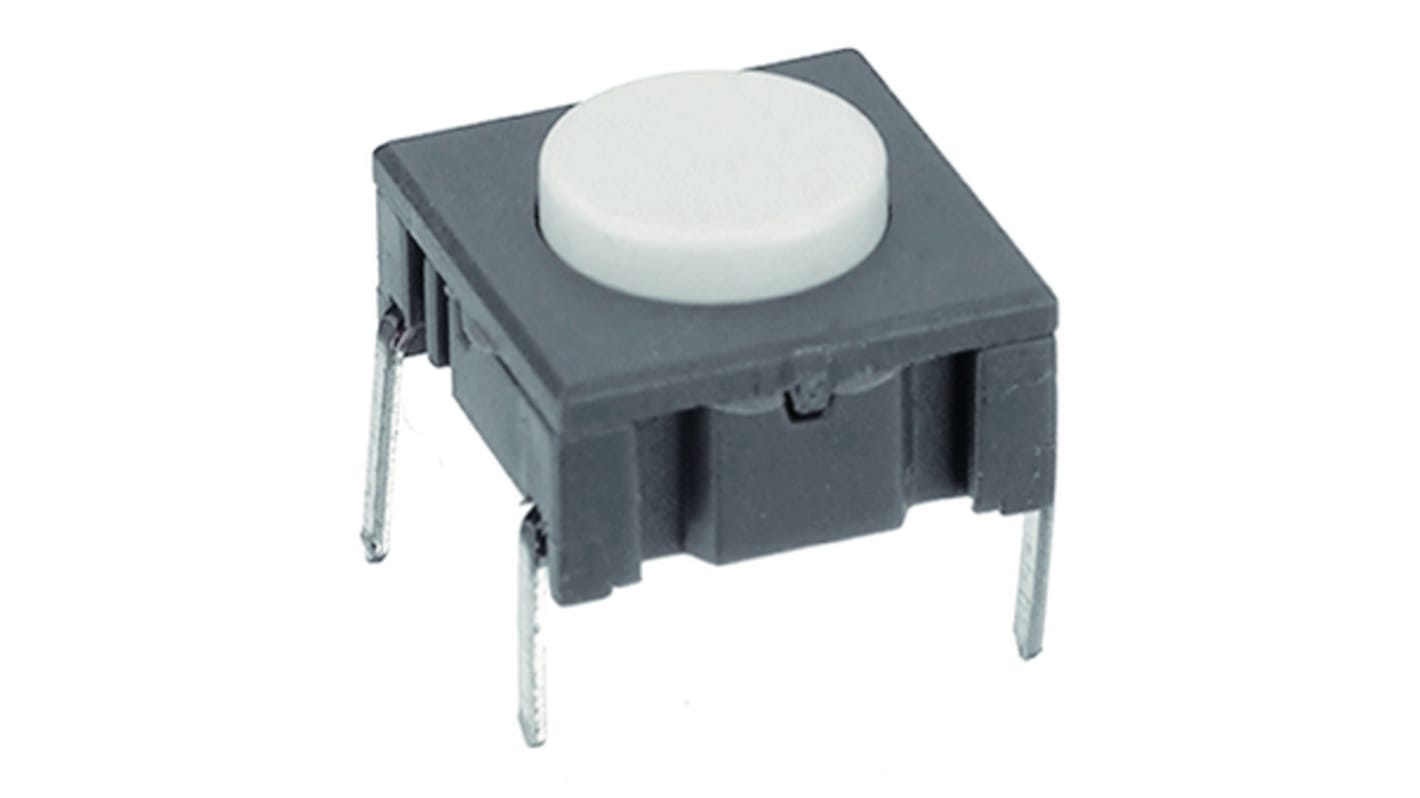

The APEM Multimec 3C switch is a reliable and cost-effective solution for build-in and over-mould applications. With its great functionality even if the overlay breaks, this switch offers simplicity and ease of upgrade by changing the overlay rather than the PCB itself.
Mounting options include surface mount and optional right angle for through-hole applications
Single pole/momentary switch with 10,000,000 operations lifetime for long-lasting performance
Temperature range of -40/+160°C and IP 67 sealing for durability in various environments
Actuation force of 3.5N for smooth operation
Contact resistance of <30mΩ and insulation resistance of >10MΩ for reliable connections
Housing and actuator made from PPS UL94V0 material for strength and resilience
Lifetime of over 10,000,000 cycles for extended use
Customizable options available for specific requirements
