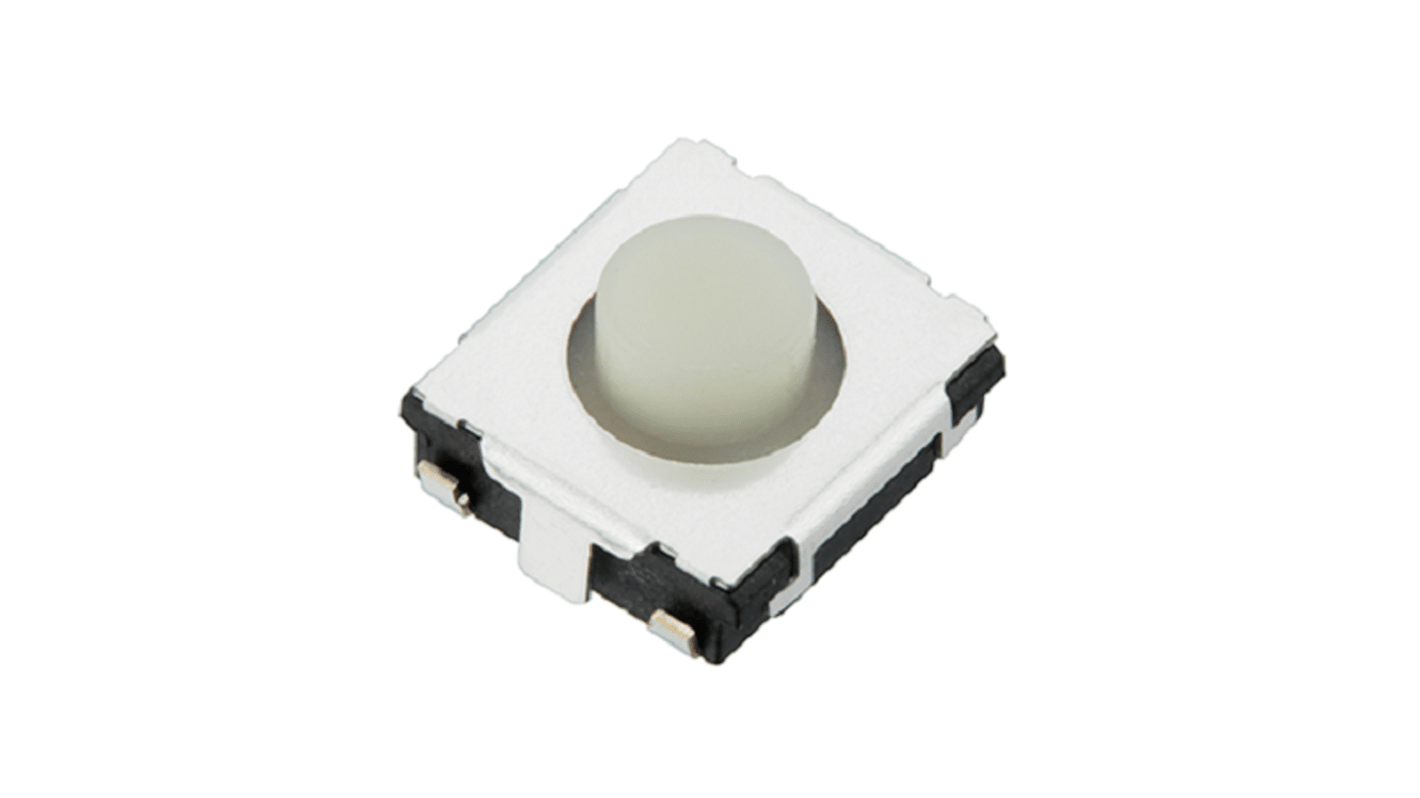

Panasonic White Tactile Switch Push Plate, SPST 20mA 15 V dc, Surface
- RS Stock No.:
- 238-3769
- Mfr. Part No.:
- EVQQ2U02W
- Brand:
- Panasonic
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Tape of 10)
£1.51
(exc. VAT)
£1.81
(inc. VAT)
- RS Stock No.:
- 238-3769
- Mfr. Part No.:
- EVQQ2U02W
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | J Bend | |
| Switch Operation | Push-On | |
| Actuator Colour | White | |
| Actuator Style | Push Plate | |
| Mount Type | Surface | |
| Contact DC Voltage | 15V dc | |
| Actuator Orientation | Straight | |
| Switch Contact Current | 20mA | |
| Series | EVQQ | |
| Standards/Approvals | No | |
| Height | 2.5mm | |
| Operating Force | 2.6N | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type J Bend | ||
Switch Operation Push-On | ||
Actuator Colour White | ||
Actuator Style Push Plate | ||
Mount Type Surface | ||
Contact DC Voltage 15V dc | ||
Actuator Orientation Straight | ||
Switch Contact Current 20mA | ||
Series EVQQ | ||
Standards/Approvals No | ||
Height 2.5mm | ||
Operating Force 2.6N | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- MY
The Panasonic square thin type SMD light touch switch has external dimensions 6.5 mm x 6.0 mm and height 1.8 mm. It has with or without ground terminal, height, operating force and overstroke travel. The operating switches for other electronic equipment, PC mouse, car audio system.
Travel type short push travel or overstroke travel
Type snap action/push-on type SPST
Electrical rating 10 μA 2 V DC to 20 mA 15 V DC (Resistive load)
Operating temperature between –40 °C to +85 °C
