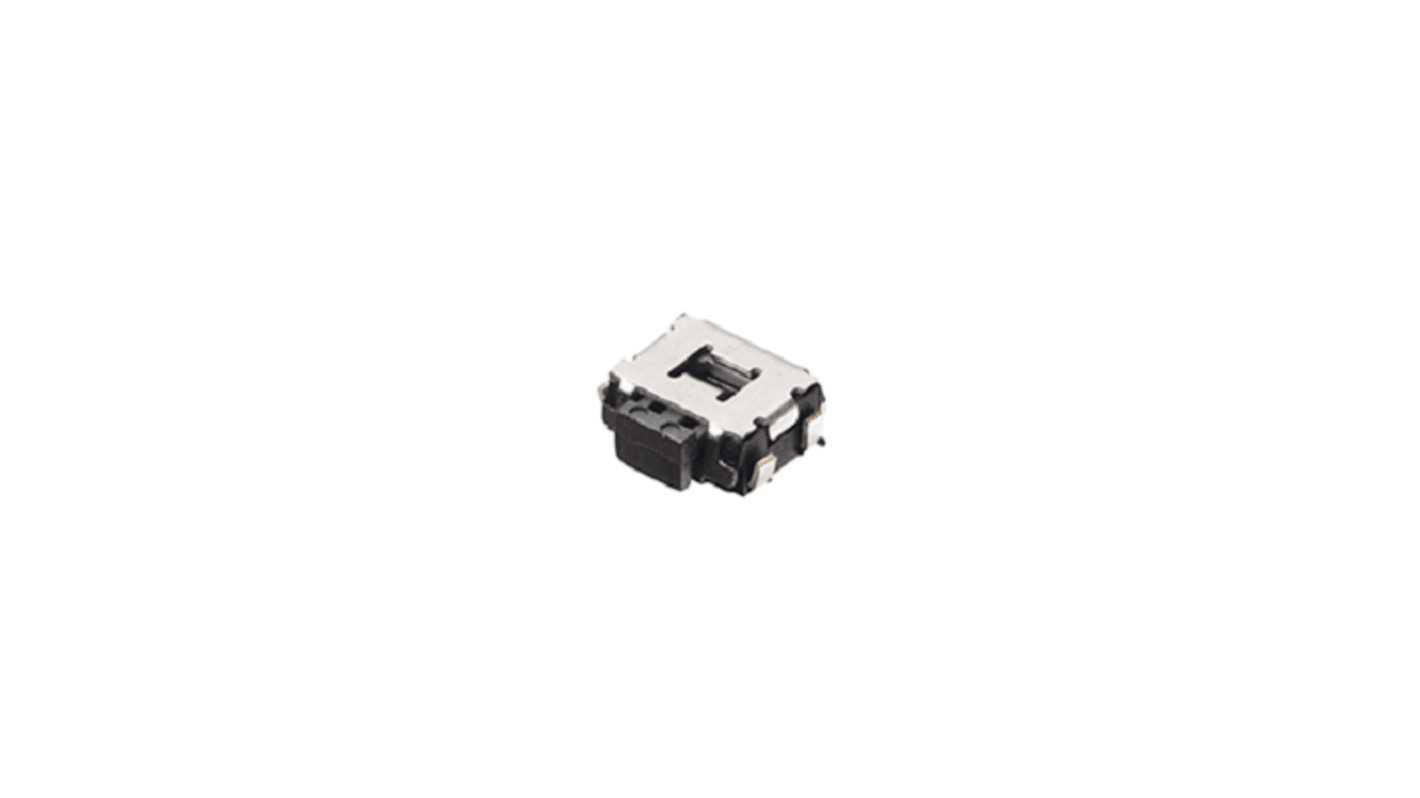

Panasonic Black, Grey Tactile Switch Push Plate, SPST 50 mA 12 V dc, Surface
- RS Stock No.:
- 238-3729
- Mfr. Part No.:
- EVQP7B01P
- Brand:
- Panasonic
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (Supplied on a Reel)
£0.181
(exc. VAT)
£0.217
(inc. VAT)
- RS Stock No.:
- 238-3729
- Mfr. Part No.:
- EVQP7B01P
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Straight | |
| Switch Operation | Push-On | |
| Actuator Colour | Black, Grey | |
| Actuator Style | Push Plate | |
| Actuator Orientation | Straight | |
| Mount Type | Surface | |
| Contact DC Voltage | 12V dc | |
| Standards/Approvals | No | |
| Series | EVQP | |
| Operating Force | 2.2N | |
| Height | 1.35mm | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Straight | ||
Switch Operation Push-On | ||
Actuator Colour Black, Grey | ||
Actuator Style Push Plate | ||
Actuator Orientation Straight | ||
Mount Type Surface | ||
Contact DC Voltage 12V dc | ||
Standards/Approvals No | ||
Series EVQP | ||
Operating Force 2.2N | ||
Height 1.35mm | ||
Mechanical Life 100000Cycles | ||
- COO (Country of Origin):
- CN
The Panasonic 3.5 mm x 2.9mm side-operational SMD tactile switch has wide range of Terminal type L-shape, J-bent, straight. It has push plate strength enhanced type. The operation switches for portable electronic equipment.
Type snap action / push-on type SPST
Electrical rating 10 μA 2 V DC to 50 mA 12 V DC ( Resistive load )
Mechanical operating force 1.6 N, 2.2 N
Operating temperature between -20℃ to +70℃
