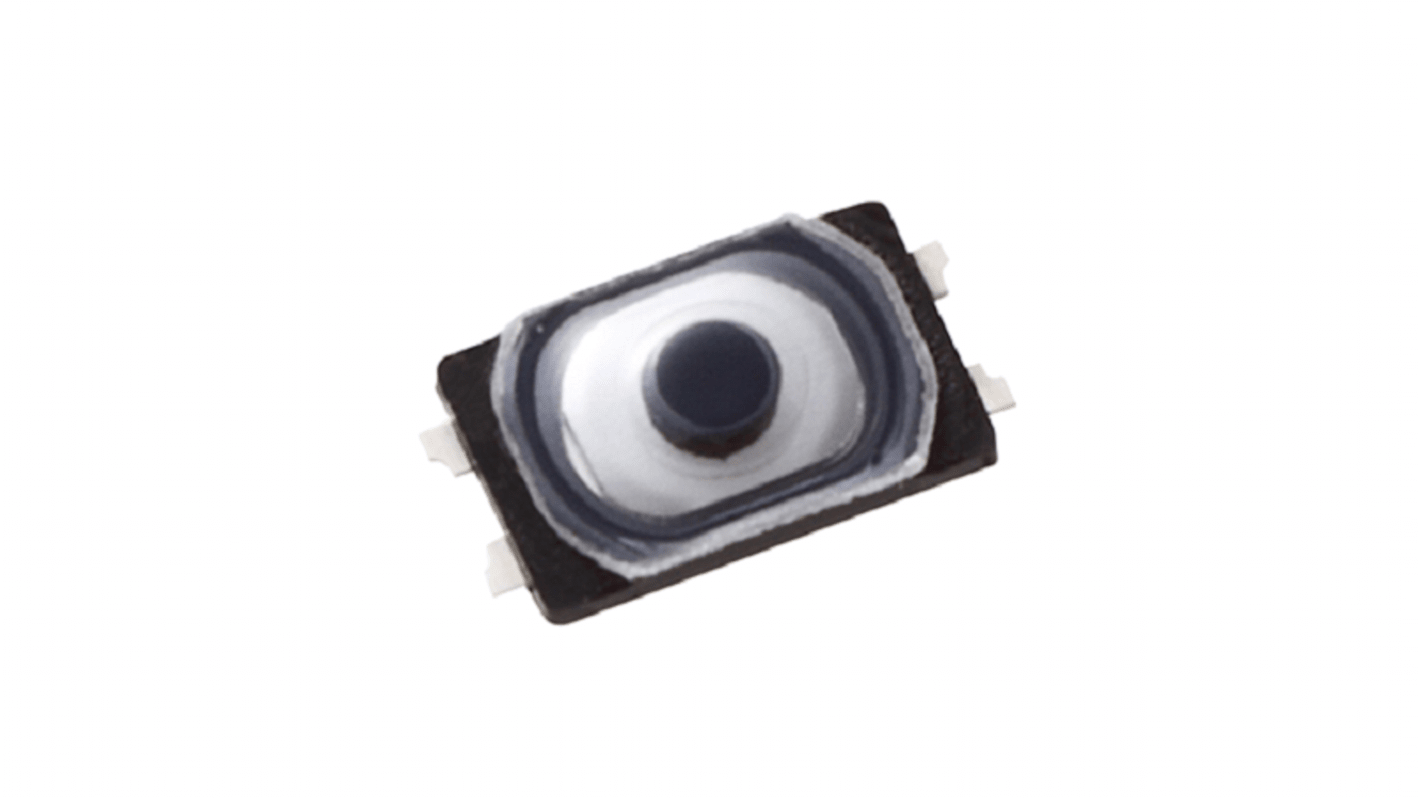

Panasonic IP67 Black Tactile Switch Push Plate, 0.7 mm, SPST 20mA 15 V dc, Surface

Subtotal 100 units (supplied on a continuous strip)*

£45.20

(exc. VAT)

£54.20

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 5,800 unit(s), ready to ship
Units
Per unit
100 +£0.452

*price indicative

Packaging Options:
RS Stock No.:
238-3716P
Mfr. Part No.:
EVPBB0AAE000
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Product Type

Tactile Switch

Contact Configuration

SPST

Terminal Type

Straight

Switch Operation

Push-On

Actuator Colour

Black

Actuator Length

0.7mm

Actuator Style

Push Plate

Actuator Orientation

Straight

Mount Type

Surface

Contact DC Voltage

15V dc

Switch Contact Current

20mA

Maximum Operating Temperature

85°C

Series

EVPB

IP Rating

IP67

Standards/Approvals

No

Operating Force

0.7N

Height

0.5mm

Mechanical Life

200000Cycles

RoHS Status: Exempt

The Panasonic 2.6 mm x 1.6 mm SMD tactile switch has high operability equipped with an actuator ( push plate ). The operation switches for smartphone , wearable devices.

Type snap action / push-on type SPST

Electrical rating 10 μA 2 V DC to 20 mA 15 V DC ( Resistive load )

Mechanical operating force 0.7 N, 1.0 N, 1.6 N, 2.4 N

Operating temperature between -40℃ to +85℃
