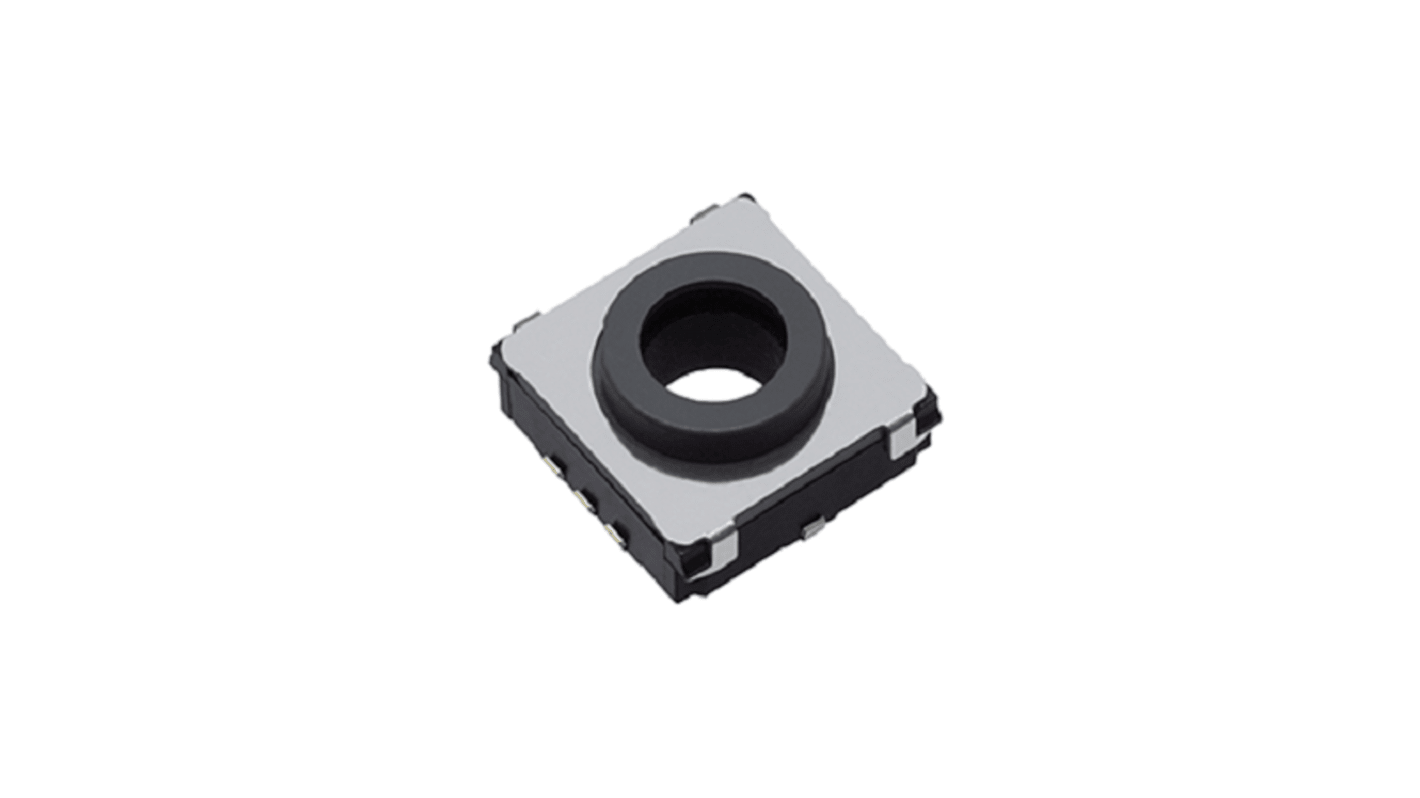

Panasonic Black, Grey Tactile Switch Push Plate, 7 mm, SPST 20mA 12 V dc, Surface
- RS Stock No.:
- 238-3699P
- Mfr. Part No.:
- EVPADK04K
- Brand:
- Panasonic
Get a bulk buy discount
Add 50 more to save 11%
View bulk pricing optionsSubtotal 25 units (supplied on a continuous strip)*
£29.50
(exc. VAT)
£35.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1,720 unit(s), ready to ship
Units | Per unit | Saving |
|---|---|---|
| 25 - 45 | £1.18 | - |
| 50 - 245 | £1.04 | 11% |
| 250 - 495 | £0.936 | 20% |
| 500 + | £0.774 | 34% |
*price indicative
- RS Stock No.:
- 238-3699P
- Mfr. Part No.:
- EVPADK04K
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | J Bend | |
| Switch Operation | Push-On | |
| Actuator Colour | Black, Grey | |
| Actuator Length | 7mm | |
| Illuminated | No | |
| Mount Type | Surface | |
| Contact DC Voltage | 12V dc | |
| Actuator Style | Push Plate | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 20mA | |
| Series | EVPAD | |
| Standards/Approvals | No | |
| Operating Force | 4N | |
| Height | 4.7mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type J Bend | ||
Switch Operation Push-On | ||
Actuator Colour Black, Grey | ||
Actuator Length 7mm | ||
Illuminated No | ||
Mount Type Surface | ||
Contact DC Voltage 12V dc | ||
Actuator Style Push Plate | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 20mA | ||
Series EVPAD | ||
Standards/Approvals No | ||
Operating Force 4N | ||
Height 4.7mm | ||
- COO (Country of Origin):
- JP
The Panasonic 10 mm square centre space long travel SMD light touch switch. The open centre space allows for flexibility in choosing a LED up to a 4.2 mm diameter chip LED can be mounted. It supports auto reflow soldering.
Control switches for automotive electronic equipment, such as car audio systems and heater control panels
Type snap action/push-on type SPST
Electrical rating 10 μA 2 Vdc to 50 mA 12 Vdc (Resistive load)
Operating temperature between –40 °C to +85 °C
