MPN

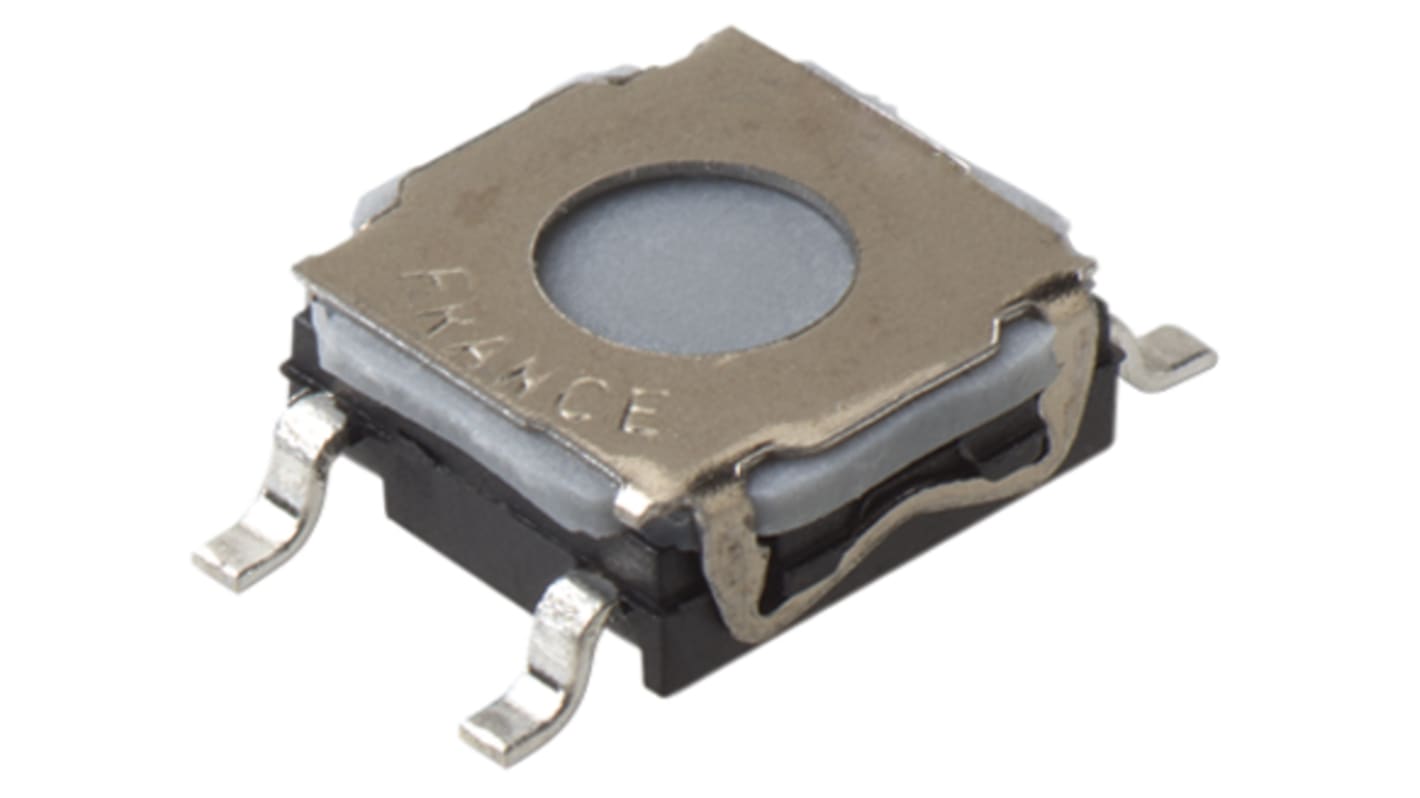

C & K IP67 Clear Tactile Switch Flush, SPST 50mA 32 V dc, Surface

RS Stock No.:: 135-9586
Mfr. Part No.:: KSC121J LFS
Brand:: C & K

C & K IP67 Clear Tactile Switch Flush, SPST 50mA 32 V dc, Surface

Subtotal (1 pack of 20 units)*

£7.78

(exc. VAT)

£9.34

(inc. VAT)

FREE delivery for orders over £60.00

Last RS stock

Final 120 unit(s), ready to ship

Units	Per unit	Per Pack*
20 +	£0.389	£7.78

*price indicative

RS Stock No.:: 135-9586
Mfr. Part No.:: KSC121J LFS
Brand:: C & K

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	C & K
	Product Type	Tactile Switch
	Contact Configuration	SPST
	Terminal Type	J Bend
	Switch Operation	Momentary
	Actuator Colour	Clear
	Length	6.8mm
	Width	6.8mm
	Illuminated	No
	Contact DC Voltage	32V dc
	Actuator Style	Flush
	Actuator Orientation	Straight
	Mount Type	Surface
	Minimum Operating Temperature	-40°C
	Switch Contact Current	50mA
	Maximum Operating Temperature	85°C
	Switch Configuration	(On)-Off
	Standards/Approvals	RoHS
	Series	KSC
	IP Rating	IP67
	Height	3.5mm
	Operating Force	1.8N
	Mechanical Life	300000Cycles

	Select all
	Brand C & K
	Product Type Tactile Switch
	Contact Configuration SPST
	Terminal Type J Bend
	Switch Operation Momentary
	Actuator Colour Clear
	Length 6.8mm
	Width 6.8mm
	Illuminated No
	Contact DC Voltage 32V dc
	Actuator Style Flush
	Actuator Orientation Straight
	Mount Type Surface
	Minimum Operating Temperature -40°C
	Switch Contact Current 50mA
	Maximum Operating Temperature 85°C
	Switch Configuration (On)-Off
	Standards/Approvals RoHS
	Series KSC
	IP Rating IP67
	Height 3.5mm
	Operating Force 1.8N
	Mechanical Life 300000Cycles

C&K Tactile Switches Technical data sheet

COO (Country of Origin):: FR

C&K KSC1 Series Tactile Switches

From C & K Switches, a range of IP67 sealed tactile switches for surface mounting. The KSC1 range of switches are 2.5 mm in height making them Ideal for printed circuit boards where space is limited. Switches in the KSC1 series have SPST-NO momentary silver contacts and are available with various actuation forces to suit most applications. The KSC1 series of tactile switches are supplied with no actuator.

Features and Benefits

• IP67

• J bend termination

• Positive tactile feeling

• Small footprint

• Ultra low current

Applications

• Automotive

• Industrial electronics

• Mobile phones

• Network infrastructure and IT

Tactile
