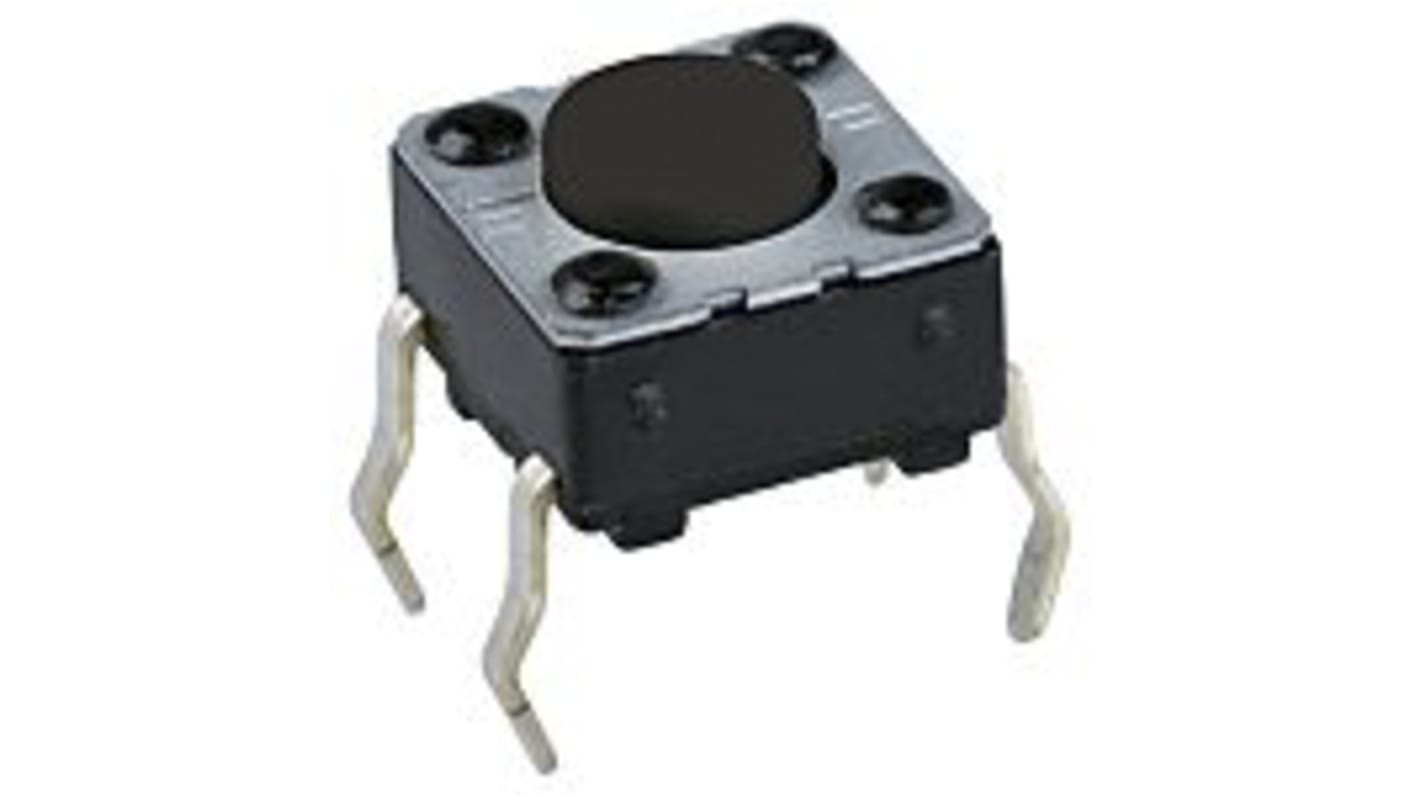

C & K IP40 Grey Tactile Switch Button, SPST 50mA 12 V dc, Through Hole
- RS Stock No.:
- 135-9433
- Mfr. Part No.:
- PTS645VH582 LFS
- Brand:
- C & K
Subtotal (1 pack of 20 units)*
£4.30
(exc. VAT)
£5.16
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.215 | £4.30 |
*price indicative
- RS Stock No.:
- 135-9433
- Mfr. Part No.:
- PTS645VH582 LFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Terminal | |
| Switch Operation | Momentary | |
| Actuator Colour | Grey | |
| Length | 7.5mm | |
| Width | 6.2mm | |
| Illuminated | No | |
| Minimum Operating Temperature | -20°C | |
| Actuator Orientation | Straight | |
| Contact DC Voltage | 12V dc | |
| Actuator Style | Button | |
| Mount Type | Through Hole | |
| Switch Contact Current | 50mA | |
| Switch Configuration | (On)-Off | |
| Maximum Operating Temperature | 60°C | |
| IP Rating | IP40 | |
| Standards/Approvals | RoHS | |
| Series | PTS | |
| Operating Force | 2N | |
| Height | 2mm | |
| Mechanical Life | 200000Cycles | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Terminal | ||
Switch Operation Momentary | ||
Actuator Colour Grey | ||
Length 7.5mm | ||
Width 6.2mm | ||
Illuminated No | ||
Minimum Operating Temperature -20°C | ||
Actuator Orientation Straight | ||
Contact DC Voltage 12V dc | ||
Actuator Style Button | ||
Mount Type Through Hole | ||
Switch Contact Current 50mA | ||
Switch Configuration (On)-Off | ||
Maximum Operating Temperature 60°C | ||
IP Rating IP40 | ||
Standards/Approvals RoHS | ||
Series PTS | ||
Operating Force 2N | ||
Height 2mm | ||
Mechanical Life 200000Cycles | ||
- COO (Country of Origin):
- CN
C&K PTS645 Series Tactile Switches
From C & K Switches, a range of straight and vertical termination SMT and THT tactile switches. The PTS645 series of switches are available with standard TOP actuation and various actuator lengths making them Ideal for applications where space is limited. Colour coded for easy identification of actuation force. The IP40 switches in the PTS645 family have a momentary function with SPST-NO contact arrangement.
Features and Benefits
• IP40
• 6 x 6 mm footprint
• Various actuator lengths
• Colour coded actuators for force identification
• Straight or vertical termination pins
Applications
• Industrial
• Consumer products
• Instrumentation
• Computers
Tactile
