MPN

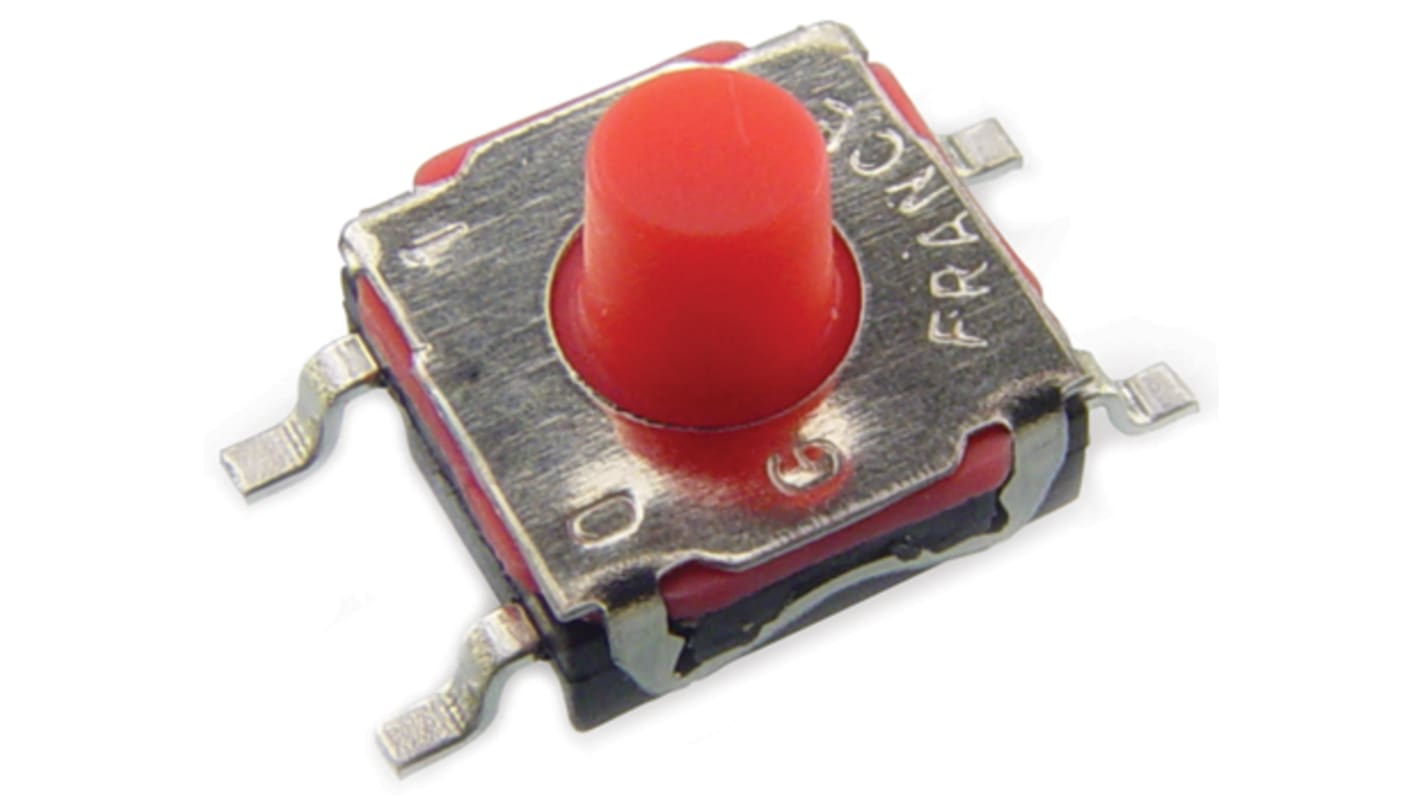

C & K IP67, IP67 Red Tactile Switch Button, SPST 50mA 32 V, Surface, Surface Mount

RS Stock No.:: 135-9074
Mfr. Part No.:: KSC4D2J 50SH LFS
Brand:: C & K

C & K IP67, IP67 Red Tactile Switch Button, SPST 50mA 32 V, Surface, Surface Mount

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 135-9074
Mfr. Part No.:: KSC4D2J 50SH LFS
Brand:: C & K

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	C & K
	Product Type	Tactile Switch
	Contact Configuration	SPST
	Terminal Type	J Bend
	Switch Operation	Momentary, Momentary
	Actuator Colour	Red
	Length	6.2mm
	Width	6.2mm
	Illuminated	No
	Actuator Style	Button
	Mount Type	Surface, Surface Mount
	Actuator Orientation	Straight
	Contact DC Voltage	32V
	Minimum Operating Temperature	-40°C
	Switch Contact Current	50mA
	Maximum Operating Temperature	85°C
	Switch Configuration	SPST
	Series	KSC
	Standards/Approvals	RoHS
	IP Rating	IP67, IP67
	Operating Force	2N, 2N
	Height	5.2mm
	Mechanical Life	300000Cycles

	Select all
	Brand C & K
	Product Type Tactile Switch
	Contact Configuration SPST
	Terminal Type J Bend
	Switch Operation Momentary, Momentary
	Actuator Colour Red
	Length 6.2mm
	Width 6.2mm
	Illuminated No
	Actuator Style Button
	Mount Type Surface, Surface Mount
	Actuator Orientation Straight
	Contact DC Voltage 32V
	Minimum Operating Temperature -40°C
	Switch Contact Current 50mA
	Maximum Operating Temperature 85°C
	Switch Configuration SPST
	Series KSC
	Standards/Approvals RoHS
	IP Rating IP67, IP67
	Operating Force 2N, 2N
	Height 5.2mm
	Mechanical Life 300000Cycles

C&K Tactile Switches Technical data sheet

COO (Country of Origin):: FR

C&K KSC4D Series Tactile Switches

From C & K Switches, a range of IP67 sealed detect TOP actuated switches for surface mounting. The KSC4D range of switches are 5.2 mm in height with a soft actuator, making them Ideal for printed circuit boards where space is limited. Switches in the KSC4D series have silver SPST-NO momentary contacts and either J bend or gullwing terminations. Available in various operating forces catering for a wide variety of applications.

Features and Benefits

• IP67 Sealed

• J bend or gullwing termination

• Silver contacts

• Soft actuator

Applications

• Automotive

• Mobile phones

• Industrial electronics

• Computer infrastructure

• IT

• Telecom and Network equipment

• Key fobs

Tactile
