onsemi RSL10-SIP-001GEVB, Bluetooth System On Chip SOC for Bluetooth
- RS Stock No.:
- 185-8166
- Mfr. Part No.:
- RSL10-SIP-001GEVB
- Brand:
- onsemi
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 185-8166
- Mfr. Part No.:
- RSL10-SIP-001GEVB
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Application | Bluetooth | |
| Technology | Bluetooth | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Application Bluetooth | ||
Technology Bluetooth | ||

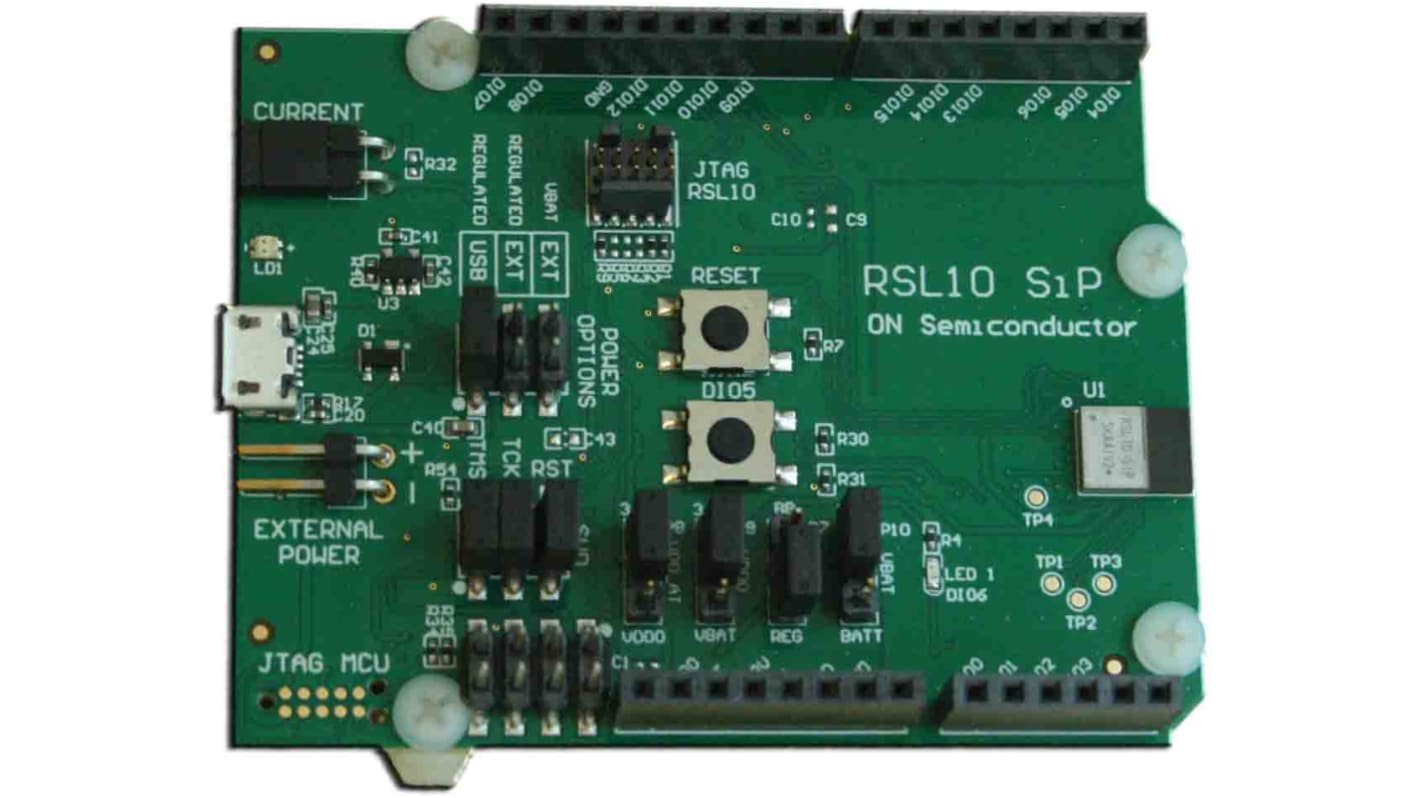

With an Arduino-compliant form factor and on-board J-Link adaptor, the RSl10 SIP development board is used to effortlessly develop Bluetooth® low energy applications based on the RSL10 System-in-Package (SiP).
Integrated antenna (included as part of the RSL10 SIP)
Onboard 4-bit level translator to translate the LPDSP32 debug interface at low voltage to a 3.3 V JTAG debugger
Access to all RSL10 SIP peripherals via standard 0.1" headers
Alternate on-board SWJ−DP (serial-wire and/or JTAG) interface for Arm® Cortex®−M3 processor debugging
On-board J-link adaptor provides a SWJ−DP (serial-wire and/or JTAG) interface that enables you to debug the board using a USB connection to the PC
Compliance with the Arduino form factor
Onboard 4-bit level translator to translate the LPDSP32 debug interface at low voltage to a 3.3 V JTAG debugger
Access to all RSL10 SIP peripherals via standard 0.1" headers
Alternate on-board SWJ−DP (serial-wire and/or JTAG) interface for Arm® Cortex®−M3 processor debugging
On-board J-link adaptor provides a SWJ−DP (serial-wire and/or JTAG) interface that enables you to debug the board using a USB connection to the PC
Compliance with the Arduino form factor
