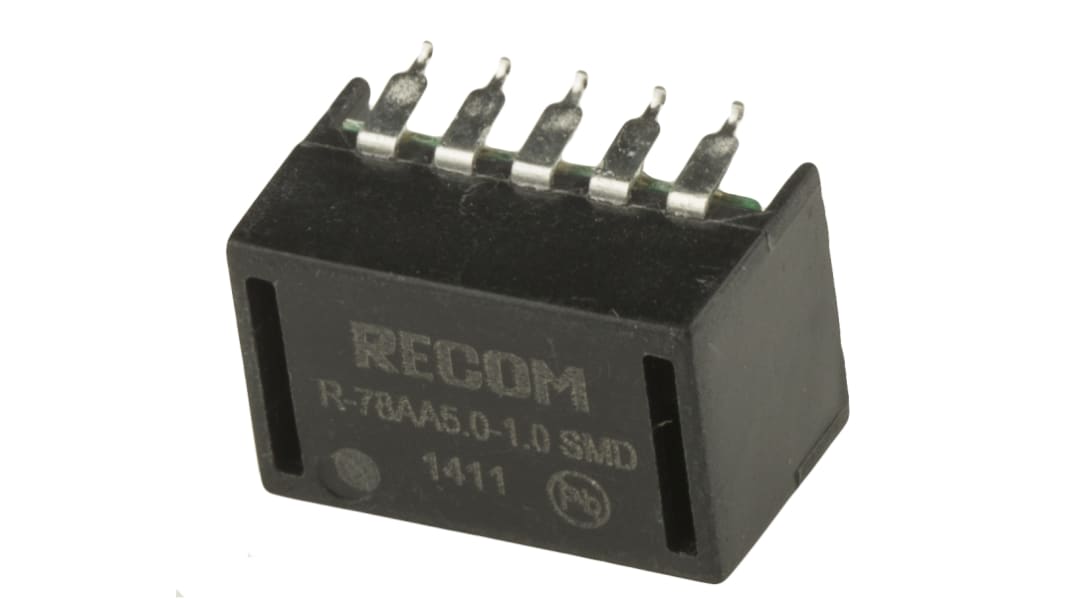

Recom Switching Regulator, Surface Mount, 5V dc Output Voltage, 6.5 → 18V dc Input Voltage, 1A Output Current, 1
- RS Stock No.:
- 706-3966
- Mfr. Part No.:
- R-78AA5.0-1.0SMD
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£8.70
(exc. VAT)
£10.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £8.70 |
5 - 9 | £8.45 |
10 - 24 | £8.19 |
25 - 49 | £7.93 |
50 + | £7.66 |
*price indicative
- RS Stock No.:
- 706-3966
- Mfr. Part No.:
- R-78AA5.0-1.0SMD
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 5V dc | |
Output Current | 1A | |
Input Voltage | 6.5 → 18V dc | |
Mounting Type | Surface Mount | |
Number of Outputs | 1 | |
Package | DIP | |
Ripple And Noise | 20mV Pk-Pk | |
Maximum Temperature | +85°C | |
Minimum Temperature | -40°C | |
Series | R-78AA-1.0 | |
Line Regulation | 0.2% | |
Load Regulation | 0.7% | |
Weight | 1.7g | |
Protection Features | Short Circuit Protection | |
Depth | 8.8mm | |
Standards Met | REACH Compliant | |
MTBF | 21070000h | |
Length | 15.3mm | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Output Current 1A | ||
Input Voltage 6.5 → 18V dc | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Package DIP | ||
Ripple And Noise 20mV Pk-Pk | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Series R-78AA-1.0 | ||
Line Regulation 0.2% | ||
Load Regulation 0.7% | ||
Weight 1.7g | ||
Protection Features Short Circuit Protection | ||
Depth 8.8mm | ||
Standards Met REACH Compliant | ||
MTBF 21070000h | ||
Length 15.3mm | ||
- COO (Country of Origin):
- TW
R-78AAxx-1.0SMD Series
Replacement for R-78Axx-1.0SMD series
Non-isolated
High efficiency switching regulators
Adjustable output voltage
Continuous short circuit protection
Thermal shutdown
Remote On/Off control
Very low shutdown current
SMD 10 pin package
Non-isolated
High efficiency switching regulators
Adjustable output voltage
Continuous short circuit protection
Thermal shutdown
Remote On/Off control
Very low shutdown current
SMD 10 pin package
Note
Derate output when operating temperature above +60°C.
MTBF to MIL-HDBK 217F (+25°C).
MTBF to MIL-HDBK 217F (+25°C).
Standards
EN-60950-1
RECOM Switching Regulator, 94% Efficiency, DIP Package - R-78AA-1.0 Series - R-78AA5.0-1.0SMD
Get the right level of power when and where you need it with this switching regulator from RECOM. It's designed to take an input voltage of between 6.5 and 18V DC and step it down to a smooth-and-steady output voltage of 5V DC. This makes it suitable for powering small, low-voltage appliances. As it comes in a surface-mounting 10-pin package, installing it onto your PCB takes just a jiffy.
• Remote on/off for easy control at a distance
• Compact dimensions of 9.6 (W) x 15.3 (L) x 8.8mm (D) for use where space is at a premium
• 94% efficiency cuts out heat build-up
• Mean time between failures of over 21 million hours means you can rest assured of reliable long-term performance
• Weight of 1.7g doesn't put unnecessary strain on your circuit board
• Compact dimensions of 9.6 (W) x 15.3 (L) x 8.8mm (D) for use where space is at a premium
• 94% efficiency cuts out heat build-up
• Mean time between failures of over 21 million hours means you can rest assured of reliable long-term performance
• Weight of 1.7g doesn't put unnecessary strain on your circuit board
Applications
• Consumer electronics
• Automotive production
• Industrial automation
• Automotive production
• Industrial automation
Can I use this switching regulator in extreme industrial environments?
Yes, it has a broad operating temperature range between -40°C and +85°C, so you can use it in challenging conditions.
Does this product offer any protection against overcurrents?
Yes, it features continuous short-circuit protection, so it stops hazards in their tracks before downstream equipment can be damaged.
