Recom Switching Power Supply, RACM65-24S, 24V dc, 2.71A, 0.15W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 903-9931
- Mfr. Part No.:
- RACM65-24S
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£96.44
(exc. VAT)
£115.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £96.44 |
| 5 - 9 | £93.54 |
| 10 - 24 | £90.65 |
| 25 - 49 | £87.75 |
| 50 + | £84.86 |
*price indicative
- RS Stock No.:
- 903-9931
- Mfr. Part No.:
- RACM65-24S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 24V dc | |
| Output Current | 2.71A | |
| Power Rating | 0.15W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 91.4mm | |
| Width | 60.5mm | |
| Medical Approved | Yes | |
| Depth | 33.3mm | |
| Series | RACM65 | |
| Efficiency | 93.5% | |
| Weight | 172g | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 24V dc | ||
Output Current 2.71A | ||
Power Rating 0.15W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 91.4mm | ||
Width 60.5mm | ||
Medical Approved Yes | ||
Depth 33.3mm | ||
Series RACM65 | ||
Efficiency 93.5% | ||
Weight 172g | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW

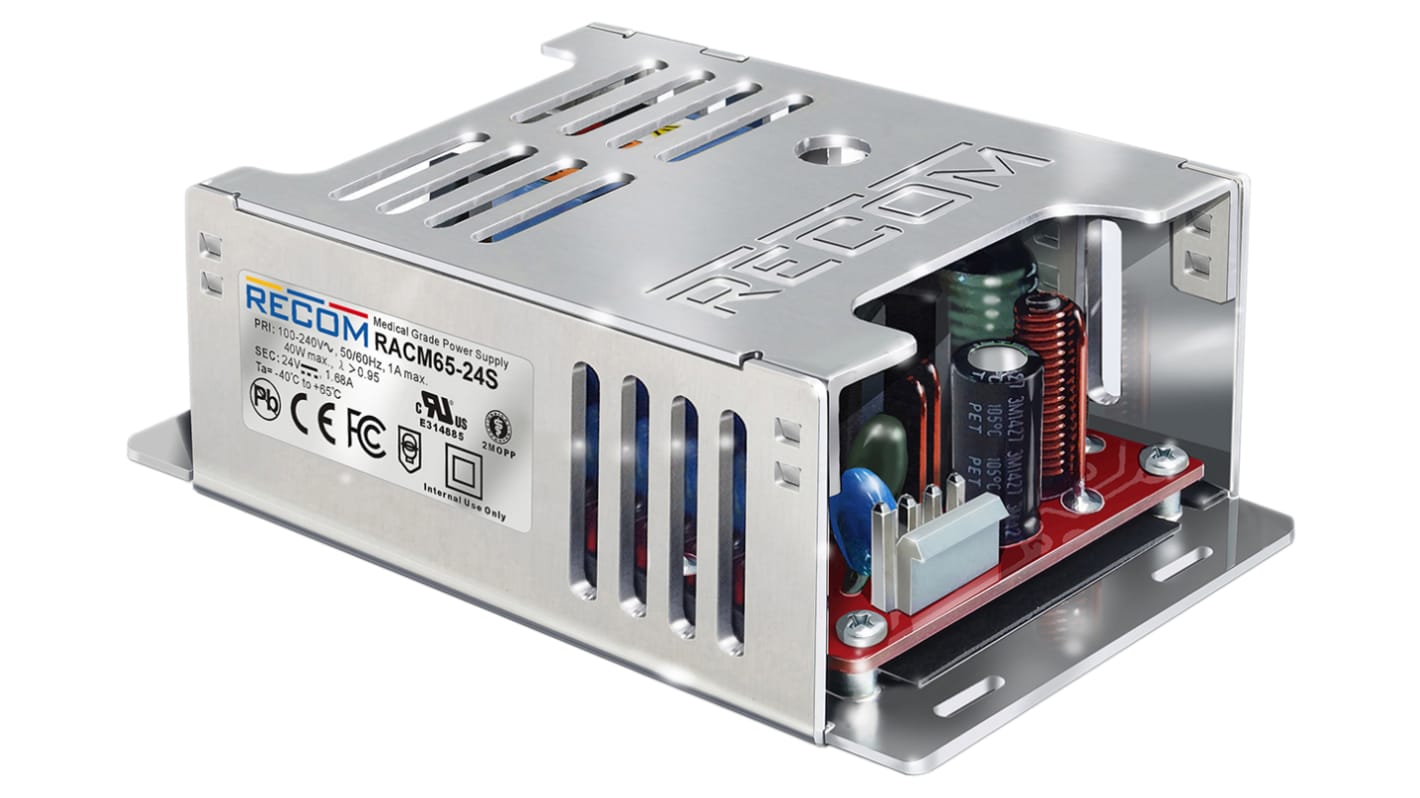

RECOM RACM65 65W Enclosed Case Style Single Output AC/DC Converters
The RACM65 is a compact 3.6x2.38 in. high efficiency AC/DC power supply with 2xMOPP safety approval for medical applications. These space saving enclosed power supplies have a universal input voltage range (85-264VAC), 4kVAC isolation, require no minimum load and can be used at ambient temperatures of between -40°C and +85°C. The 12V, 15V, 24V or 48V output voltages are fully protected and have tolerances of less than ±0.2% over the entire input voltage range and less than ±0.5% over the entire load range. The RACM65 series is certified to medical safety standard IEC/ES/EN-60601-1 3rd Edition and feature BF rated outputs with less than 75μA leakage current. It has a built-in Class B EMI filter and comes with a 5 year warranty.
2MOPP Safety approval for medical applications
Suitable for built in Class II applications
Wide Input Voltage Range (85-264VAC)
Low leakage current (<75μA)
5000m Operation
-40°C to +85°C Operating temperature
Connector set available
Suitable for built in Class II applications
Wide Input Voltage Range (85-264VAC)
Low leakage current (<75μA)
5000m Operation
-40°C to +85°C Operating temperature
Connector set available
Approvals
Certified to medical safety standard IEC/ES/EN-60601-1 3rd Edition
2MOPP Safety approval for medical applications
2MOPP Safety approval for medical applications
RECOM Switching Power Supply, 85 to 264V AC Input Voltage, Medical Approved - RACM65 Series - RACM65-24S
Make the changeover from AC to DC voltage efficient with this switching power supply from RECOM. It's a versatile component that doesn't restrict you to a minimum load and its single output delivers 24V DC, so it's ideal for low-power applications. The 2 x MOPP safety standard tells you the device is double insulated, so it's not a shock that it's certified for medical use. For uninterrupted use, it comes with a built-in class B EMI filter that prevents electromagnetic disturbance to minimise murmurs in your workplace.
• Light 172g weight doesn't add unnecessary strain to your setup
• Compact dimensions of 91.4 (L) x 60.5 (W) x 33.3mm (D) mean it's a space-efficient choice
• Less than 75μA leakage current, for low energy wastage
• Wide input voltage between 85 and 264V AC for easy compatibility with power sources
• One second maximum start-up time gets your operations going quickly
• Compact dimensions of 91.4 (L) x 60.5 (W) x 33.3mm (D) mean it's a space-efficient choice
• Less than 75μA leakage current, for low energy wastage
• Wide input voltage between 85 and 264V AC for easy compatibility with power sources
• One second maximum start-up time gets your operations going quickly
Applications
• Medical power supplies
• Industrial control
• Communications equipment
• Industrial control
• Communications equipment
Can I use this unit in harsh conditions?
Yes. This unit has a broad operating range between -40°C and +85°C, so it's suitable for use in extreme environments.
