TRACOPOWER Switching Power Supply, TIW 24-112, 12V dc, 2A, 24W, 1 Output, 90 → 264 V ac, 90 → 370 V dc
- RS Stock No.:
- 801-9443
- Distrelec Article No.:
- 110-50-191
- Mfr. Part No.:
- TIW 24-112
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£48.63
(exc. VAT)
£58.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 51 unit(s) ready to ship
- Plus 91 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.63 |
| 5 - 9 | £47.18 |
| 10 - 24 | £45.71 |
| 25 - 49 | £43.77 |
| 50 + | £41.82 |
*price indicative
- RS Stock No.:
- 801-9443
- Distrelec Article No.:
- 110-50-191
- Mfr. Part No.:
- TIW 24-112
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Output Current | 2A | |
| Power Rating | 24W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264 V ac, 90 → 370 V dc | |
| Mounting Type | Chassis Mount | |
| Package Type | Encapsulated | |
| Length | 56mm | |
| Width | 32mm | |
| Medical Approved | No | |
| Embedded | No | |
| Depth | 52mm | |
| Series | TIW 24 | |
| Efficiency | 83% | |
| Minimum Temperature | -25°C | |
| Weight | 100g | |
| Maximum Temperature | +50°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Output Current 2A | ||
Power Rating 24W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264 V ac, 90 → 370 V dc | ||
Mounting Type Chassis Mount | ||
Package Type Encapsulated | ||
Length 56mm | ||
Width 32mm | ||
Medical Approved No | ||
Embedded No | ||
Depth 52mm | ||
Series TIW 24 | ||
Efficiency 83% | ||
Minimum Temperature -25°C | ||
Weight 100g | ||
Maximum Temperature +50°C | ||
- COO (Country of Origin):
- CN

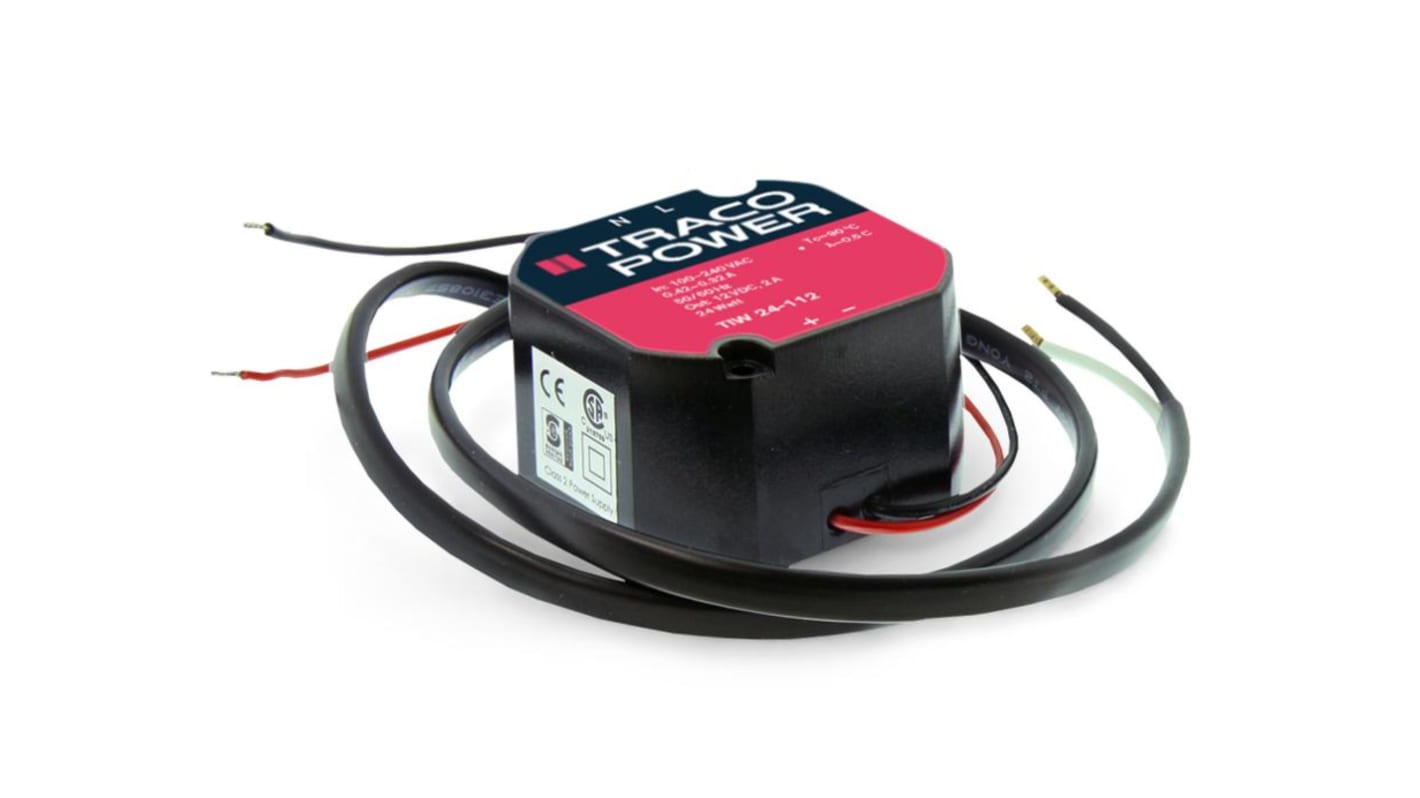

Traco Power Switching Power Supply, 83% Efficiency, Wall Mounting - TIW series - TIW 24-112
Got a mismatch between your energy source and your devices? Smooth things out with this switching power supply from Traco Power. It converts an input voltage between 93 and 264V AC into a steady output of 12V DC. Thanks to a high efficiency rating of 83%, the unit helps conserve electricity and prevent troublesome heat build-ups. Integral overload and short circuit protections make it a safe choice that cuts the risk of damage to downstream equipment. For added convenience, this device is wall-mounted so it saves space in your workplace.
Features & Benefits
• Compact dimensions of 48 (L) x 52 (W) x 23.6 (D) mean it's handy in tight spots
• 24W power rating so it's suitable for low-energy and medium-energy devices
• IP67 rating means it's protected against dust and high-pressure jets of water
• Operating temperature range between -25°C and +50°C for use in harsh conditions
• 24W power rating so it's suitable for low-energy and medium-energy devices
• IP67 rating means it's protected against dust and high-pressure jets of water
• Operating temperature range between -25°C and +50°C for use in harsh conditions
Applications
• Industrial automation equipment
• Office infrastructure
• Security systems
• Office infrastructure
• Security systems
How much does this switching power supply weigh?
It weighs just 80g, which means it's easy to handle during installation and places minimal strain on your system.
