TRACOPOWER Switching Power Supply, TIW 06-105, 5V dc, 1A, 5W, 1 Output, 90 → 264 V ac, 130 → 375 V dc
- RS Stock No.:
- 706-5940
- Distrelec Article No.:
- 169-60-855
- Mfr. Part No.:
- TIW 06-105
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£32.63
(exc. VAT)
£39.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 126 unit(s) ready to ship
- Plus 106 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £32.63 |
5 - 9 | £31.65 |
10 - 24 | £30.67 |
25 - 49 | £29.37 |
50 + | £28.07 |
*price indicative
- RS Stock No.:
- 706-5940
- Distrelec Article No.:
- 169-60-855
- Mfr. Part No.:
- TIW 06-105
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 5V dc | |
Output Current | 1A | |
Power Rating | 5W | |
Number of Outputs | 1 | |
Input Voltage | 90 → 264 V ac, 130 → 375 V dc | |
Mounting Type | Chassis Mount | |
Package Type | Encapsulated | |
Length | 50.2mm | |
Width | 23.6mm | |
Medical Approved | No | |
Depth | 48mm | |
Efficiency | 76% | |
Series | TIW 06 | |
Maximum Temperature | +50°C | |
Weight | 80g | |
Minimum Temperature | -25°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Output Current 1A | ||
Power Rating 5W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264 V ac, 130 → 375 V dc | ||
Mounting Type Chassis Mount | ||
Package Type Encapsulated | ||
Length 50.2mm | ||
Width 23.6mm | ||
Medical Approved No | ||
Depth 48mm | ||
Efficiency 76% | ||
Series TIW 06 | ||
Maximum Temperature +50°C | ||
Weight 80g | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- CN

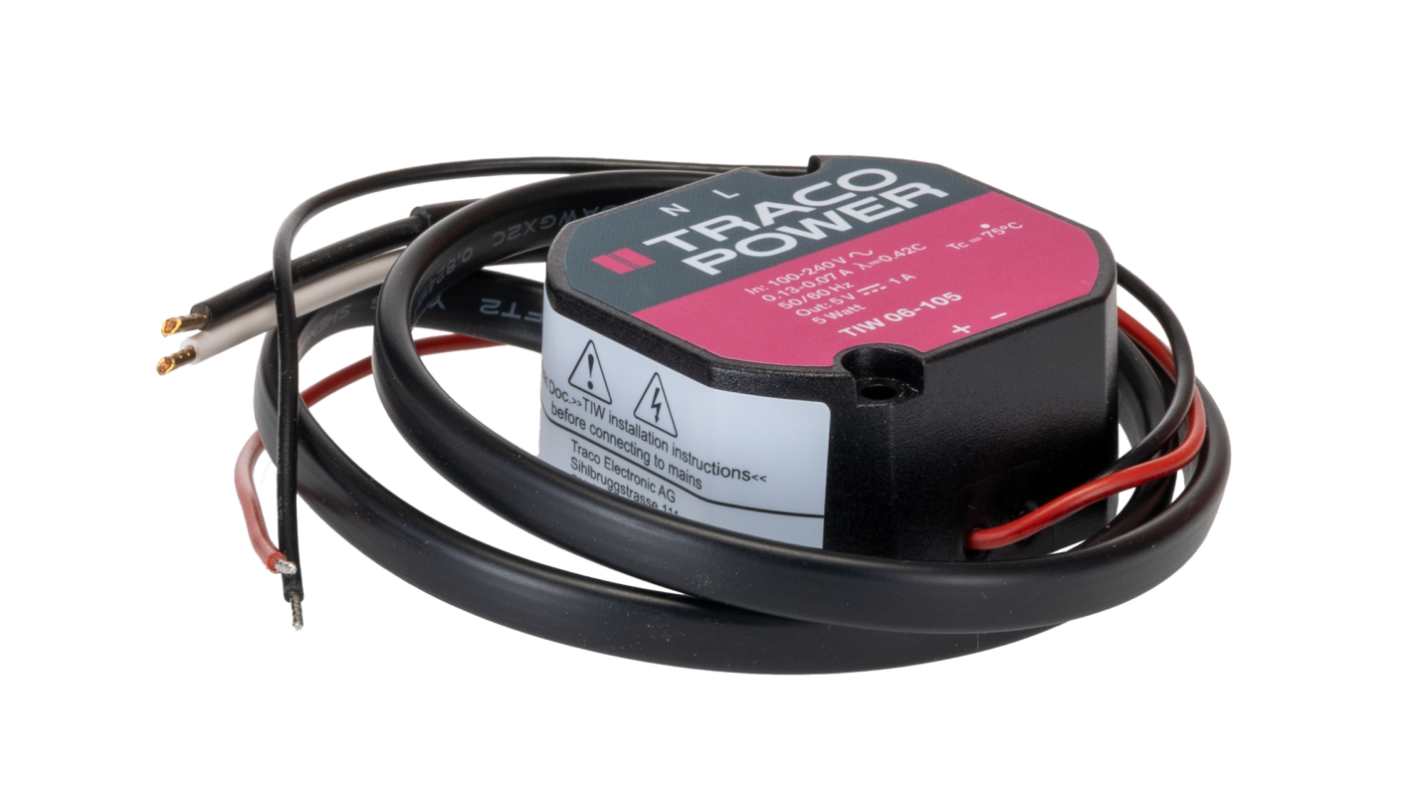

Traco Power Switching Power Supply, Plastic Housing, 80g Weight - TIW Series - TIW 06-105
Seeking safe energy for your electrical appliances? Choose this switching power supply from Traco Power. It steps down AC voltages from 90 to 264V and DC voltages between 130 to 375V to deliver a stable 5V DC output for sensitive components like LEDs and sensors. The unit's plastic housing resists impact and wear, so it's a tough choice for rugged industrial settings. An IP67 rating means it's waterproof and shielded from dust. As this power supply tips the scales at just 80g, it won't put much strain on your panel.
Features & Benefits
• Efficiency of 76% means it makes the most of its energy supply for increased productivity
• Continuous short-circuit protection with automatic recovery to protect against electrical hazards
• Natural convection cooling eliminates the need for a heat sink
• Mounts into a standard flush box, so it's space-efficient
• Continuous short-circuit protection with automatic recovery to protect against electrical hazards
• Natural convection cooling eliminates the need for a heat sink
• Mounts into a standard flush box, so it's space-efficient
Applications
• Robotics and automation systems
• Security and surveillance equipment
• Consumer electronics
• Security and surveillance equipment
• Consumer electronics
Can I use this device in hot temperatures?
Yes, it operates in temperatures between -25°C and +50°C, so you can count on it in challenging settings.
