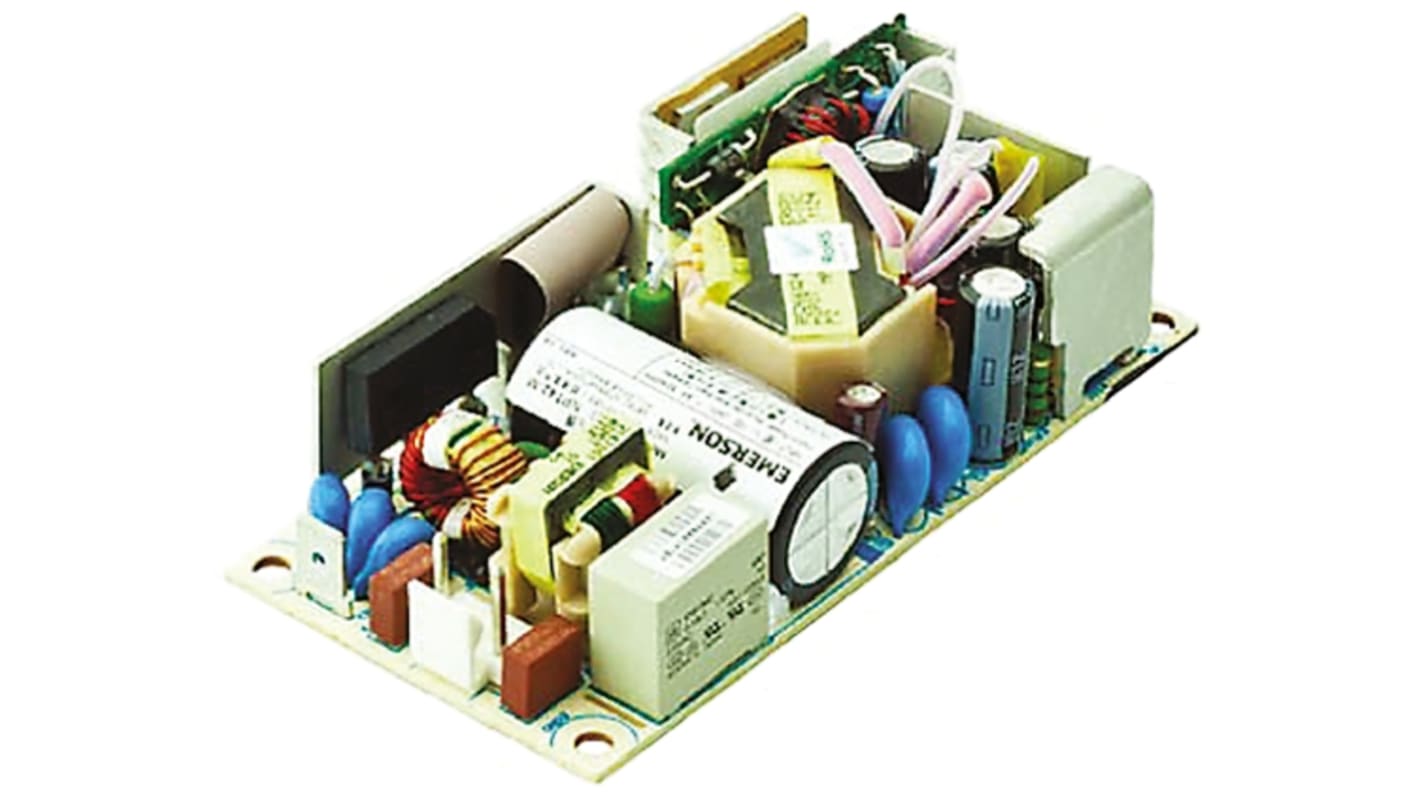

Switch mode triple output AC/DC embedded power supplies with a low safety ground leakage current and medical and ITE approval. These switch mode AC/DC power supplies have a universal AC input, triple output voltage, a built in EMI filter and dual AC fuses . The footprint for these AC/DC power supplies is 2" x 4" with a height of less than 1U. Suitable applications for these embedded AC/DC power supplies include information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

Worldwide IT equipment (ITE) approval
Class I approved , Class II approved (with Class A EMI)
Universal AC input
Overload and overvoltage protection
Built in EMI filter (CISPR 22 Class B)
Safety ground leakage current of 275ua @ 50/60 Hz; 264 VAC input
EMI compliance: FCC Class B conducted; CISPR 22 Class B conducted; EN55022 Class B conducted, VDE0878PT3 Class B conducted
Harmonic Current compliance: EN61000-3-2

Mating connectors for AC input connectors see stock numbers 173-3076 and 679-4723. For DC output connectors see stock numbers 173-3105 and 679-4723
Derate output at 2.5% per degree from 50° to 80°C

TUV: 60950, 60601-1, 3rd edition, UL: 60950, 60601-1, CSA: 60950, 60601-1, CB: Certificate and report 3rd edition, CE: Mark (LVD), CQC: Mark

UL, TUV, CB, CCC
