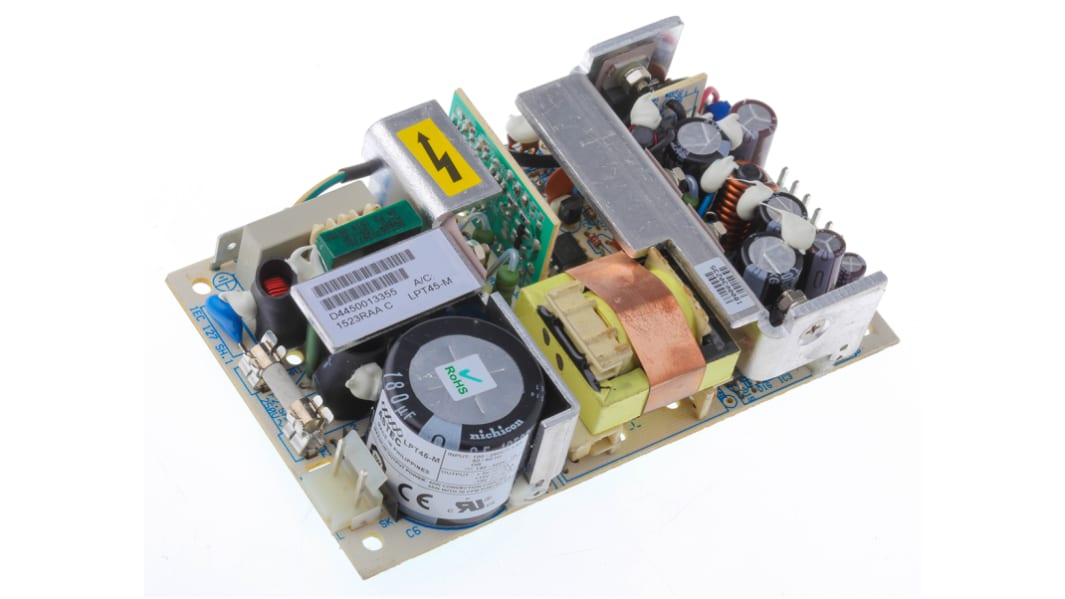

Artesyn Embedded Technologies Switching Power Supply, LPT45-M, 5 V dc, ±15 V dc, 2.5 A, 5 A, 700 mA, 40W, Triple

RS Stock No.:: 455-7702
Mfr. Part No.:: LPT45-M
Brand:: Artesyn Embedded Technologies

Artesyn Embedded Technologies Switching Power Supply, LPT45-M, 5 V dc, ±15 V dc, 2.5 A, 5 A, 700 mA, 40W, Triple

82 In stock - FREE next working day delivery available

Added

Price Each

£72.57

(exc. VAT)

£87.08

(inc. VAT)

Units	Per unit
1 - 4	£72.57
5 - 9	£69.66
10 - 24	£67.49
25 - 49	£63.86
50 +	£59.50

RS Stock No.:: 455-7702
Mfr. Part No.:: LPT45-M
Brand:: Artesyn Embedded Technologies

Technical Reference

Legislation and Compliance

COO (Country of Origin):: PH

Product Details

40W to 60W Medically Approved, Single/Triple Output

In-built EMI filter (Class B)
Overload and overvoltage protection
Medical safety approvals
Remote sense on main output
Adjustable output option

Note

Total of output loads must not exceed rating of unit. Figures in brackets indicate overall size with cover.

Standards

VDE0750/EN60601-1, UL2901, CSA 22.2 NO 601.1

Approvals

VDE 0750 / EN60601-1; UL2601; CSA 22.2 No 601.1

Specifications

Attribute	Value
Output Voltage	5 V dc, ±15 V dc
Output Current	2.5 A, 5 A, 700 mA
Power Rating	40W
Number of Outputs	3
Input Voltage	120 → 300 V dc, 85 → 264 V ac
Mounting Type	Chassis Mount
Package Type	Open Frame
Length	127mm
Width	76.2mm
Medical Approved	Yes
Depth	29mm
Minimum Temperature	0°C
Weight	230g
Maximum Temperature	+50°C
