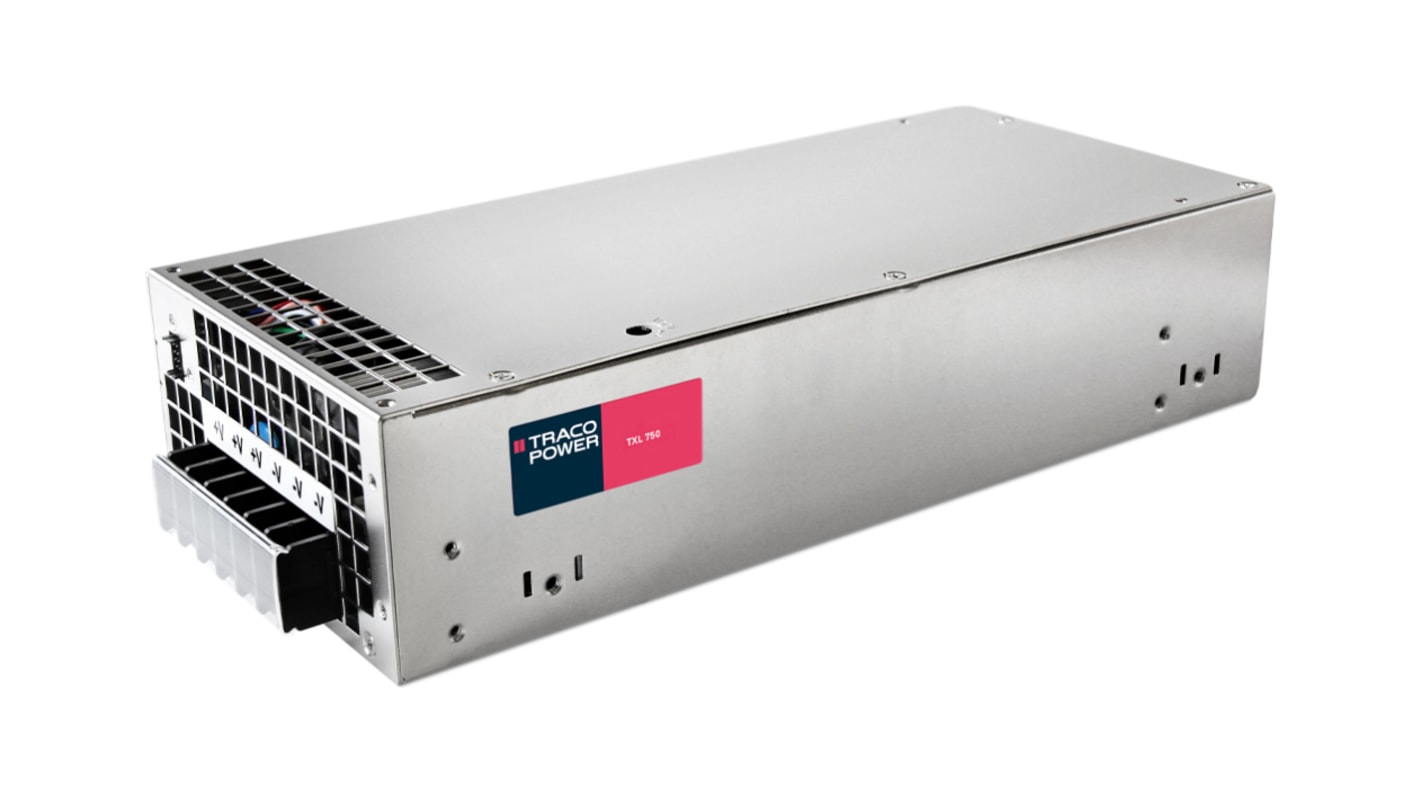

TRACOPOWER Switching Power Supply, TXL 750-48S, 48V dc, 15.6A, 758W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 745-1275
- Mfr. Part No.:
- TXL 750-48S
- Brand:
- TRACOPOWER
29 In stock - FREE next working day delivery available
12 available from Europe for delivery within 1 working day(s).
Added
Price Each
£272.90
(exc. VAT)
£327.48
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £272.90 |
| 5 - 9 | £264.71 |
| 10 - 24 | £256.53 |
| 25 - 49 | £245.61 |
| 50 + | £234.69 |
- RS Stock No.:
- 745-1275
- Mfr. Part No.:
- TXL 750-48S
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
TRACOPOWER Switch Mode Power Supply
The TRACOPOWER TXL series 758W rated switch mode power supply with a single output has the output current rating of 15.8A at 48VDC. It has the universal input supply voltage ratings from 90VAC to 264VAC and 127VDC to 375VDC. It has a low profile metal case and a screw terminal block connection they are easy to install in any equipment. The power supply complies with the European EMC standards and the low voltage directive (LVD).
Note:
De-rating 2% per °C above 45°C (2.5% per °C for TXL220 types)
TXL 120 series is not recommended for new designs, please refer to the TXL 100 series for the suitable alternatives
Caution:
Total power must not exceed specified maximum output power for multi-output models.
Note:
De-rating 2% per °C above 45°C (2.5% per °C for TXL220 types)
TXL 120 series is not recommended for new designs, please refer to the TXL 100 series for the suitable alternatives
Caution:
Total power must not exceed specified maximum output power for multi-output models.
Features and Benefits
Compact design
Easy installation
Efficiency is 90%
Metal case
Overvoltage protection
Short circuit protection
Wide range universal input
Easy installation
Efficiency is 90%
Metal case
Overvoltage protection
Short circuit protection
Wide range universal input
Certifications
CB certified
EN 60950-1 2nd edition
IEC 60950-1
UL 60950-1
UL approved
EN 60950-1 2nd edition
IEC 60950-1
UL 60950-1
UL approved
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 48V dc |
| Output Current | 15.6A |
| Power Rating | 758W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 275mm |
| Width | 125mm |
| Depth | 63mm |
| Efficiency | 70 → 84% |
| Maximum Temperature | +70°C |
| Weight | 3.5kg |
| Minimum Temperature | -10°C |
