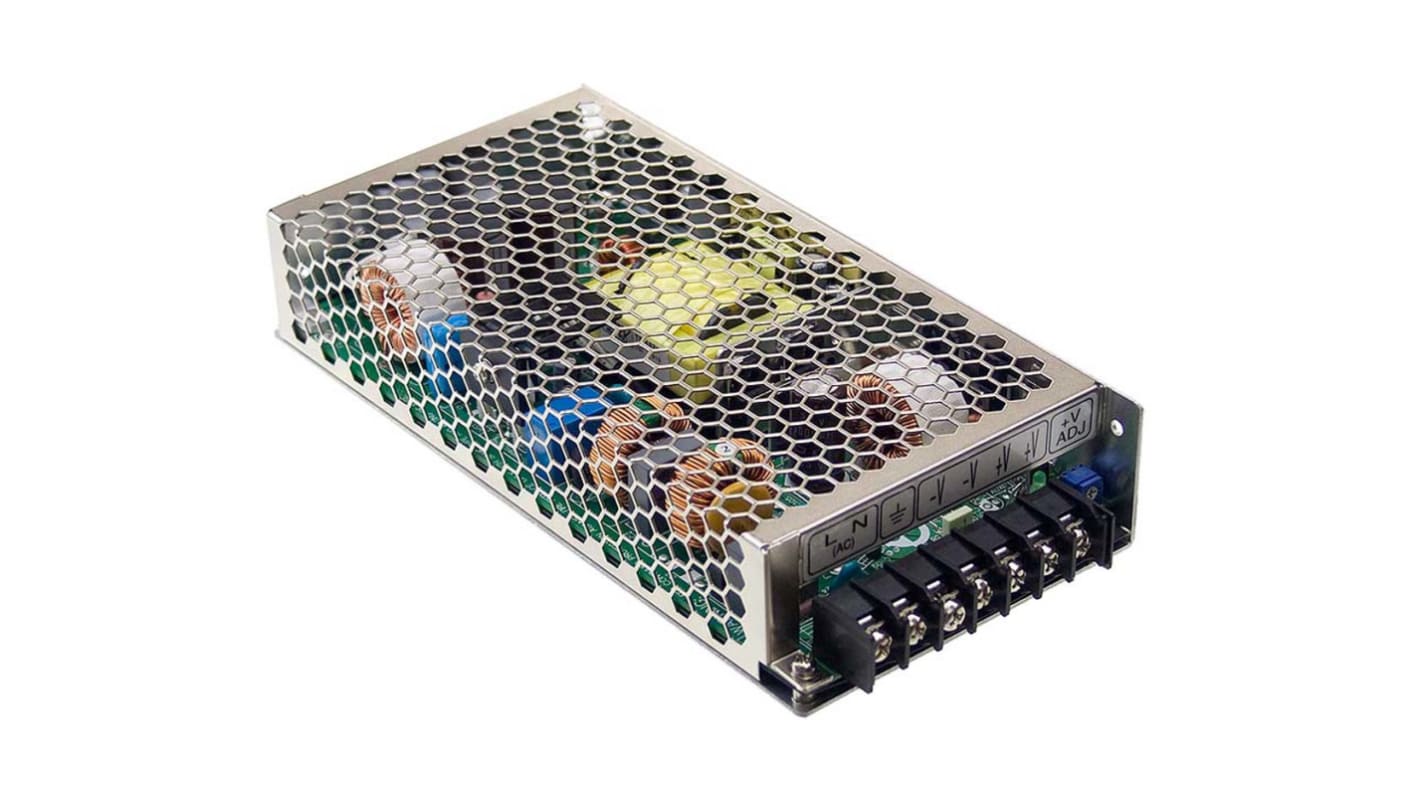

MEAN WELL Embedded Switch Mode Power Supply SMPS, HRPG-200-48RS, 48V dc, 4.3A, 206W, 1 Output, 120 → 370 V dc,
- RS Stock No.:
- 721-1692
- Mfr. Part No.:
- HRPG-200-48RS
- Brand:
- MEAN WELL
Available to back order for despatch when stock is available
Price Each
£74.06
(exc. VAT)
£88.87
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £74.06 |
5 - 9 | £72.21 |
10 - 24 | £70.36 |
25 - 49 | £68.51 |
50 + | £62.95 |
- RS Stock No.:
- 721-1692
- Mfr. Part No.:
- HRPG-200-48RS
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
HRPG-200 Series Single Output Power Supply with PFC Function
High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
No load power consumption <0.5W
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in remote ON-OFF control
Short circuit, over load, over voltage and over temperature protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
Note
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Standards
UL60950-1, TUV EN60950-1
Approvals
UL/cUL recognised, TUV, CB
Specifications
Attribute | Value |
---|---|
Output Voltage | 48V dc |
Output Current | 4.3A |
Power Rating | 206W |
Number of Outputs | 1 |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 199mm |
Width | 98mm |
Depth | 38mm |
Efficiency | 89% |
Minimum Temperature | -40°C |
Maximum Temperature | +70°C |
Weight | 770g |
