- RS Stock No.:
- 249-9854
- Mfr. Part No.:
- TPP 300-136-M
- Brand:
- TRACOPOWER
Available to back order for despatch 23/12/2024
Price Each
£140.69
(exc. VAT)
£168.83
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £140.69 |
5 - 9 | £136.47 |
10 - 24 | £132.25 |
25 - 49 | £126.62 |
50 + | £120.99 |
- RS Stock No.:
- 249-9854
- Mfr. Part No.:
- TPP 300-136-M
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details

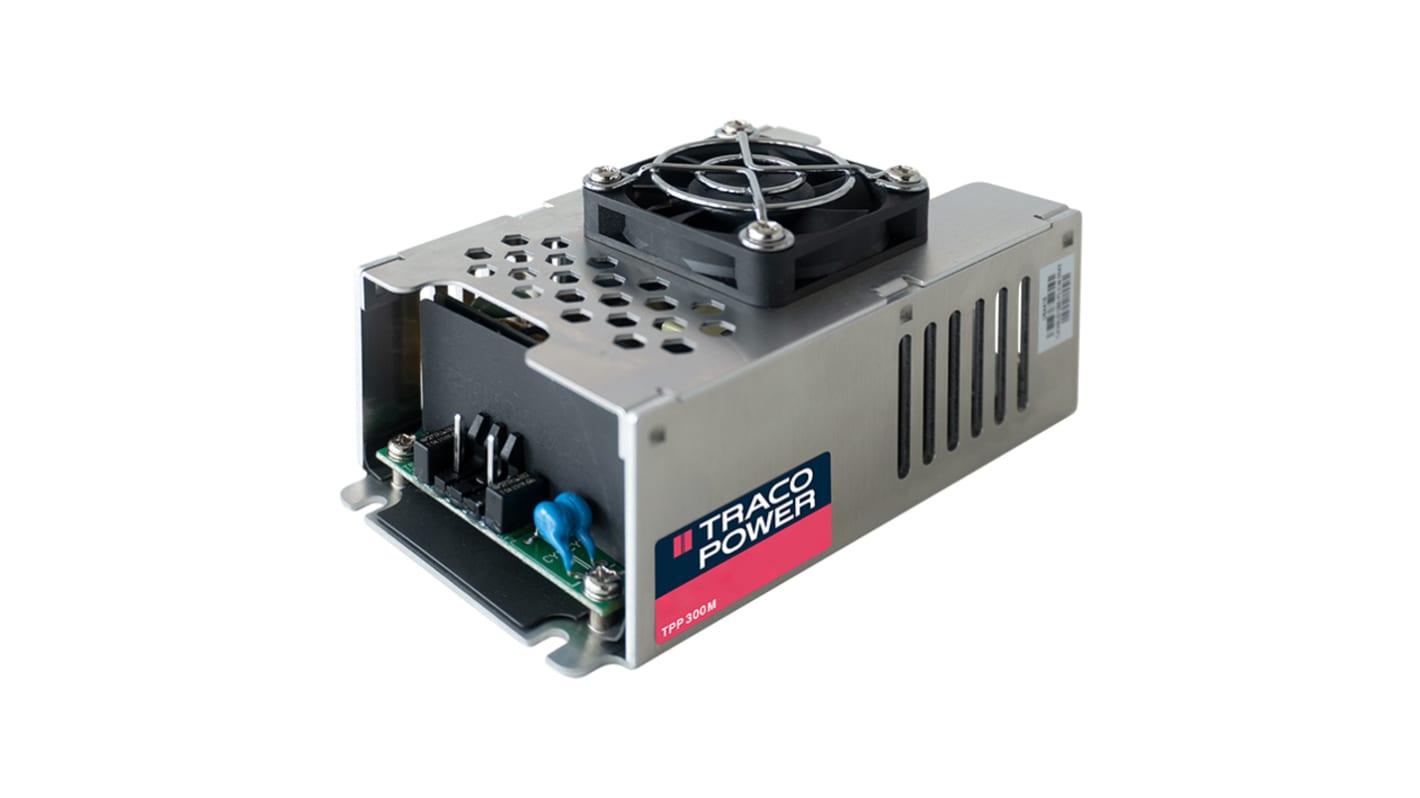

The Traco TPP 300-M series is a set of AC/DC power supplies in an encased package style. They feature a reinforced double I/O isolation (3000 VAC) system according to latest medical safety standards. The TPP 300-M series also has a low leakage current of <100 μA which makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 93% allows a high power-density and compact design (4.6 x 2.44).
High power-density 300 Watt in 4.6x2.44 package (encased) I/O isolation 3000 VAC rated for 250 VAC working voltage Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP Risk management process according to ISO 14971 incl. risk management file Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3 Peak power operation up to 360 Watt for 5s Operating temperature –40°C to 80°C Active power factor correction >0.9 Operating up to 5000m altitude 5-year product warranty
Specifications
Attribute | Value |
---|---|
Output Voltage | 36V dc |
Output Current | 8.33A |
Power Rating | 300W |
Number of Outputs | 1 |
Input Voltage | 85 → 264V ac |
Package Type | Open Frame |
Embedded | No |
Series | TPP 300-M |
