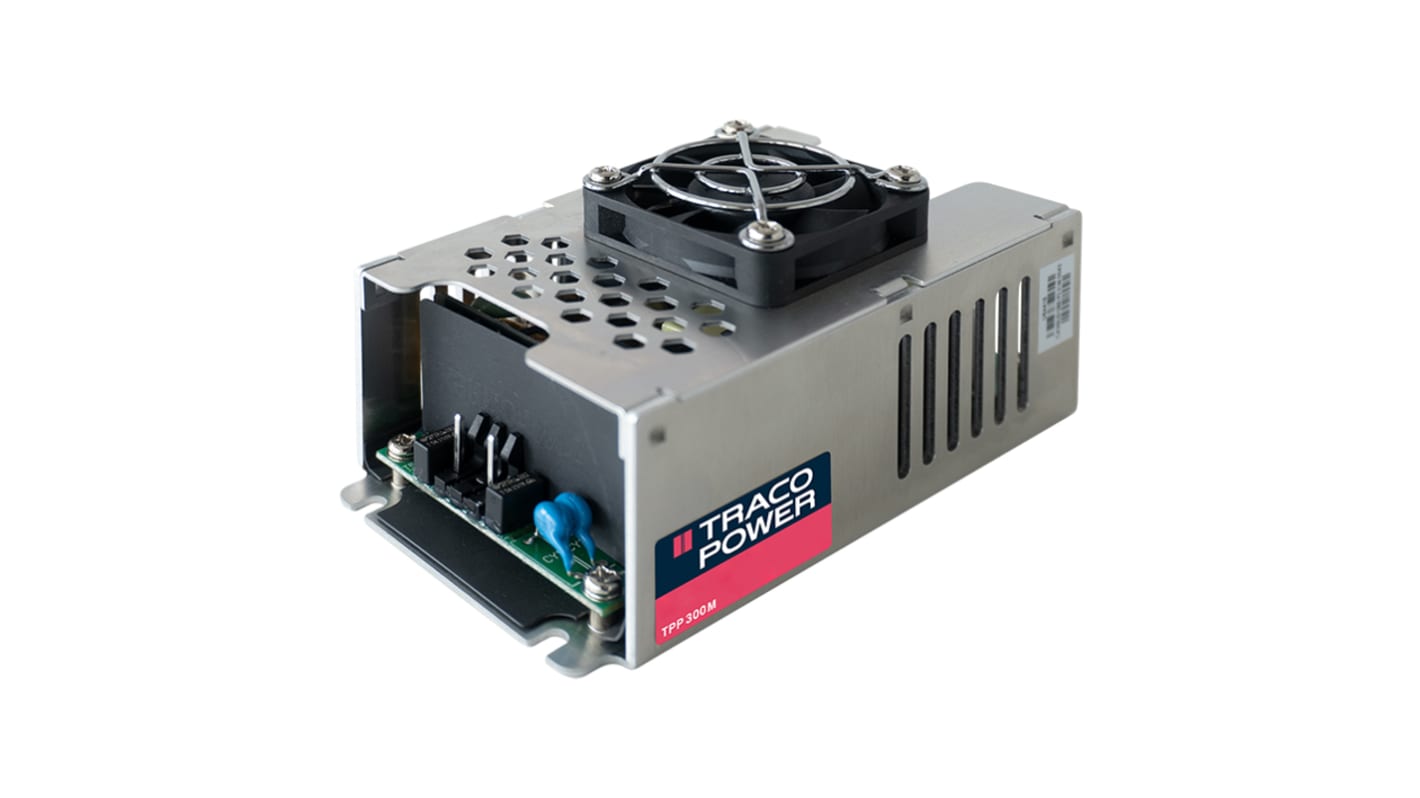

TRACOPOWER Power Supply, TPP 300-153-M, 53V dc, 5.67A, 300W, 1 Output, 85 → 264V ac Input Voltage

The Traco TPP 300-M series is a set of AC/DC power supplies in an encased package style. They feature a reinforced double I/O isolation (3000 VAC) system according to latest medical safety standards. The TPP 300-M series also has a low leakage current of <100 μA which makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 93% allows a high power-density and compact design (4.6” x 2.44”).

High power-density 300 Watt in 4.6”x2.44” package (encased) I/O isolation 3000 VAC rated for 250 VAC working voltage Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP Risk management process according to ISO 14971 incl. risk management file Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3 Peak power operation up to 360 Watt for 5s Operating temperature –40°C to 80°C Active power factor correction >0.9 Operating up to 5000m altitude 5-year product warranty
