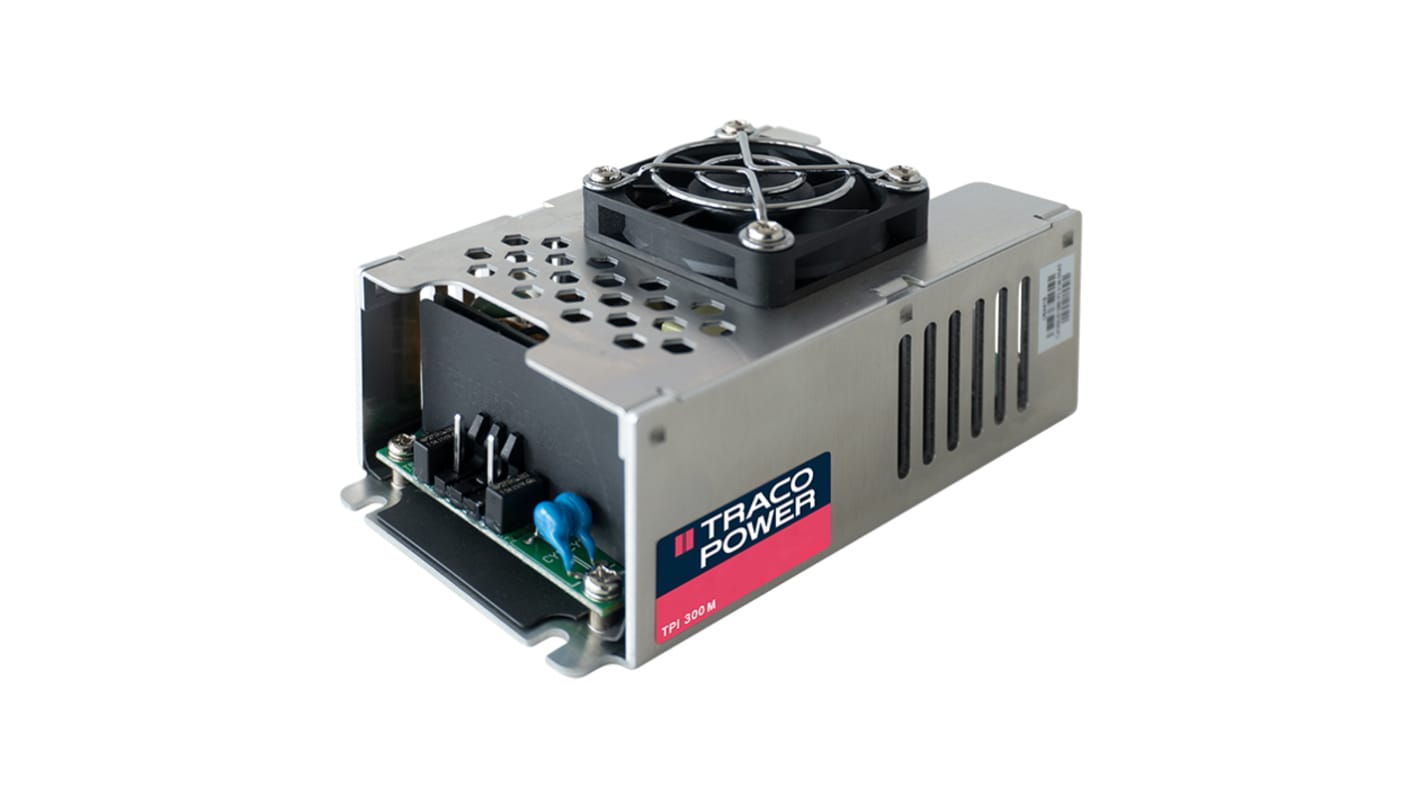

TRACOPOWER Power Supply, TPI 300-136-M, 36V dc, 8.33A, 300W, 1 Output, 85 → 264V ac Input Voltage

The Traco TPI 300-M series is a set of AC/DC power supplies in an encased package style. They feature a reinforced double I/O isolation (3000 VAC) system according to latest industrial safety standards. The excellent efficiency of up to 93% allows a high power-density and compact design (4.6” x 2.44”).

High power-density 300 Watt in 4.6”x2.44” package (encased) I/O isolation 3000 VAC rated for 250 VAC working voltage Certification according to IEC/EN/UL 62368-1 Peak power operation up to 360 Watt for 5s Operating temperature –40°C to 80°C Active power factor correction >0.9 Operating up to 5000m altitude High efficiency up to 93% Protection class II prepared 3-year product warranty
