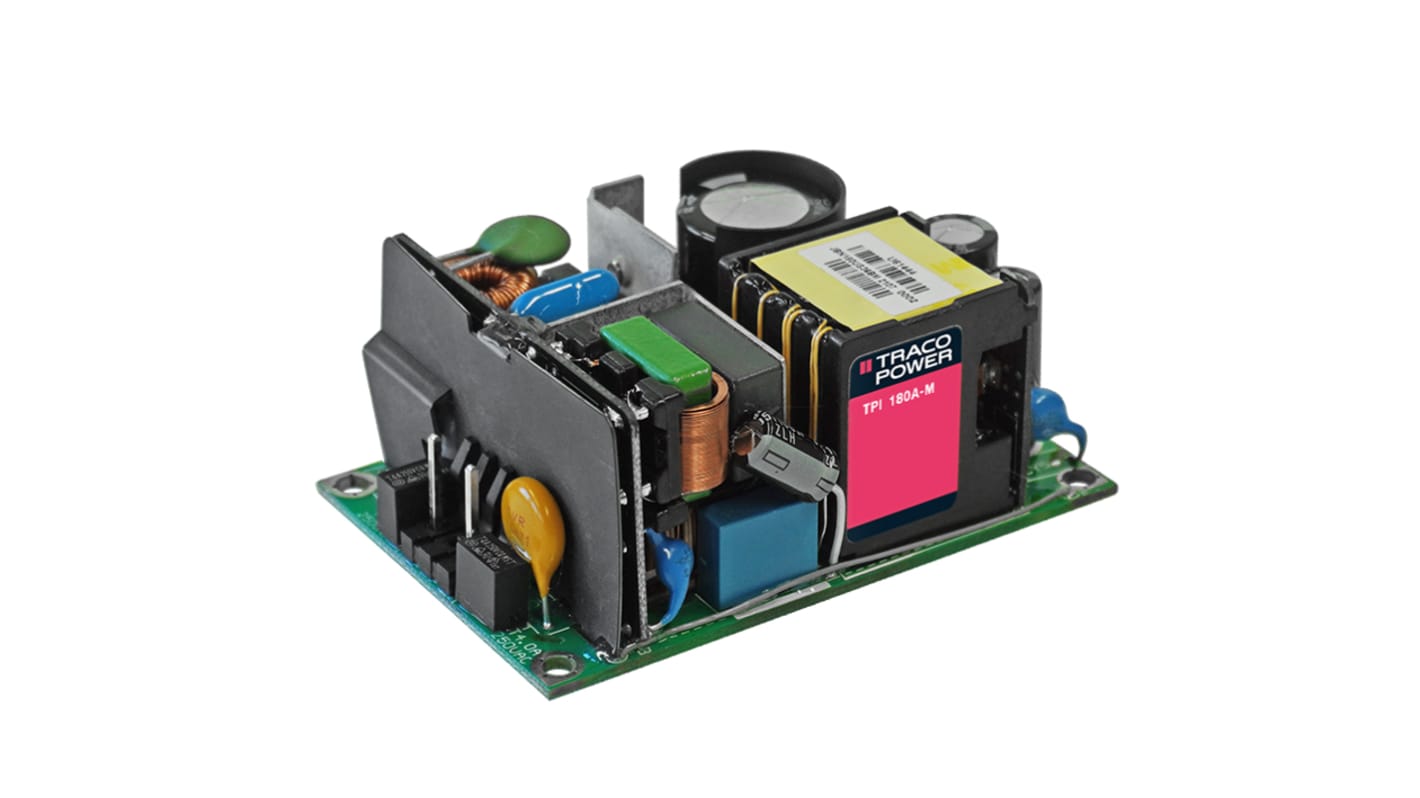

TRACOPOWER Power Supply, TPI 180-124A-M, 24V dc, 7.5A, 180W, 1 Output, 85 → 264V ac Input Voltage

RS Stock No.:: 249-9811
Mfr. Part No.:: TPI 180-124A-M
Brand:: TRACOPOWER

TRACOPOWER Power Supply, TPI 180-124A-M, 24V dc, 7.5A, 180W, 1 Output, 85 → 264V ac Input Voltage

Available to back order for despatch 12/12/2024

Price Each

£81.17

(exc. VAT)

£97.40

(inc. VAT)

Units	Per unit
1 - 4	£81.17
5 - 9	£78.73
10 - 24	£76.30
25 - 49	£73.05
50 +	£69.81

RS Stock No.:: 249-9811
Mfr. Part No.:: TPI 180-124A-M
Brand:: TRACOPOWER

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: TW

Product Details

TRACOPOWER TPI 180A-M Series Power Supply, 85 to 264 V AC Input Voltage, 180W Power Rating - TPI 180-124A-M

This power supply from TRACOPOWER is designed to meet the demands of high-power applications. With a power rating of 180W and a compact open-frame package, it offers high efficiency and reliability for industrial and medical devices.

Features & Benefits

• High power-density of 180W in a compact 3 x 2 inch package
• I/O isolation system rated for 3000V AC for enhanced safety
• High efficiency of up to 94% for energy saving
• Certification according to IEC/EN/UL 62368-1 standards for added safety
• Peak power operation up to 220W for 5 seconds
• Reinforced insulation for safety and reliability

Applications

• Industrial automation systems
• Medical devices requiring high-end power sources
• Safety-critical applications
• Space-constrained installations

Can it operate in harsh temperature conditions?

Yes, it has an operating temperature range from -40°C to 85°C.

Will it provide reliable power for medical devices?

Yes, it is ideal for use in medical applications due to its high reliability.

Is the power supply compact?

Yes, it features a compact open frame design, making it suitable for space-critical installations.

Specifications

Attribute	Value
Output Voltage	24V dc
Output Current	7.5A
Power Rating	180W
Number of Outputs	1
Input Voltage	85 → 264V ac
Mounting Type	Chassis Mount
Package Type	Open Frame
Embedded	No
Series	TPI 180A-M
Efficiency	94%
Weight	162g
Maximum Temperature	+85°C
Minimum Temperature	-40°C
