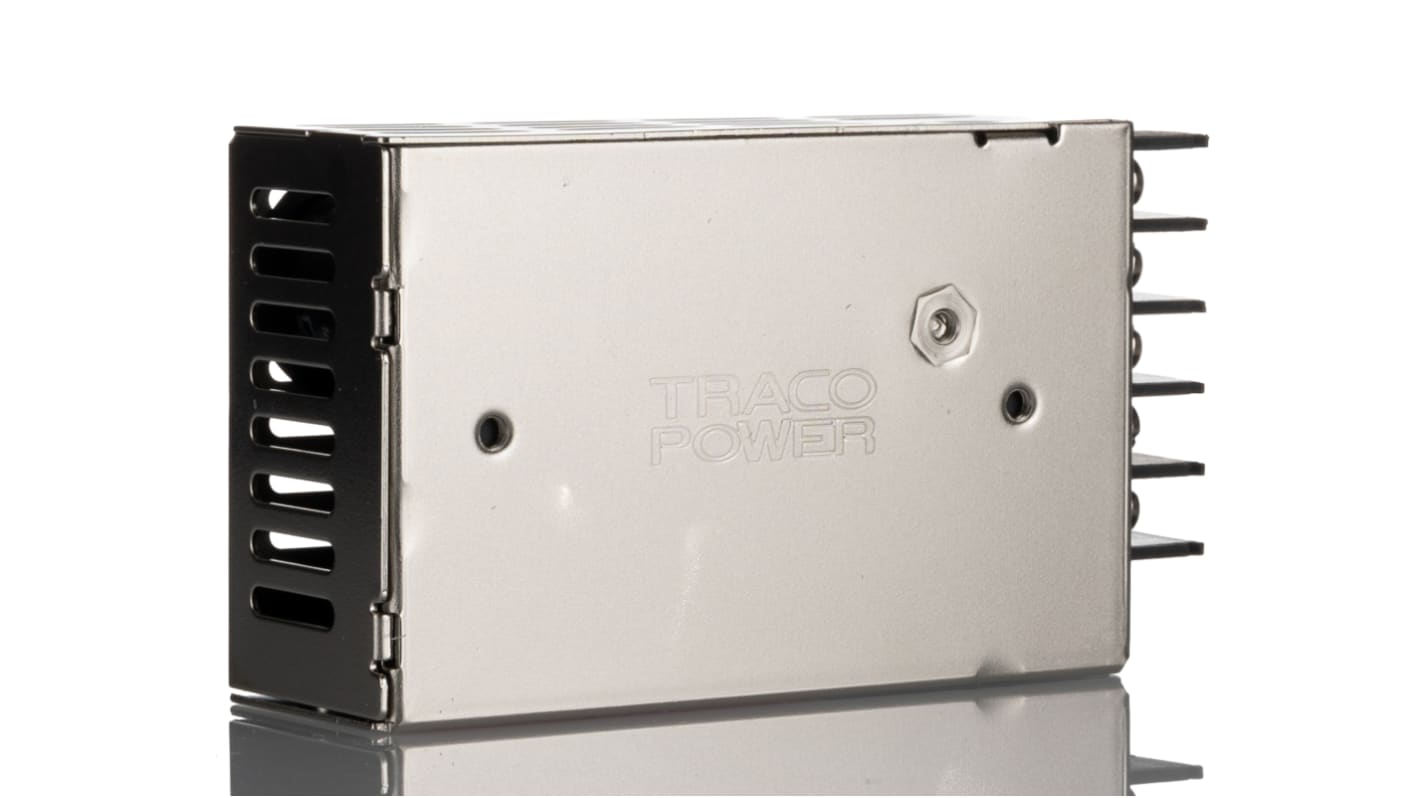

TRACOPOWER Switching Power Supply, TXLN 025-103, 3.3V dc, 6A, 20W, 1 Output, 88 → 264V ac Input Voltage
- RS Stock No.:
- 216-5862
- Mfr. Part No.:
- TXLN 025-103
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£26.97
(exc. VAT)
£32.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £26.97 |
5 - 9 | £26.16 |
10 - 24 | £25.35 |
25 - 49 | £24.27 |
50 + | £23.19 |
*price indicative
- RS Stock No.:
- 216-5862
- Mfr. Part No.:
- TXLN 025-103
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 3.3V dc | |
Output Current | 6A | |
Power Rating | 20W | |
Number of Outputs | 1 | |
Input Voltage | 88 → 264V ac | |
Mounting Type | Chassis Mount | |
Package Type | Enclosed | |
Length | 79mm | |
Width | 50.8mm | |
Depth | 28.5mm | |
Series | TXLN | |
Efficiency | 72% | |
Minimum Temperature | -20°C | |
Maximum Temperature | '+70°C | |
Weight | 180g | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Output Current 6A | ||
Power Rating 20W | ||
Number of Outputs 1 | ||
Input Voltage 88 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 79mm | ||
Width 50.8mm | ||
Depth 28.5mm | ||
Series TXLN | ||
Efficiency 72% | ||
Minimum Temperature -20°C | ||
Maximum Temperature '+70°C | ||
Weight 180g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TXLN Series Switching Power Supply, 88 to 264V AC Input Voltage, 20W Power Rating - TXLN 025-103
This power supply delivers robust performance with a universal input range of 88-264 VAC and a high efficiency of up to 72%. Designed to withstand challenging environments, it operates within a temperature range of -20°C to +70°C, ensuring reliable output across a variety of applications. Encased in a compact and lightweight metal housing, weighing just 180 g, it is ideal for installations where space is limited. The unit also provides short circuit, overvoltage, and overload protection, making it suitable for critical applications in industrial and medical settings.
Features & Benefits
• Convection cooling ensures silent operation without fans
• Short circuit, overvoltage, and overload protection for safety
• Complies with EN 61000-3-2 standards for harmonic emissions
• Lightweight at 180g for easy installation in various equipment
• Short circuit, overvoltage, and overload protection for safety
• Complies with EN 61000-3-2 standards for harmonic emissions
• Lightweight at 180g for easy installation in various equipment
Applications
• Suitable for automation and control systems
• Used in medical equipment requiring consistent power
• Appropriate for telecommunications equipment
• Applied in CNC machinery requiring stable power input
• Used in medical equipment requiring consistent power
• Appropriate for telecommunications equipment
• Applied in CNC machinery requiring stable power input
What is the input frequency range of this power supply?
The operational frequency range is between 47 - 63 Hz.
Does the unit provide short circuit protection?
Yes, it features continuous and automatic recovery for short circuit conditions.
Is it compatible with European EMC standards?
Yes, it complies with European EMC regulations and Low Voltage Directive.
