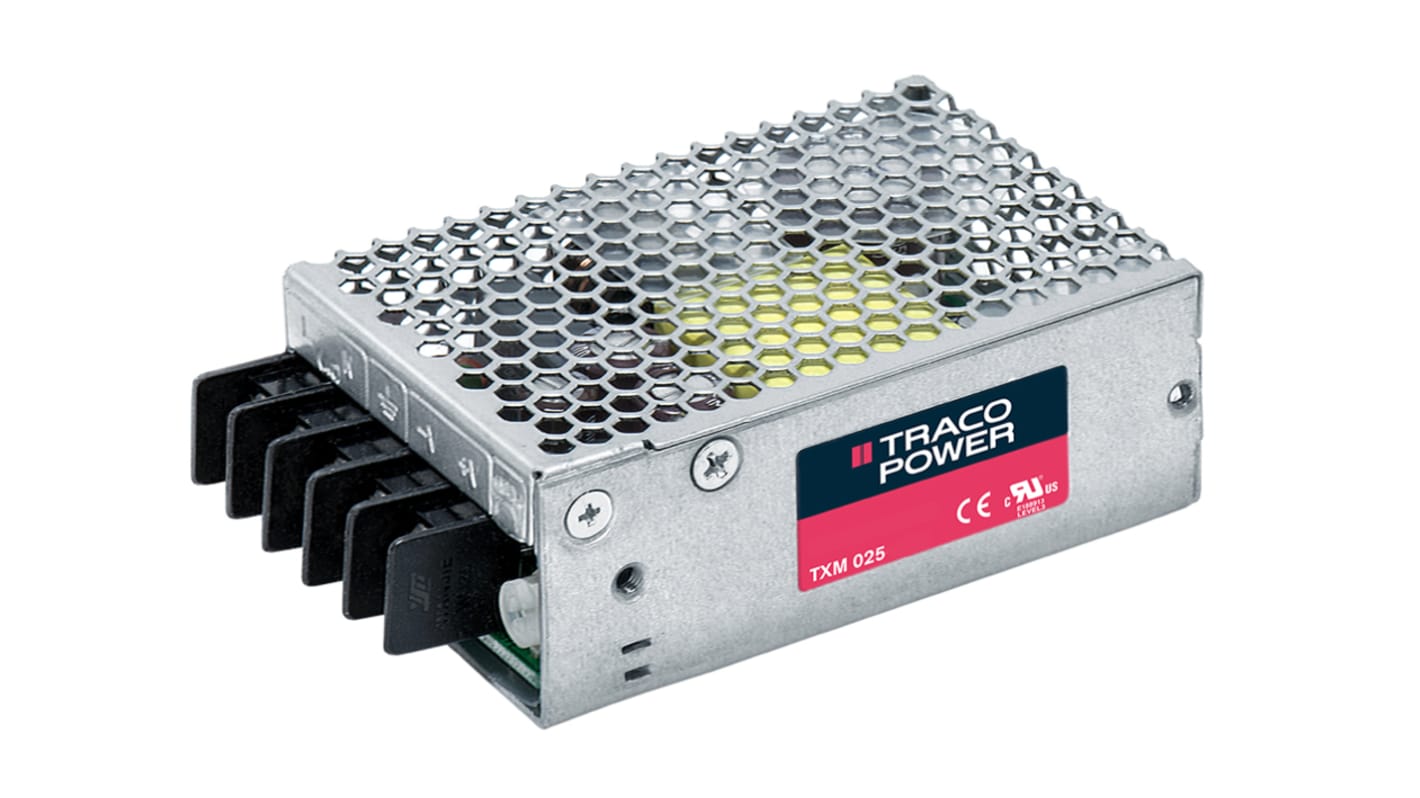

TRACO POWER, TXM 025-103 Switching Power Supply 3.3V dc, 25 W 264V ac

Get a bulk buy discount

Add 5 more to save 3%

View bulk pricing options

Subtotal (1 unit)*

£25.40

(exc. VAT)

£30.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Saving
1 - 4£25.40-
5 - 9£24.633%
10 - 24£23.885%
25 - 49£22.869%
50 +£21.8414%

*price indicative

RS Stock No.:
770-3258
Distrelec Article No.:
110-50-154
Mfr. Part No.:
TXM 025-103
Brand:
TRACO POWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACO POWER

Product Type

Switching Power Supply

Maximum Output Voltage

3.3V dc

Number of Outputs

1

Mount Type

Chassis

Power

25W

Minimum Operating Temperature

-20°C

SMPS Output Current

6A

Maximum Operating Temperature

70°C

Width

51mm

Standards/Approvals

EN 61000-4-5, IEC/EN/UL 60950-1, EN 61000-4-8, EN 61000-4-6, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 55032, EN 55024

Depth

29mm

Length

79mm

Weight

175g

Series

TXM 025

Efficiency

71%

Maximum Input Voltage

264V ac

Output Current

6A

Hazardous Area Certification

No

Minimum Input Voltage

90V ac

COO (Country of Origin):
CN

15W to 150W, Universal Input, Single Output, TXM Series


The Traco Power TXM is a series of Power supplies in metal enclosure. The TXM is designed for a variety of cost critical applications. These Traco Power supplies have a low profile case and screw terminal block connections, which make them easy to install. The TXM Power supplies have a universal input and they comply with European EMC standards and with the Low Voltage Directive (LVD).

Very compact Power supplies

Cost optimized design

Low no load power consumption <0.5W up to 75W units

Screw terminal block

No internal fan up to 150W models

Universal input 88-264 V ac

Adjustable output voltage

Switch Mode - Traco TXM Series


Approvals

UL, cUL, CB report

Standards

UL 60950-1, IEC 60950-1, EN 60950-1
