TRACOPOWER, TXLN 025-148 Switching Power Supply 48V dc, 27 W 264V ac
- RS Stock No.:
- 216-5867
- Distrelec Article No.:
- 302-25-016
- Mfr. Part No.:
- TXLN 025-148
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£25.00
(exc. VAT)
£30.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £25.00 |
| 5 - 9 | £24.25 |
| 10 - 24 | £23.50 |
| 25 - 49 | £22.50 |
| 50 + | £21.50 |
*price indicative
- RS Stock No.:
- 216-5867
- Distrelec Article No.:
- 302-25-016
- Mfr. Part No.:
- TXLN 025-148
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Power | 27W | |
| Minimum Operating Temperature | -20°C | |
| SMPS Output Current | 570mA | |
| Maximum Operating Temperature | 70°C | |
| Weight | 180g | |
| Depth | 28.5mm | |
| Width | 50.8mm | |
| Standards/Approvals | EN 55032 Class B, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-3, EN 62368-1, REACH, UL 62368-1, EN 55024 | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 88% | |
| Series | TXLN | |
| Output Current | 570mA | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 88V ac | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Power 27W | ||
Minimum Operating Temperature -20°C | ||
SMPS Output Current 570mA | ||
Maximum Operating Temperature 70°C | ||
Weight 180g | ||
Depth 28.5mm | ||
Width 50.8mm | ||
Standards/Approvals EN 55032 Class B, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-3, EN 62368-1, REACH, UL 62368-1, EN 55024 | ||
Maximum Input Voltage 264V ac | ||
Efficiency 88% | ||
Series TXLN | ||
Output Current 570mA | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 88V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

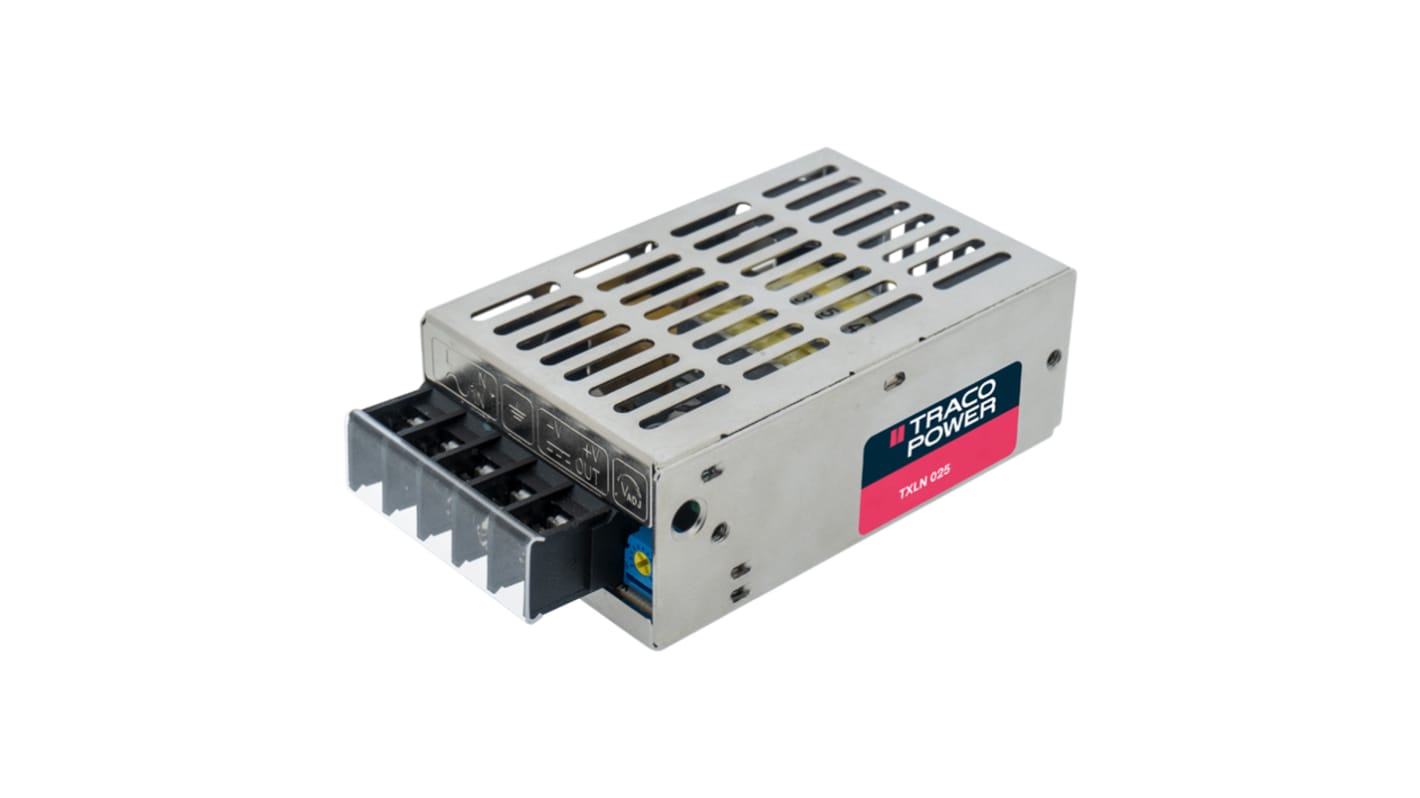

The TRACOPOWER TXLN series is a family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive (LVD).
Compact metal case with screw terminal block
It provides short circuit, overvoltage and overload protection
Convection cooled (no-fan)
High efficiency up to 88%
