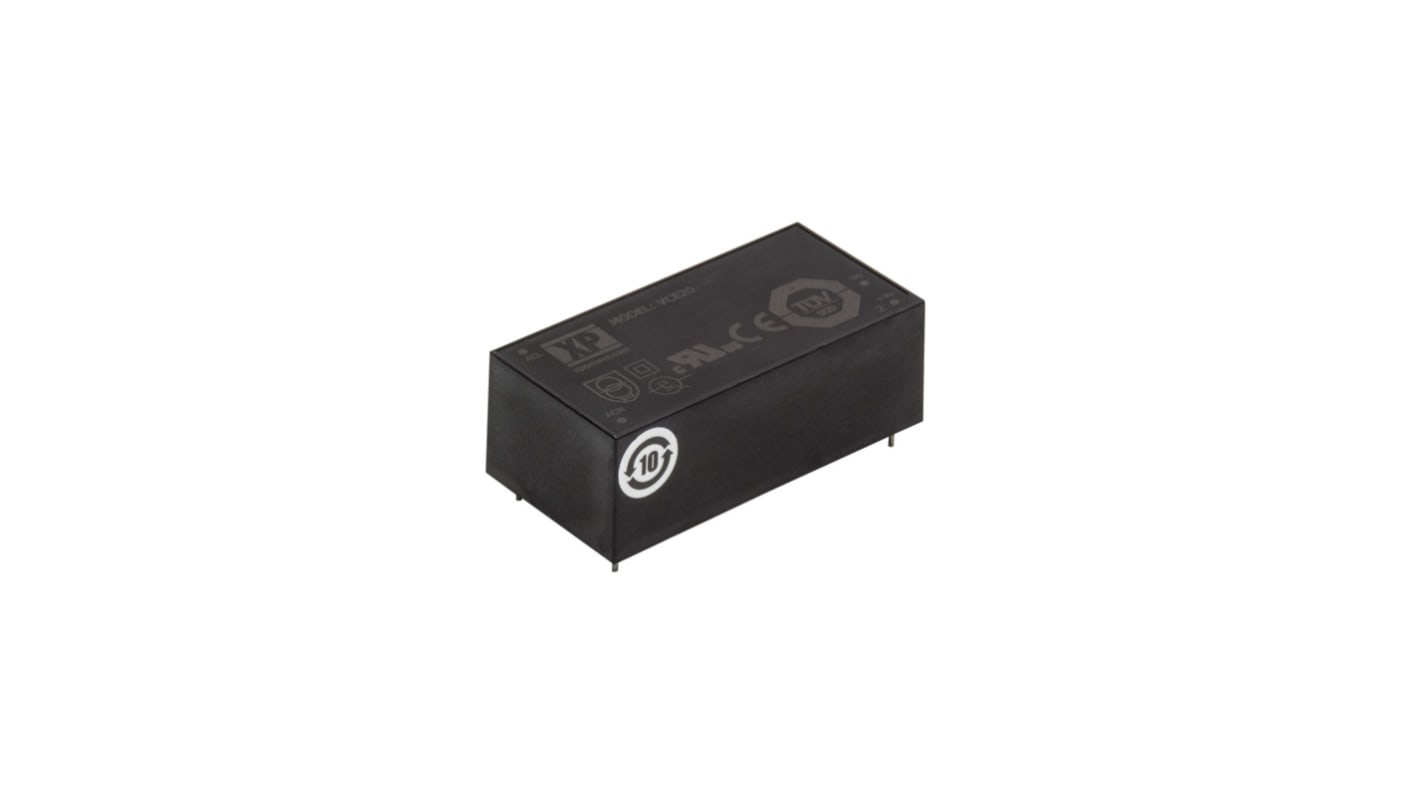

XP Power Switching Power Supply, VCE20US05, 5V dc, 4A, 20W, 1 Output, 85 → 305V ac Input Voltage
- RS Stock No.:
- 197-0992
- Distrelec Article No.:
- 301-83-729
- Mfr. Part No.:
- VCE20US05
- Brand:
- XP Power
Subtotal (1 unit)*
£13.46
(exc. VAT)
£16.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 999,999,992 unit(s) shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.46 |
*price indicative
- RS Stock No.:
- 197-0992
- Distrelec Article No.:
- 301-83-729
- Mfr. Part No.:
- VCE20US05
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 5V dc | |
| Output Current | 4A | |
| Power Rating | 20W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 305V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 66mm | |
| Width | 33mm | |
| Medical Approved | No | |
| Depth | 23.4mm | |
| Series | VCE20 | |
| Efficiency | 85% | |
| Weight | 90g | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Output Current 4A | ||
Power Rating 20W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 305V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 66mm | ||
Width 33mm | ||
Medical Approved No | ||
Depth 23.4mm | ||
Series VCE20 | ||
Efficiency 85% | ||
Weight 90g | ||
Minimum Temperature -25°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
The XP Power VCE20US05, 5VDC/20W power supplies for low cost ITE, industrial and domestic applications. The series provides open frame and encapsulated PCB mount with world-wide safety standards including ITE and Household, compliance with class B.
Supply Voltage ranges from 85 to 305 VAC
EN55035 Immunity Standard
Class II
EN55035 Immunity Standard
Class II
