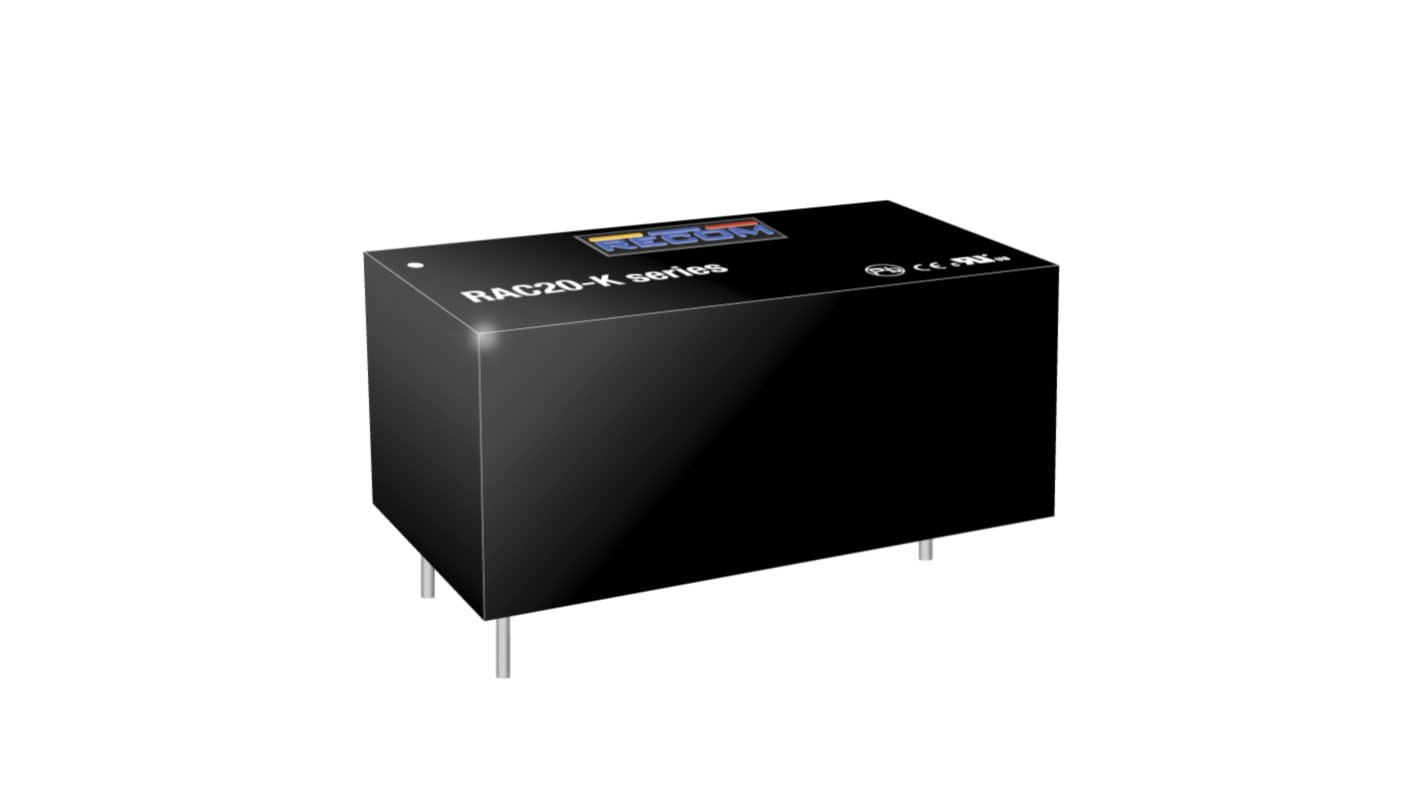

Recom Switching Power Supply, RAC20-05SK/W, 5V dc, 4A, 20W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 180-9254
- Mfr. Part No.:
- RAC20-05SK/W
- Brand:
- Recom
Available to back order for despatch when stock is available
Added
Price 1 Tray of 20
£225.20
(exc. VAT)
£270.24
(inc. VAT)
| Tray(s) | Per Tray | Per unit* |
| 1 - 4 | £225.20 | £11.26 |
| 5 - 9 | £218.44 | £10.922 |
| 10 - 24 | £211.69 | £10.584 |
| 25 - 49 | £204.93 | £10.246 |
| 50 + | £198.18 | £9.909 |
| *price indicative | ||
- RS Stock No.:
- 180-9254
- Mfr. Part No.:
- RAC20-05SK/W
- Brand:
- Recom
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RECOM Switching Power Supply, 85 To 264V AC Input Voltage, 84% Efficiency - RAC20-K series - RAC20-05SK/W
This switching power supply from RECOM lets you convert electrical power from high-input to low-output voltage for your applications. It has a wide input range of 85 to 264V AC that's stepped down to a stable voltage of 5V DC needed by low-voltage devices. The unit comes in a non-conductive plastic casing that resists corrosion and impact, so it can withstand harsh conditions. With a low output current rating of 4A, this is an energy-saving power distribution outlet. Thanks to its robust efficiency of 84%, energy loss is minimal for optimal productivity.
Features & Benefits
• PCB mounting provides a tight and vibration-resistant attachment to your machinery
• Operating temperature range between -40°C and +85°C for use in challenging environments
• Compact dimensions of 52.5 (L) x 27.4 (W) x 23mm (H) for easy installation in cramped setups
• Service life of up to 450,000 hours at +25°C for long-term performance
• Operating temperature range between -40°C and +85°C for use in challenging environments
• Compact dimensions of 52.5 (L) x 27.4 (W) x 23mm (H) for easy installation in cramped setups
• Service life of up to 450,000 hours at +25°C for long-term performance
Applications
• Machine tools
• Server rooms
• Server rooms
Is this device flame-retardant?
Yes, this device stops burning in 10 seconds or less in the event of a fire, making it a safe choice for use in volatile areas.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Output Current | 4A |
| Power Rating | 20W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264V ac |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 52.5mm |
| Width | 27.4mm |
| Depth | 23mm |
| Series | RAC20-K |
| Efficiency | 84% |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
| Weight | 65g |
