- RS Stock No.:
- 183-4093
- Mfr. Part No.:
- RAC20-15SK
- Brand:
- Recom
46 In stock - FREE next working day delivery available
Added
Price Each
£11.52
(exc. VAT)
£13.82
(inc. VAT)
Units | Per unit |
1 - 4 | £11.52 |
5 - 9 | £11.17 |
10 - 24 | £10.83 |
25 - 49 | £10.48 |
50 + | £10.14 |
- RS Stock No.:
- 183-4093
- Mfr. Part No.:
- RAC20-15SK
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

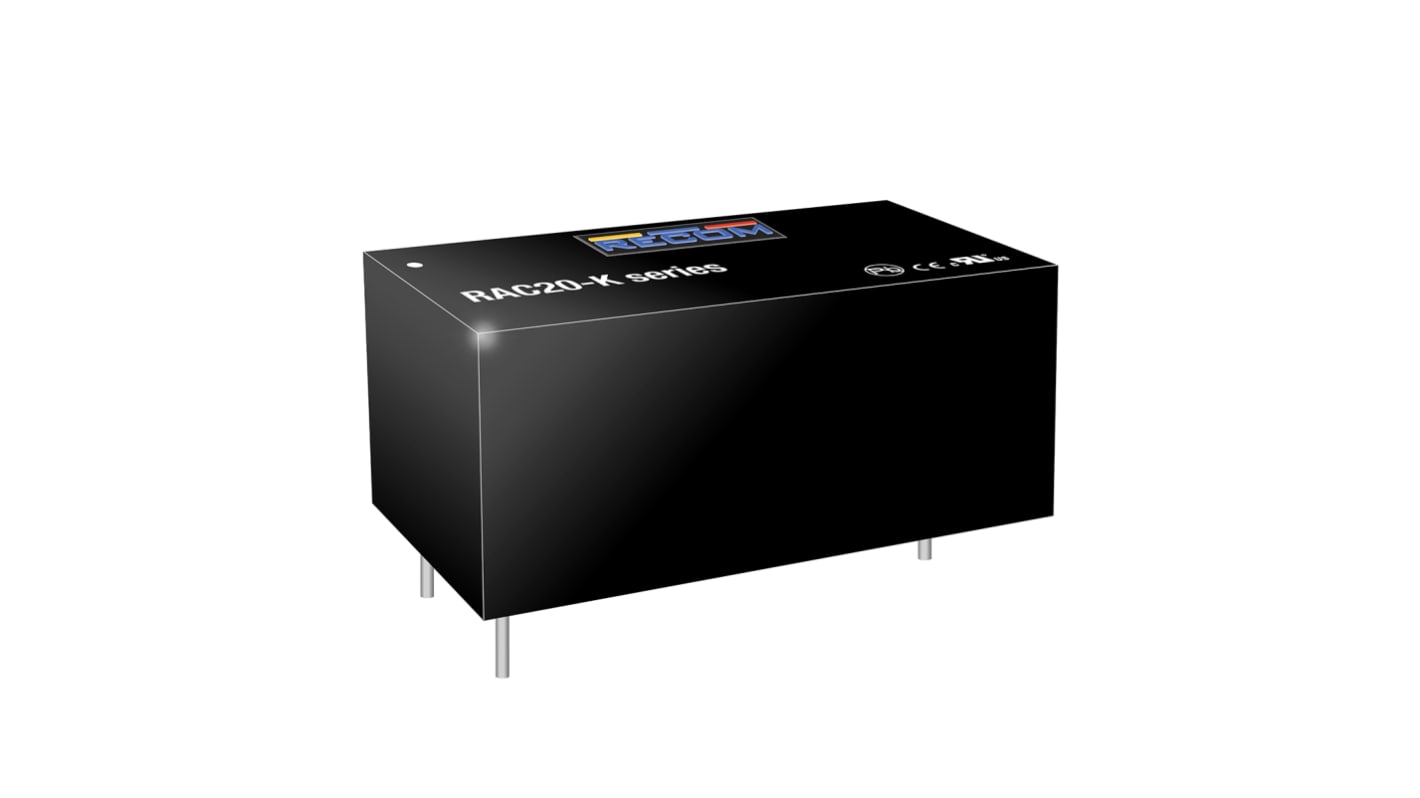

The RAC20-K series are highly efficient PCB-mount power conversion modules with ultra-low energy losses especially in light load conditions, making them a benchmark for always-on and standby mode operations, which are typically coming along with IoT and smart applications. The power supply units cover worldwide mains input range of 85VAC up to 264VAC. These AC/DC modules operate in a temperature range of -40°C to +85°C and offer fully protected single or dual outputs.
Wide input range 85-264VAC
Standby mode optimized PSU (ENER Lot 6)
Ultra-high efficiency over entire load range
Operating temperature range: -40°C to +85°C
No load power consumption 40mW typ.
Standby mode optimized PSU (ENER Lot 6)
Ultra-high efficiency over entire load range
Operating temperature range: -40°C to +85°C
No load power consumption 40mW typ.
Specifications
Attribute | Value |
---|---|
Output Voltage | 15V dc |
Output Current | 1.333A |
Power Rating | 20W |
Number of Outputs | 1 |
Input Voltage | 85 → 264V ac |
Mounting Type | PCB Mount |
Length | 52.5mm |
Width | 27.4mm |
Depth | 23mm |
Efficiency | 86% |
Series | RAC20-K |
Weight | 60g |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
