Recom Switching Power Supply, RAC20-12SK, 12V dc, 1.67A, 20W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 183-4072
- Mfr. Part No.:
- RAC20-12SK
- Brand:
- Recom
Available to back order for despatch 05/12/2024
Added
Price 1 Tube of 15
£154.35
(exc. VAT)
£185.22
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £154.35 | £10.29 |
| 5 - 9 | £149.72 | £9.981 |
| 10 - 24 | £145.09 | £9.673 |
| 25 - 49 | £140.46 | £9.364 |
| 50 + | £135.83 | £9.055 |
| *price indicative | ||
- RS Stock No.:
- 183-4072
- Mfr. Part No.:
- RAC20-12SK
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

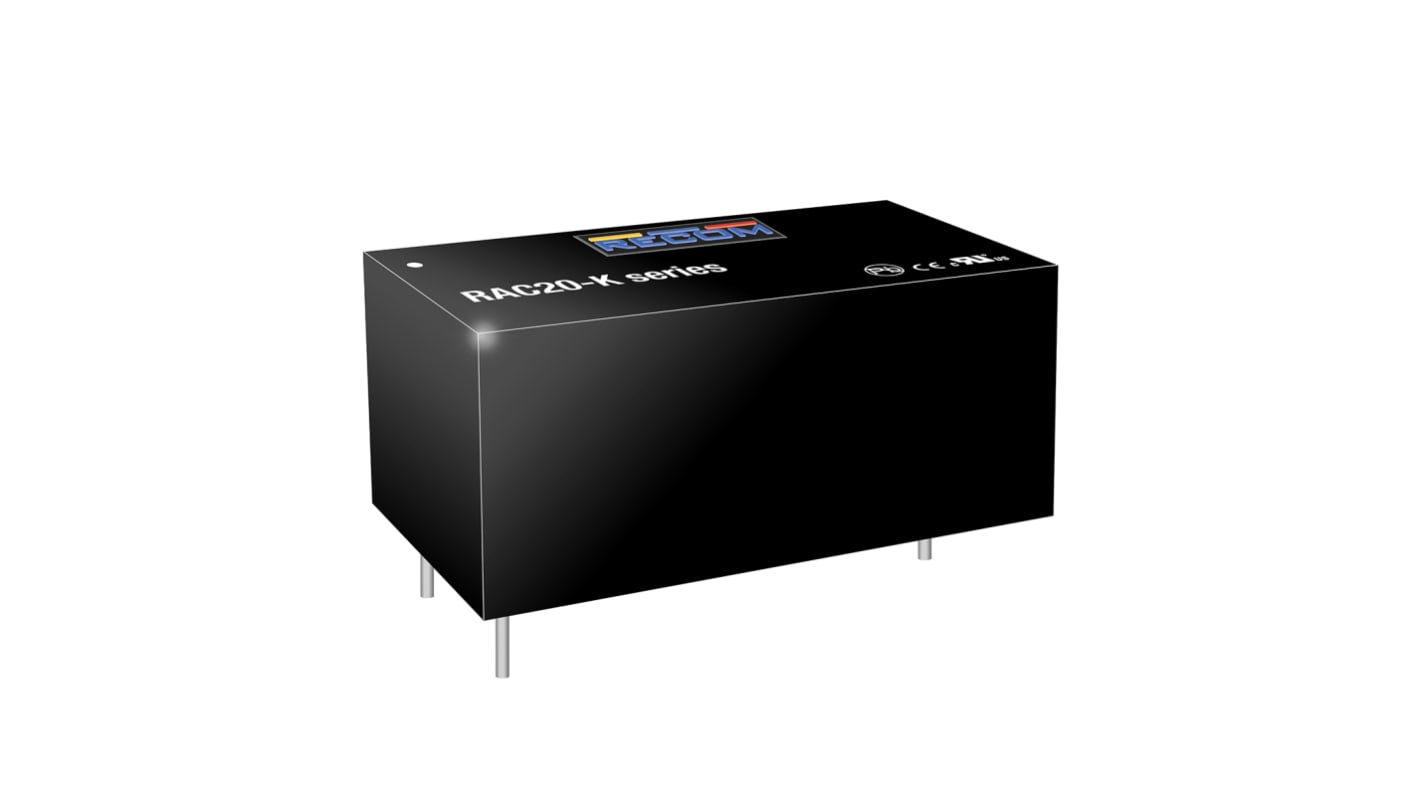

RECOM Switching Power Supply, 52.5 (L) x 27.4 (W) x 23mm (D), 60g Weight - RAC20-K series - RAC20-12SK
Looking for a reliable way to regulate the voltage feeds to your equipment? Reach for this switching power supply from RECOM. It delivers the stable voltages needed to support the tip-top performance of your always-on or standby-mode kit. A wide mains input range between 85 and 264V AC makes this a versatile option. As it has integrated electrical protection, you can rely on this power supply to help prevent equipment damage and service interruptions.
Features & Benefits
• EMC compliance prevents electromagnetic interference for clear signal relays
• 86% efficiency for minimal energy waste
• Broad operating temperature range between -40°C and +85°C for use in challenging conditions
• 86% efficiency for minimal energy waste
• Broad operating temperature range between -40°C and +85°C for use in challenging conditions
Applications
• Testing and measuring instruments
• Medical devices
• Automated industrial systems
• Medical devices
• Automated industrial systems
What size is this switching power supply?
With dimensions of only 52.5 (L) x 27.4 (W) x 23mm (D), the small unit takes up minimal space on your PCB.
Is this switching power supply fire safe?
The component's casing has self-extinguishing properties to make burning stop in 10 seconds and help prevent the spread of fires.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Output Current | 1.67A |
| Power Rating | 20W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264V ac |
| Mounting Type | PCB Mount |
| Length | 52.5mm |
| Width | 27.4mm |
| Depth | 23mm |
| Efficiency | 86% |
| Series | RAC20-K |
| Weight | 60g |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
