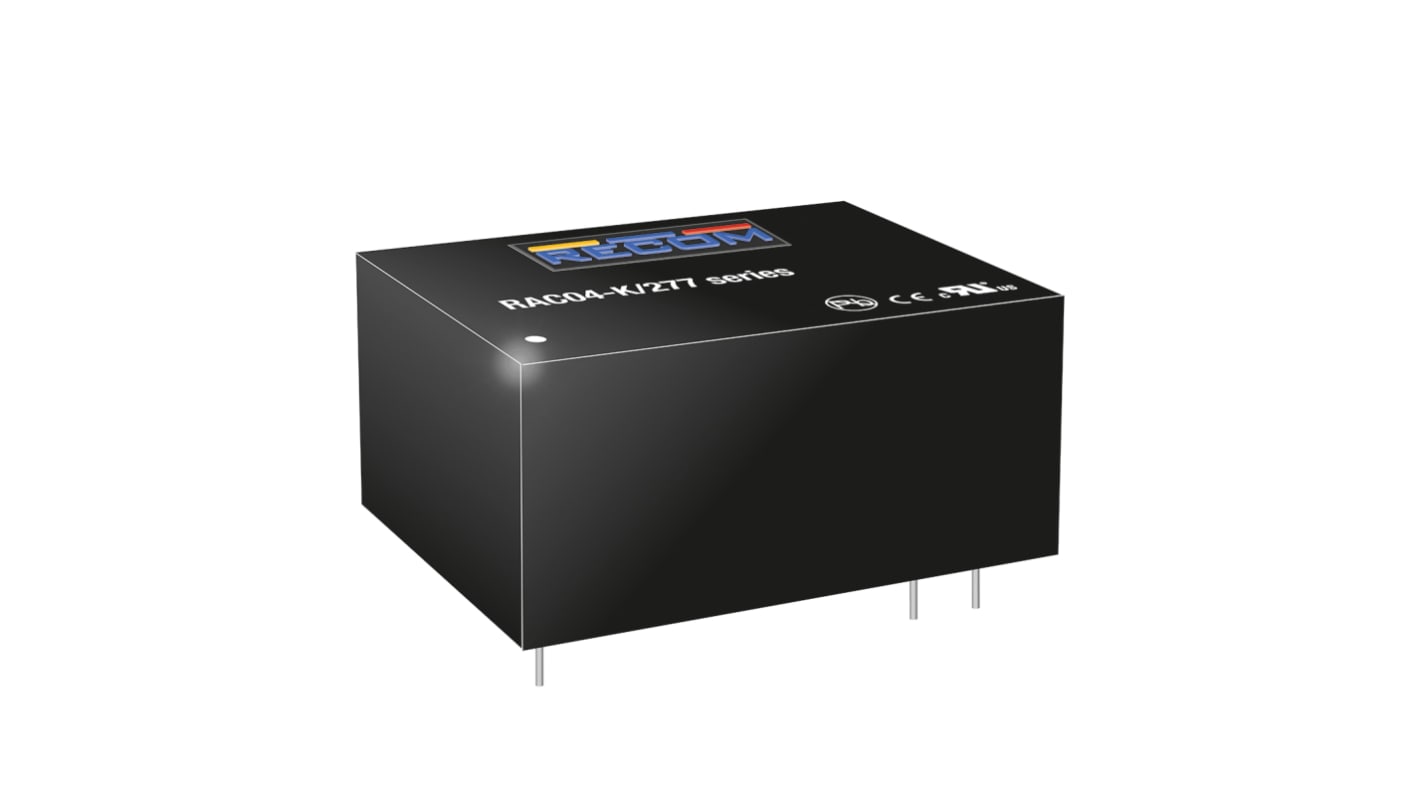

Recom, RAC04-24SK/277 Switching Power Supply 24V dc, 4 W 305V ac
- RS Stock No.:
- 190-7753
- Mfr. Part No.:
- RAC04-24SK/277
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£7.79
(exc. VAT)
£9.35
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.79 |
| 5 - 9 | £7.56 |
| 10 - 24 | £7.33 |
| 25 - 49 | £7.09 |
| 50 + | £6.86 |
*price indicative
- RS Stock No.:
- 190-7753
- Mfr. Part No.:
- RAC04-24SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | PCB | |
| Power | 4W | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 167mA | |
| Maximum Operating Temperature | 90°C | |
| Depth | 17.4mm | |
| Weight | 30g | |
| Length | 36.7mm | |
| Standards/Approvals | EN 55022 Class B, UL 60950-1, RoHS, IEC 60950-1, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 60950-1, EN 55024, CAN/CSA C22.2 No. 60950-1-07 | |
| Width | 27.2mm | |
| Efficiency | 0.8% | |
| Series | RAC04‿SK/277 | |
| Maximum Input Voltage | 305V ac | |
| Hazardous Area Certification | No | |
| Output Current | 167mA | |
| Minimum Input Voltage | 80V ac | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type PCB | ||
Power 4W | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 167mA | ||
Maximum Operating Temperature 90°C | ||
Depth 17.4mm | ||
Weight 30g | ||
Length 36.7mm | ||
Standards/Approvals EN 55022 Class B, UL 60950-1, RoHS, IEC 60950-1, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 60950-1, EN 55024, CAN/CSA C22.2 No. 60950-1-07 | ||
Width 27.2mm | ||
Efficiency 0.8% | ||
Series RAC04‿SK/277 | ||
Maximum Input Voltage 305V ac | ||
Hazardous Area Certification No | ||
Output Current 167mA | ||
Minimum Input Voltage 80V ac | ||
- COO (Country of Origin):
- CN
The RAC04-K/277 series delivers an uncompromising 4 watts of continuous output power (6W peak) in harsh industrial and household environments. These modules deliver full load output power from -40°C to 75°C across the entire input range of 80VAC to 305VAC. A peak load capability of up to 150% supports dynamic power demands of applications. This series of fully encapsulated AC/DC modules is a complete solution without the need for external components for worldwide applications in automation, industry 4.0, IoT, household, and home automation.
83 to 305VAC input voltage range
150% peak power capability
Wide temperature range: -40°C to +90°C
No load power consumption <150mW
4kVac insulation
Operating altitude up to 5000m
