Recom Switching Power Supply 24V dc, 840mA, 20 W, Input 85V ac to 264V ac
- RS Stock No.:
- 183-4074
- Mfr. Part No.:
- RAC20-24SK
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 15 units)*
£168.58
(exc. VAT)
£202.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £168.58 | £11.239 |
| 5 - 9 | £163.52 | £10.901 |
| 10 - 24 | £158.46 | £10.564 |
| 25 - 49 | £153.41 | £10.227 |
| 50 + | £148.35 | £9.89 |
*price indicative
- RS Stock No.:
- 183-4074
- Mfr. Part No.:
- RAC20-24SK
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | PCB | |
| Power | 20W | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 840mA | |
| Maximum Operating Temperature | 85°C | |
| Depth | 23mm | |
| Length | 52.5mm | |
| Weight | 60g | |
| Standards/Approvals | CANCSA C. . 668114, EN 605, EN 61558, EN 668, IEC 605, IEC 60950, IEC 615581, IEC 6155816, IEC 6681:014, RoHS, UL 6681 | |
| Width | 27.4mm | |
| Maximum Input Voltage | 264V ac | |
| Series | RAC20-K | |
| Efficiency | 85% | |
| Hazardous Area Certification | No | |
| Output Current | 840mA | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type PCB | ||
Power 20W | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 840mA | ||
Maximum Operating Temperature 85°C | ||
Depth 23mm | ||
Length 52.5mm | ||
Weight 60g | ||
Standards/Approvals CANCSA C. . 668114, EN 605, EN 61558, EN 668, IEC 605, IEC 60950, IEC 615581, IEC 6155816, IEC 6681:014, RoHS, UL 6681 | ||
Width 27.4mm | ||
Maximum Input Voltage 264V ac | ||
Series RAC20-K | ||
Efficiency 85% | ||
Hazardous Area Certification No | ||
Output Current 840mA | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN

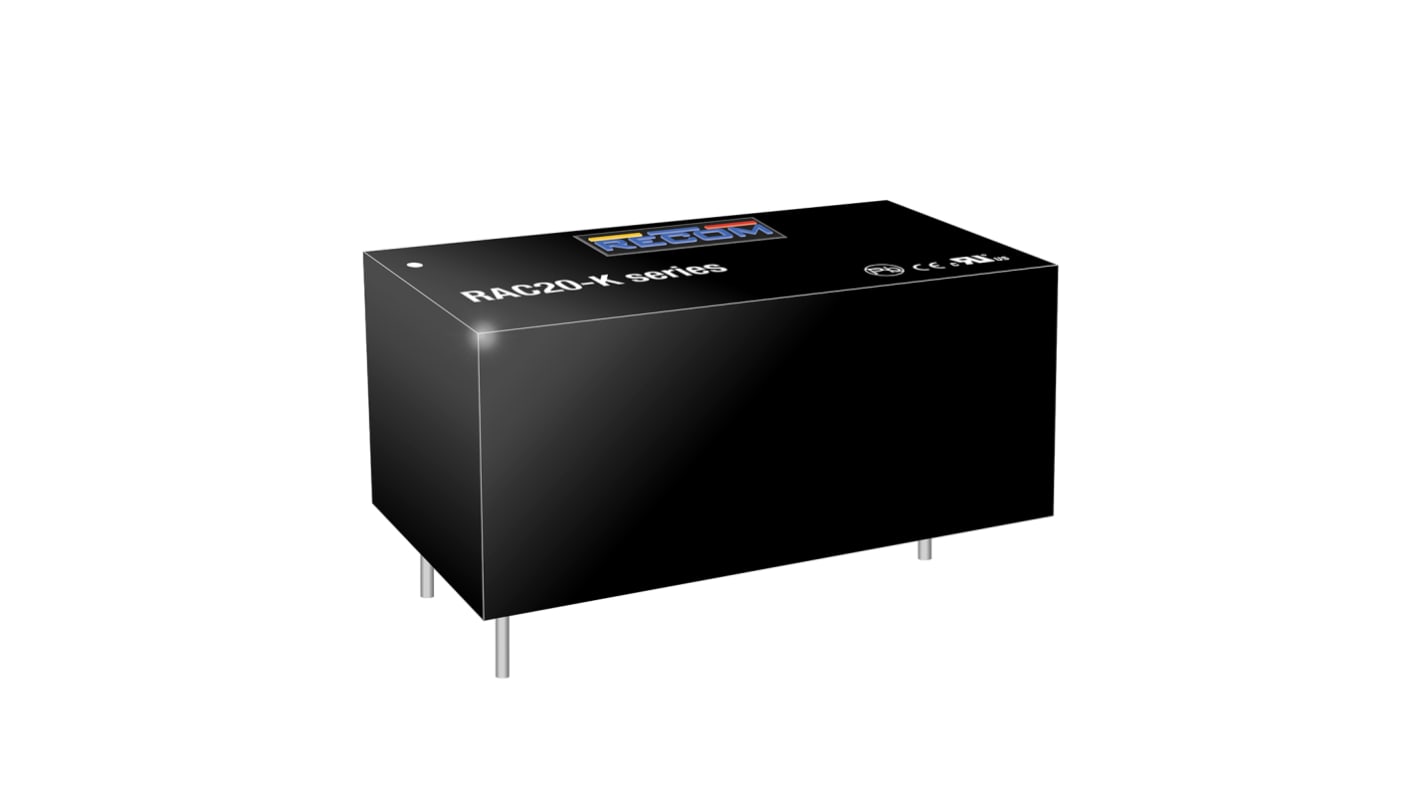

RECOM Switching Power Supply, 85% Efficiency, 85 to 264V AC Input Voltage - RAC20-K Series - RAC20-24SK
Use this switching power supply from RECOM to convert unregulated AC input into regulated and stable DC output voltage. It converts 85 to 264V AC inputs to a stabilised 24V DC output that your high-powered devices can use. As it handles high capacitive loads of up to 1000μF, it's useful for heavy-duty industrial applications. Plastic housing provides durability, as well as resistance to corrosion and impact, to deliver long-term performance. A low weight of 60g means this unit puts minimal drag on your setup and makes it easy to handle during installation.
Features & Benefits
• PCB mounting style for quick and simple installation
• Mean time between failures of 450,000 hours for long-term performance
• High efficiency rating of 85% indicates minimal energy loss for improved productivity
• IP20-rated for finger safety and resistance to dust or objects larger than 12mm
Applications
• Computing systems
• Machine tools
What's the operating temperature range of this switching power supply?
This component has a wide operating temperature range between -40°C and +85°C, so you can depend on it for safe use in challenging environments.
