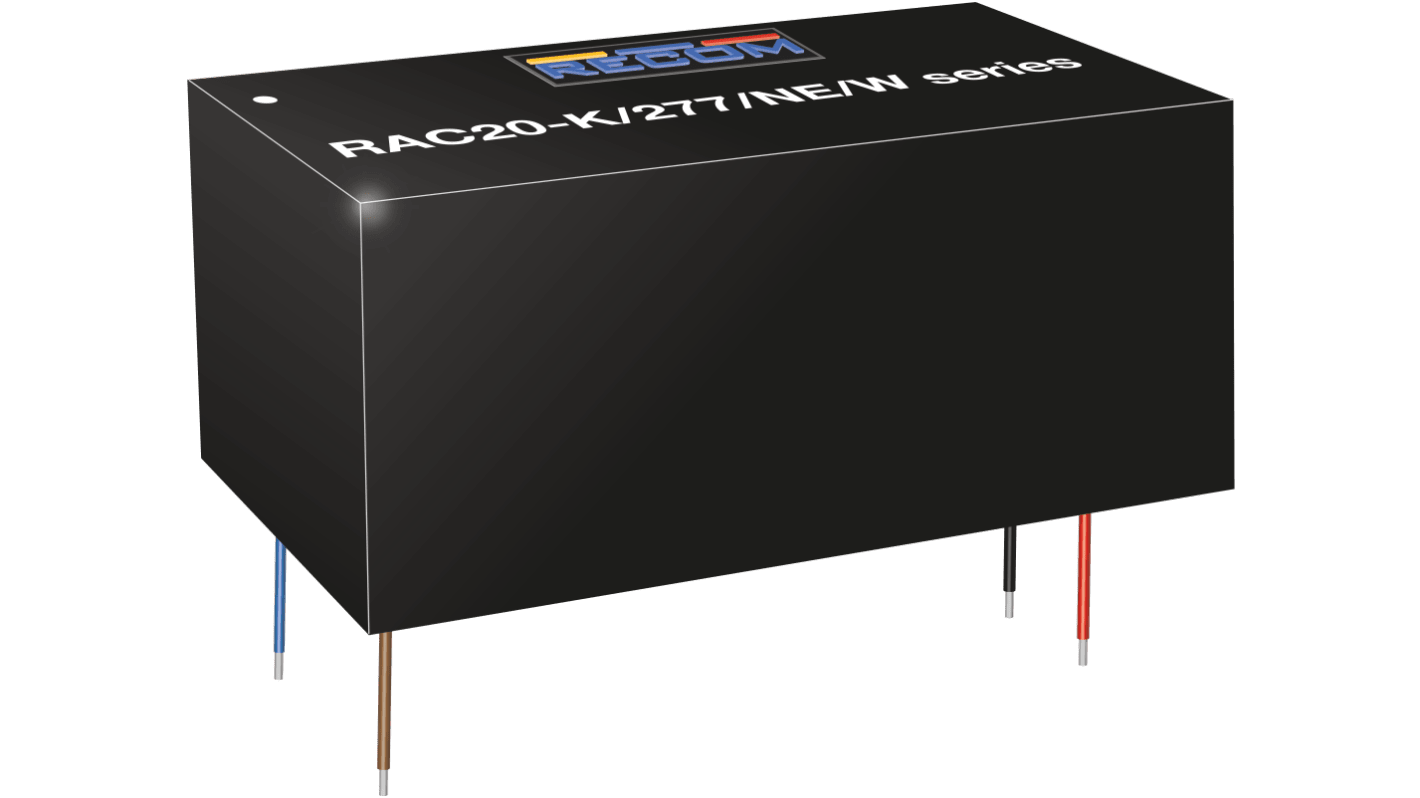

Recom, RAC20-24SK/277/NE/W Power Supply 24V dc, 20 W
- RS Stock No.:
- 218-994
- Mfr. Part No.:
- RAC20-24SK/277/NE/W
- Brand:
- Recom
Subtotal (1 tray of 20 units)*
£196.06
(exc. VAT)
£235.27
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £196.06 | £9.803 |
*price indicative
- RS Stock No.:
- 218-994
- Mfr. Part No.:
- RAC20-24SK/277/NE/W
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Surface | |
| Power | 20W | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Weight | 484g | |
| Standards/Approvals | CSA-C22.2 No. 60947-4-1-14, CE, IEC/EN 60204, IEC/EN 60947, UL 60947-4-1, VDE 0660 | |
| Length | 185mm | |
| Width | 108mm | |
| Series | T3 | |
| Efficiency | 85% | |
| Output Current | 830mA | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Surface | ||
Power 20W | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Weight 484g | ||
Standards/Approvals CSA-C22.2 No. 60947-4-1-14, CE, IEC/EN 60204, IEC/EN 60947, UL 60947-4-1, VDE 0660 | ||
Length 185mm | ||
Width 108mm | ||
Series T3 | ||
Efficiency 85% | ||
Output Current 830mA | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN
The Recom PCB mount power conversion modules with ultra-low energy losses especially in light load conditions, making them a benchmark for always-on and standby mode operations, which are typically coming along with IoT and smart applications. The power supply units cover worldwide mains input range of 85VAC up to 305VAC and come with international safety certifications for industrial, AV and ITE as well as household standards.
Wide input range
Standby mode optimized PSU
Operating Altitude up to 5000m
Class II installations
EMC compliant without external components
No load power consumption 40mW
Wired connection variants
3 year warranty
