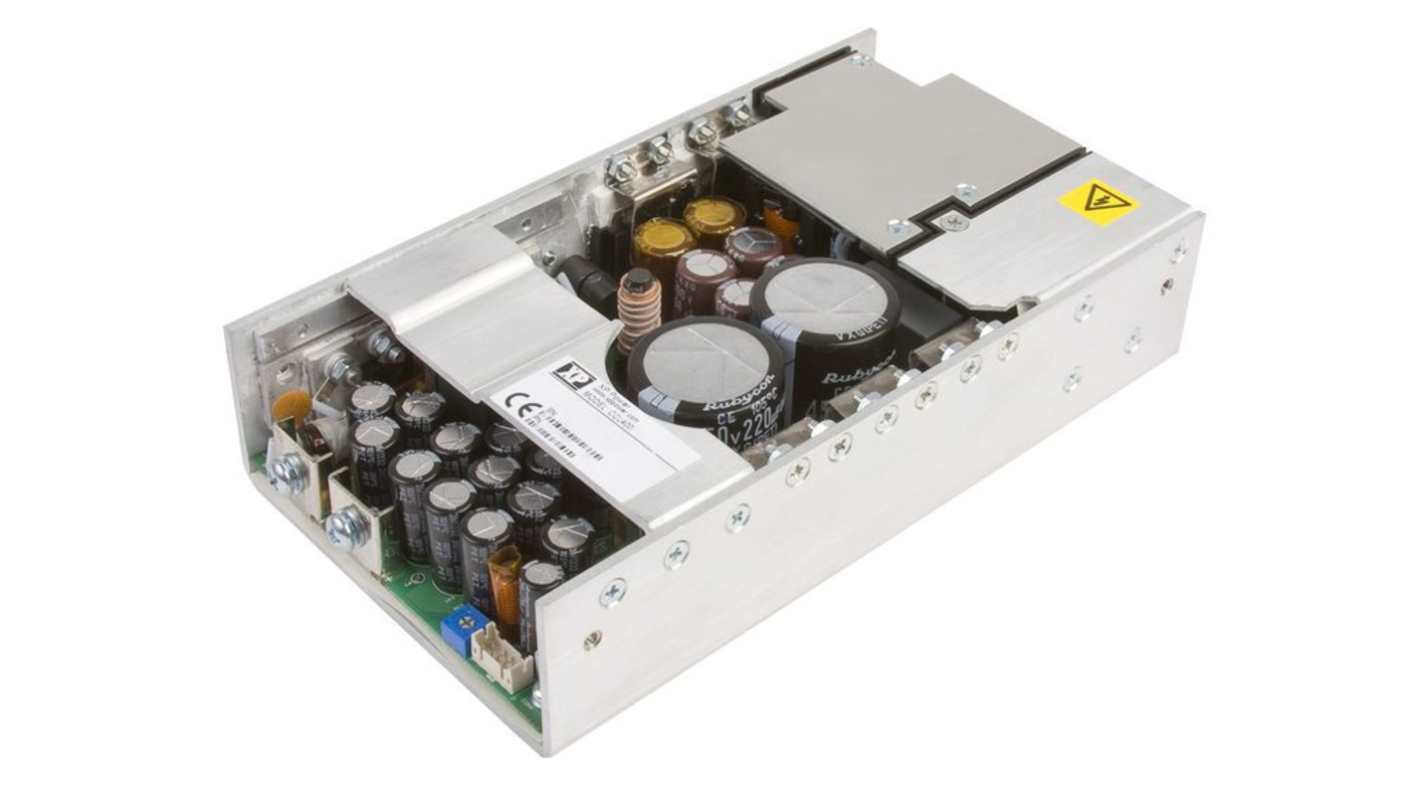

XP Power Switching Power Supply 12V, 33.3A, 400 W, Input 90V to 90V
- RS Stock No.:
- 516-893
- Mfr. Part No.:
- CCL400PS12
- Brand:
- XP Power
Stock information currently inaccessible
- RS Stock No.:
- 516-893
- Mfr. Part No.:
- CCL400PS12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 12V | |
| Number of Outputs | 1 | |
| Power | 400W | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 33.3A | |
| Maximum Operating Temperature | 70°C | |
| Length | 178mm | |
| Depth | 40mm | |
| Weight | 1.5kg | |
| Standards/Approvals | ANSI/AAMI ES60601-1 & CSA C22.2, CSA 22.2 No.60950-1-1:08, CSA22.2 No.62368-1-14, EN60601-1/A12:2006, IEC60601-1, IEC60950-1:2005, IEC62368-1:2014, UL60950-1 (2014), UL62368-1 (2014) | |
| Width | 100mm | |
| Series | CCL400 | |
| Maximum Input Voltage | 90V | |
| Efficiency | 94% | |
| Output Current | 33.3A | |
| Hazardous Area Certification | CE, EN, UKCA, UL | |
| Minimum Input Voltage | 90V | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 12V | ||
Number of Outputs 1 | ||
Power 400W | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 33.3A | ||
Maximum Operating Temperature 70°C | ||
Length 178mm | ||
Depth 40mm | ||
Weight 1.5kg | ||
Standards/Approvals ANSI/AAMI ES60601-1 & CSA C22.2, CSA 22.2 No.60950-1-1:08, CSA22.2 No.62368-1-14, EN60601-1/A12:2006, IEC60601-1, IEC60950-1:2005, IEC62368-1:2014, UL60950-1 (2014), UL62368-1 (2014) | ||
Width 100mm | ||
Series CCL400 | ||
Maximum Input Voltage 90V | ||
Efficiency 94% | ||
Output Current 33.3A | ||
Hazardous Area Certification CE, EN, UKCA, UL | ||
Minimum Input Voltage 90V | ||
- COO (Country of Origin):
- VN
The XP Power Universal AC input CCL400 provides 400W of convection cooled output power over the temperature range -40°C to +50°C with derating to +70°C. The temperature range can be extended by the use of conduction cooling to the full 400W at +70°C.
85 VAC to 264 VAC Input
5V Standby
