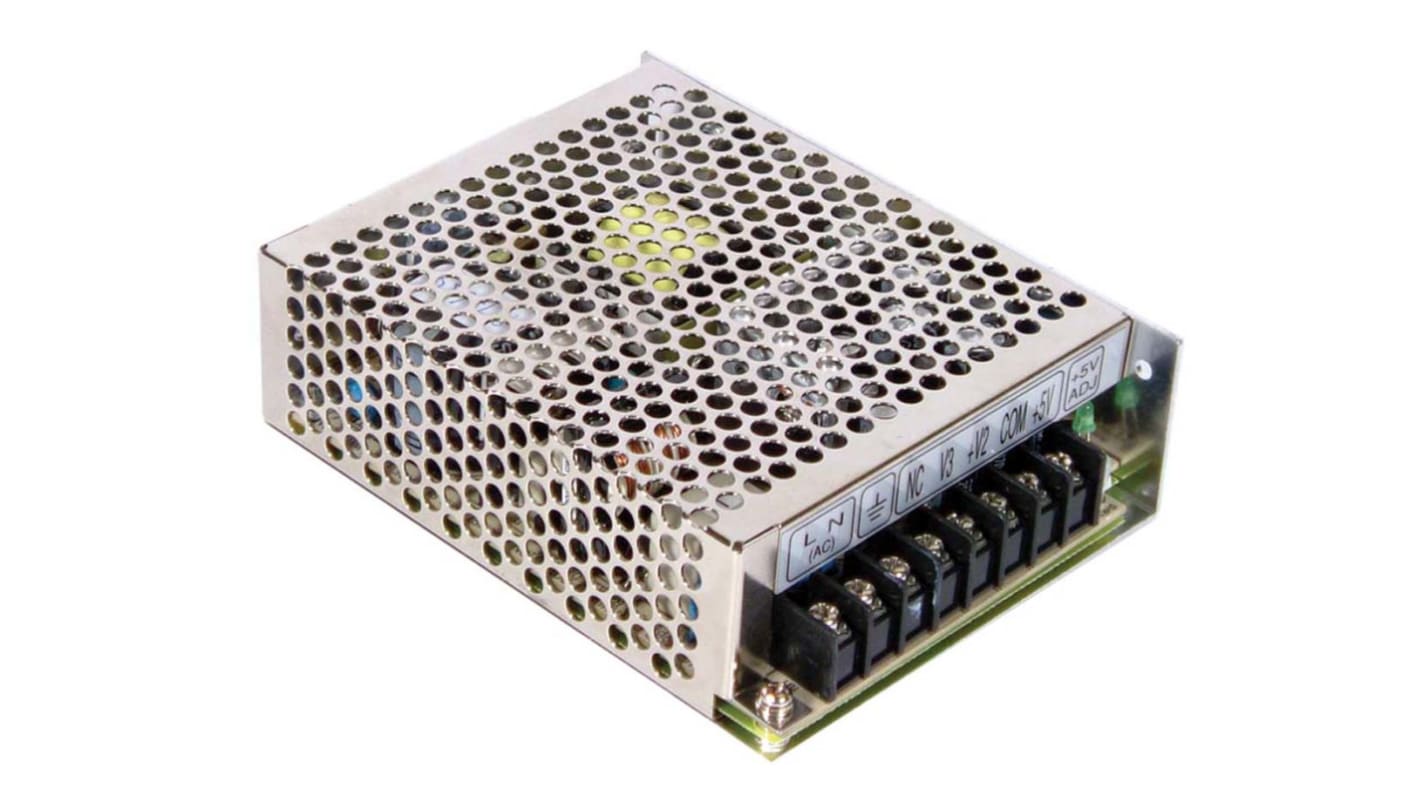

MEAN WELL Switching Power Supply, RT-65A, ±5 V dc, ±12 V dc, 2.8 A, 6 A, 500mA, 66W, Triple Output, 125 → 373 V
- RS Stock No.:
- 413-594
- Mfr. Part No.:
- RT-65A
- Brand:
- MEAN WELL
15 In stock - FREE next working day delivery available
9 available from Europe for delivery within 2 working day(s).
Price Each
£41.70
(exc. VAT)
£50.04
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £41.70 |
5 - 9 | £38.74 |
10 - 24 | £35.78 |
25 - 49 | £34.11 |
50 + | £33.24 |
- RS Stock No.:
- 413-594
- Mfr. Part No.:
- RT-65A
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RT Series Triple Output Power Supply
High efficiency, long life and high reliability
Low profile, high power density
High operating temperature up to 70°C
105°C long life electrolytic capacitors
Easy installation - screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
100% full load burn-in test
Short circuit, over-load and over-voltage protection
Low profile, high power density
High operating temperature up to 70°C
105°C long life electrolytic capacitors
Easy installation - screw terminals
Adjustable output voltage (only on output 1, ±10%)
Power on LED indicator
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
100% full load burn-in test
Short circuit, over-load and over-voltage protection
Note
De-rate above 40°C operating temperature (except RT-125 de-rate above 50°C).
MTBF to MIL-HDBK-217F (25°C).2
MTBF to MIL-HDBK-217F (25°C).2
Standards
EN 60950-1, UL 60950-1
Approvals
TUV, CB, UL recognised component for Canada & US
Specifications
Attribute | Value |
---|---|
Output Voltage | ±5 V dc, ±12 V dc |
Output Current | 2.8 A, 6 A, 500mA |
Power Rating | 66W |
Number of Outputs | 3 |
Input Voltage | 125 → 373 V dc, 88 → 264 V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 129mm |
Width | 98mm |
Depth | 38mm |
Efficiency | 77% |
Maximum Temperature | +70°C |
Minimum Temperature | -25°C |
Weight | 440g |
