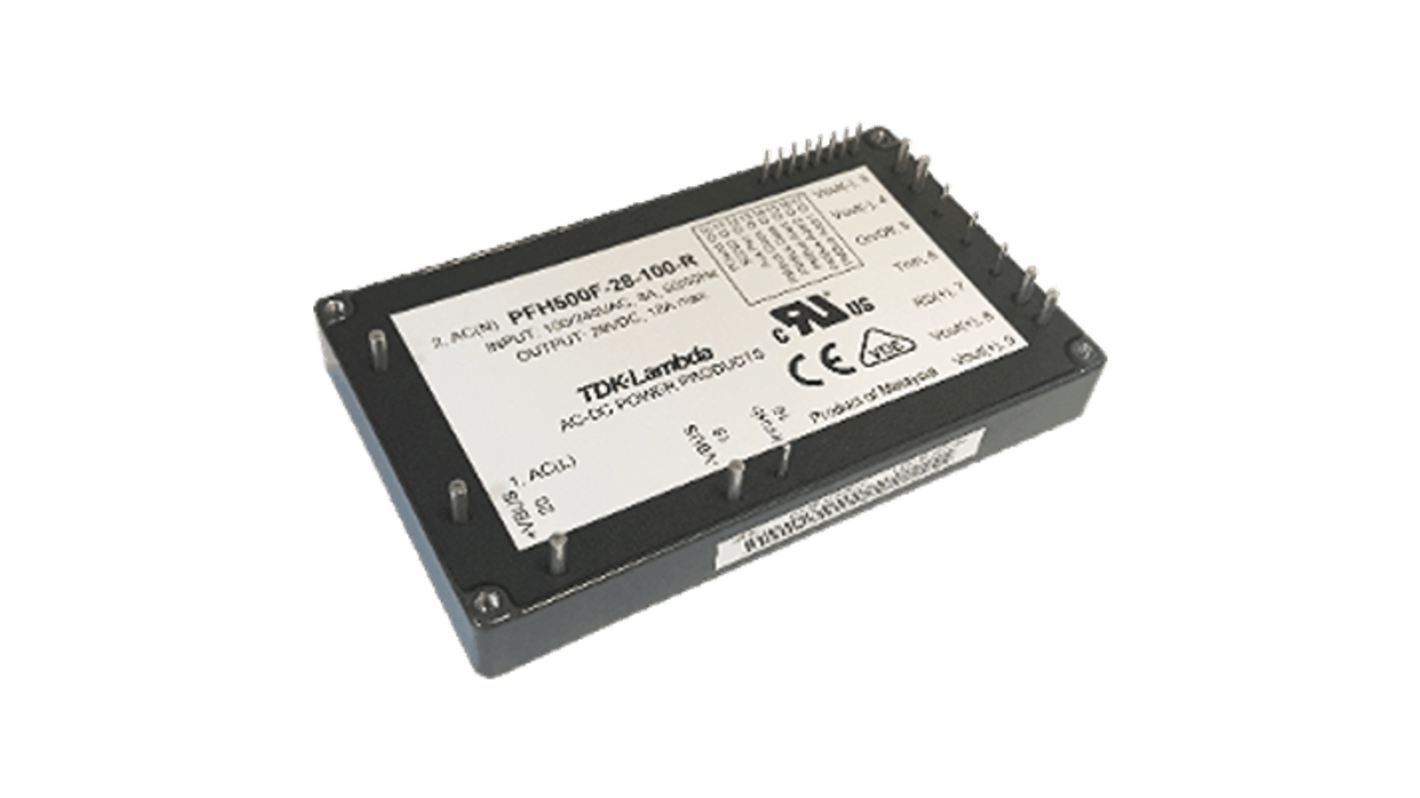

TDK-Lambda AC/DC Power Supply, PFH500F-28-000-R 33.6V dc, 42A, 504 W, Input 85V ac to 265V ac
- RS Stock No.:
- 235-134
- Mfr. Part No.:
- PFH500F-28-000-R
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£231.71
(exc. VAT)
£278.05
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £231.71 |
*price indicative
- RS Stock No.:
- 235-134
- Mfr. Part No.:
- PFH500F-28-000-R
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | AC/DC Power Supply | |
| Maximum Output Voltage | 33.6V dc | |
| Number of Outputs | 1 | |
| Mount Type | PCB | |
| Power | 504W | |
| Minimum Operating Temperature | -40°C | |
| SMPS Output Current | 42A | |
| Maximum Operating Temperature | 100°C | |
| Length | 101.6mm | |
| Width | 61.0mm | |
| Depth | 13.3mm | |
| Weight | 225g | |
| Standards/Approvals | 60950-1, CE Mark and UKCA Mark, IEC/UL/CSA/EN62368-1 | |
| Maximum Input Voltage | 265V ac | |
| Series | PFH500F | |
| Efficiency | 92% | |
| Output Current | 18A | |
| Hazardous Area Certification | NO | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type AC/DC Power Supply | ||
Maximum Output Voltage 33.6V dc | ||
Number of Outputs 1 | ||
Mount Type PCB | ||
Power 504W | ||
Minimum Operating Temperature -40°C | ||
SMPS Output Current 42A | ||
Maximum Operating Temperature 100°C | ||
Length 101.6mm | ||
Width 61.0mm | ||
Depth 13.3mm | ||
Weight 225g | ||
Standards/Approvals 60950-1, CE Mark and UKCA Mark, IEC/UL/CSA/EN62368-1 | ||
Maximum Input Voltage 265V ac | ||
Series PFH500F | ||
Efficiency 92% | ||
Output Current 18A | ||
Hazardous Area Certification NO | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- MY
The TDK-Lambda The 4 inch x 2.4 inch footprint, high efficiency PFH500 series of AC-DC power modules are used in environments where convection or forced air cooling is not viable. Suitable for use in outdoor enclosures or liquid cooled applications, these pcb mounted power modules accept a wide range AC input and deliver an adjustable, regulated output. High ambient temperatures can be tolerated as the conduction cooled baseplate can withstand -40 to 100°C temperatures. These third generation modules also have a PMBus interface with read/write capability for remote monitoring and programming.
Input Frequency 47 Hz to 63 Hz
Isolation Voltage 3 kVAC
Load Regulation Regulated
Metal Case
High Power Density
High Efficiency
