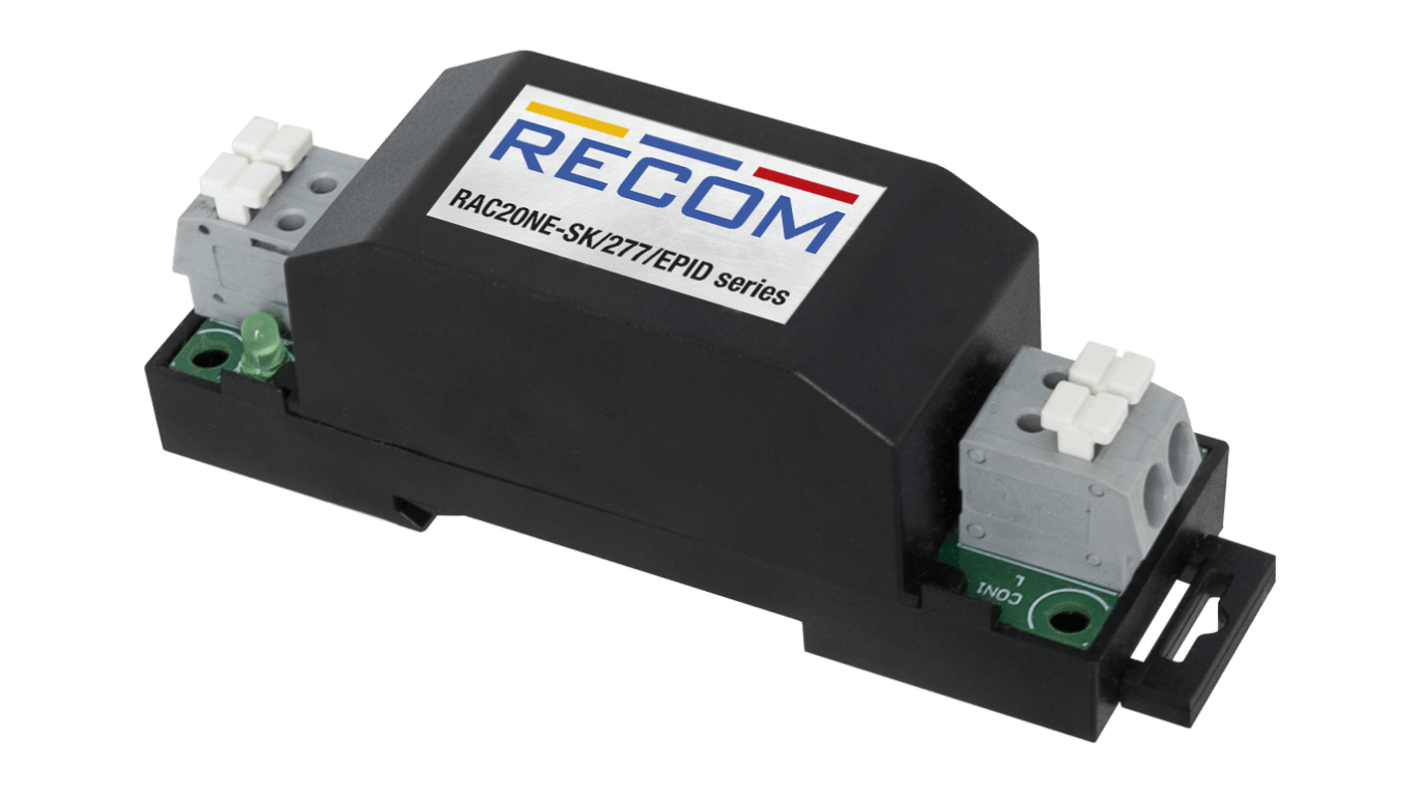

Recom, RAC20NE-12SK/277/EPID Power Supply 24V dc, 20 W 305V ac
- RS Stock No.:
- 218-987
- Mfr. Part No.:
- RAC20NE-12SK/277/EPID
- Brand:
- Recom
Subtotal (1 box of 22 units)*
£277.13
(exc. VAT)
£332.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £277.13 | £12.597 |
*price indicative
- RS Stock No.:
- 218-987
- Mfr. Part No.:
- RAC20NE-12SK/277/EPID
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Surface | |
| Power | 20W | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Width | 100mm | |
| Depth | 181mm | |
| Standards/Approvals | IECEN 6004, REACH, RoHS, UL, UL E6, UL IECEN 60947, UL NLRV, VDE, VDE 0660, IEC 60947, EN 60947, CSA UL 6094741, CSA Std. C. . 1405, CE, CSA Class .: 1105, CSAC. . 94, CSAC. . 609474114, CSA 0158, IECEN 60947 | |
| Weight | 585g | |
| Series | RAC20NE | |
| Efficiency | 87% | |
| Maximum Input Voltage | 305V ac | |
| Hazardous Area Certification | No | |
| Output Current | 1.667A | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Surface | ||
Power 20W | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Width 100mm | ||
Depth 181mm | ||
Standards/Approvals IECEN 6004, REACH, RoHS, UL, UL E6, UL IECEN 60947, UL NLRV, VDE, VDE 0660, IEC 60947, EN 60947, CSA UL 6094741, CSA Std. C. . 1405, CE, CSA Class .: 1105, CSAC. . 94, CSAC. . 609474114, CSA 0158, IECEN 60947 | ||
Weight 585g | ||
Series RAC20NE | ||
Efficiency 87% | ||
Maximum Input Voltage 305V ac | ||
Hazardous Area Certification No | ||
Output Current 1.667A | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN
The Recom Power supplies are shaped to flexibly fit into different mounting conditions, regardless of whether back panel mounting with screws or clipping onto DIN rails is required. Apart from the push-in terminals for tool-free connection of wire cross-sections of up to 2.5mm², the modules are IP40 ingress protected. Despite their extremely compact design, the class II units offer increased resistance to surges up to 2kV L-N and 4kV to earth as well as EMI-interference filters to withstand EN55032 Class “B” requirements under floating and earth reference load conditions such as PELV.
Wide input range
Full load power ratings to 55 degree C
23 Watt Boost Power
Optional CV or CC overcurrent limited
OVC III over voltage category up to 3000m
DIN Rail or screw mountable
IP40 ingress protected
3 year warranty
