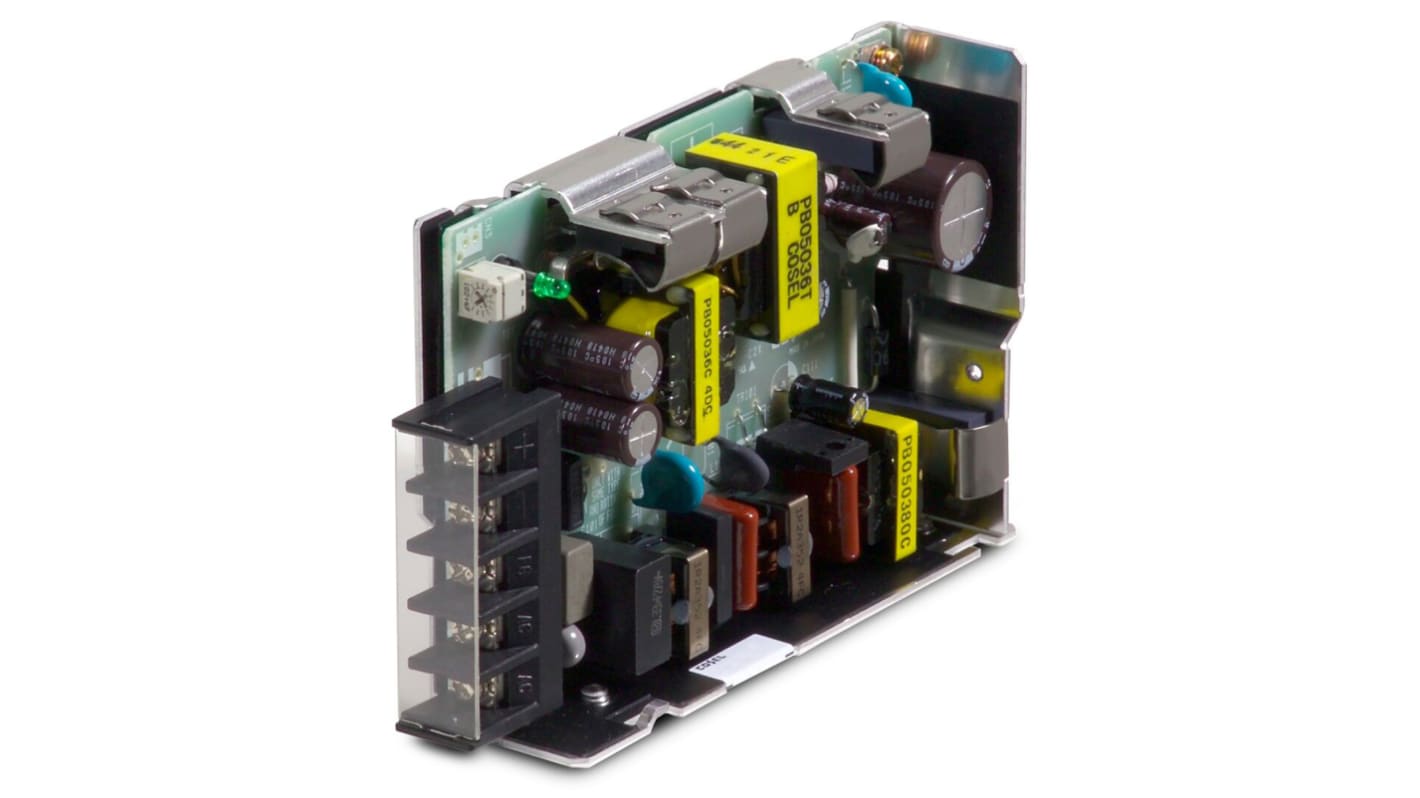

Cosel Switching Power Supply, PBA50F-48, 48V dc, 1.1A, 52.8W, 1 Output, 120 → 370 V dc, 85 → 264 V ac

RS Stock No.:: 102-008
Mfr. Part No.:: PBA50F-48
Brand:: Cosel

Cosel Switching Power Supply, PBA50F-48, 48V dc, 1.1A, 52.8W, 1 Output, 120 → 370 V dc, 85 → 264 V ac

2 In stock - FREE next working day delivery available

Price Each

£63.25

(exc. VAT)

£75.90

(inc. VAT)

Units	Per unit
1 - 4	£63.25
5 - 9	£61.35
10 - 24	£60.09
25 - 49	£58.82
50 +	£57.56

RS Stock No.:: 102-008
Mfr. Part No.:: PBA50F-48
Brand:: Cosel

Technical Reference

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

PBA Series with Single 50-300W output

The PBA series of switch mode power supplies from Cosel are lightweight and incredibly compact. They are 35% to 65% smaller in volume than conventional products of the same type. With a universal input of 85 V ac to 264 V ac, the PBA series of switch mode power supplies is versatile.

Features and Benefits:

Rated output wattage of 10 W to 1500 W

Overcurrent and overvoltage protection

Harmonic attenuator

Convection cooled or fan cooled depending on model

PBA50F to PBA150F models have increased efficiency due to synchronous rectification technology

PBA300F to PBA1500F models have parallel operation and parallel redundancy operation. They also feature remote ON/OFF, a fan alarm, and remote sensing among other functions.

Product Applications:

Suitable applications include automated machinery and semiconductor equipment.

Note

Models that include ventilated cover have the Cosel part number end with -N.
Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations

Approvals

UL, C-UL, EAMSL compliant, IEC61000-3-2, CE

Standards

(At only AC input) UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Conducted noise: Complies with FCC Part15 class B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B (additional EMI/EMC filter required to meet Class B for PBA1500F models)
Harmonic attenuator complies with IEC61000-3-2 (PBA10F, 15F and 30F models - not built into active filter)

Specifications

Attribute	Value
Output Voltage	48V dc
Output Current	1.1A
Power Rating	52.8W
Number of Outputs	1
Input Voltage	120 → 370 V dc, 85 → 264 V ac
Mounting Type	Chassis Mount
Package Type	Open Frame
Length	136.5mm
Width	34.5mm
Depth	82.5mm
Efficiency	83 %, 85 %
Maximum Temperature	+71°C
Weight	280g
Minimum Temperature	-10°C
