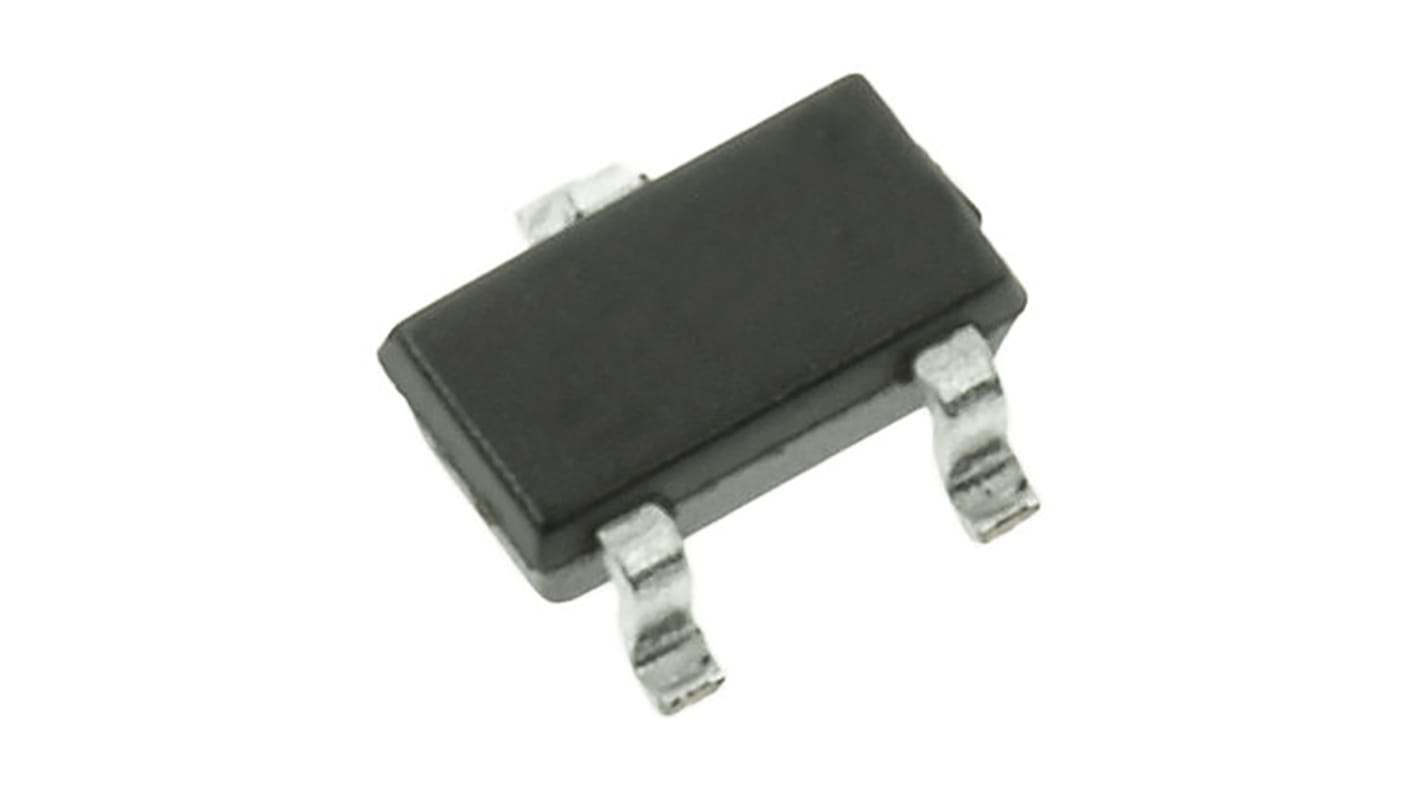

onsemi Dual Switching Diode, Common Cathode, 100 mA, 150 mA 40V, 3-Pin SOT-346 (SC-59) M1MA151WKG
- RS Stock No.:
- 805-1472
- Mfr. Part No.:
- M1MA151WKT1G
- Brand:
- ON Semiconductor
Discontinued
- RS Stock No.:
- 805-1472
- Mfr. Part No.:
- M1MA151WKT1G
- Brand:
- ON Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ON Semiconductor | |
| Maximum Forward Current | 100 mA, 150 mA | |
| Diode Configuration | Common Cathode | |
| Mounting Type | Surface Mount | |
| Number of Elements per Chip | 2 | |
| Maximum Reverse Voltage | 40V | |
| Package Type | SOT-346 (SC-59) | |
| Diode Technology | Silicon Junction | |
| Pin Count | 3 | |
| Maximum Forward Voltage Drop | 1.2V | |
| Maximum Diode Capacitance | 2pF | |
| Maximum Operating Temperature | +150 °C | |
| Length | 3.1mm | |
| Width | 1.7mm | |
| Height | 1.2mm | |
| Dimensions | 3.1 x 1.7 x 1.2mm | |
| Maximum Series Resistance @ Maximum IF | 100 Ω @ 100 mA | |
| Select all | ||
|---|---|---|
Brand ON Semiconductor | ||
Maximum Forward Current 100 mA, 150 mA | ||
Diode Configuration Common Cathode | ||
Mounting Type Surface Mount | ||
Number of Elements per Chip 2 | ||
Maximum Reverse Voltage 40V | ||
Package Type SOT-346 (SC-59) | ||
Diode Technology Silicon Junction | ||
Pin Count 3 | ||
Maximum Forward Voltage Drop 1.2V | ||
Maximum Diode Capacitance 2pF | ||
Maximum Operating Temperature +150 °C | ||
Length 3.1mm | ||
Width 1.7mm | ||
Height 1.2mm | ||
Dimensions 3.1 x 1.7 x 1.2mm | ||
Maximum Series Resistance @ Maximum IF 100 Ω @ 100 mA | ||
Small Signal Switching Diodes, ON Semiconductor
Standards
Products with S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
