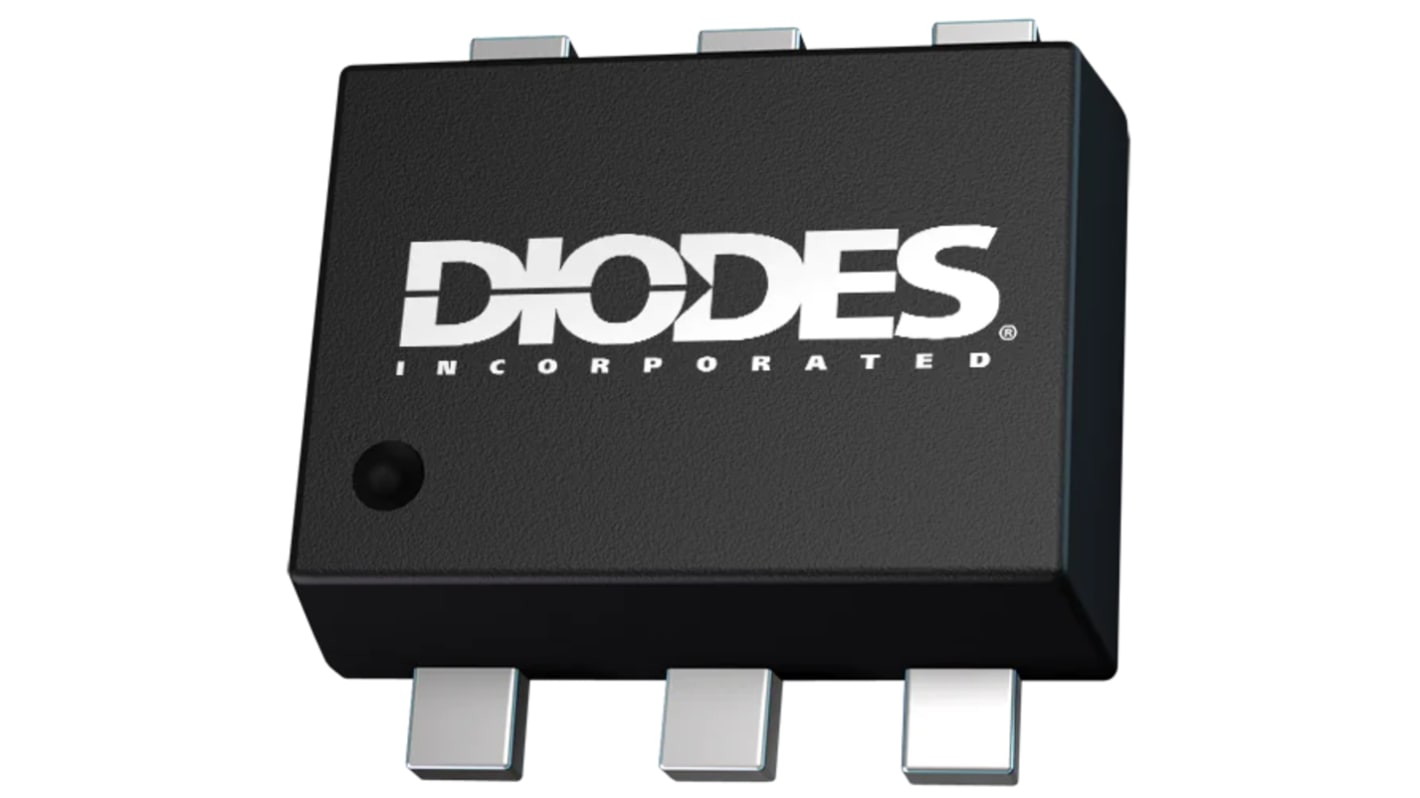

DiodesZetex Switching Diode, 200 mA, 6-Pin 100 V SOT-563 BAS16VAQ-7
- RS Stock No.:
- 254-8530
- Mfr. Part No.:
- BAS16VAQ-7
- Brand:
- DiodesZetex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 254-8530
- Mfr. Part No.:
- BAS16VAQ-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Maximum Forward Current If | 200mA | |
| Product Type | Switching Diode | |
| Mount Type | Surface | |
| Package Type | SOT-563 | |
| Pin Count | 6 | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Maximum Forward Voltage Vf | 1.25V | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A | |
| Maximum Power Dissipation Pd | 350mW | |
| Peak Reverse Recovery Time trr | 4ns | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 1.7mm | |
| Series | BAS16VAQ | |
| Length | 1.7mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Maximum Forward Current If 200mA | ||
Product Type Switching Diode | ||
Mount Type Surface | ||
Package Type SOT-563 | ||
Pin Count 6 | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 100V | ||
Maximum Forward Voltage Vf 1.25V | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 4A | ||
Maximum Power Dissipation Pd 350mW | ||
Peak Reverse Recovery Time trr 4ns | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 1.7mm | ||
Series BAS16VAQ | ||
Length 1.7mm | ||
Automotive Standard AEC-Q101 | ||
The DiodeZetex fast switching diode has low forward voltage, maximum of 0.715V at 1mA and fast reverse recovery, maximum of 4ns. It has thermally efficient copper alloy lead frame for high power dissipation.
Fast switching speed
Low leakage current
Triple isolated fast switching diode array
