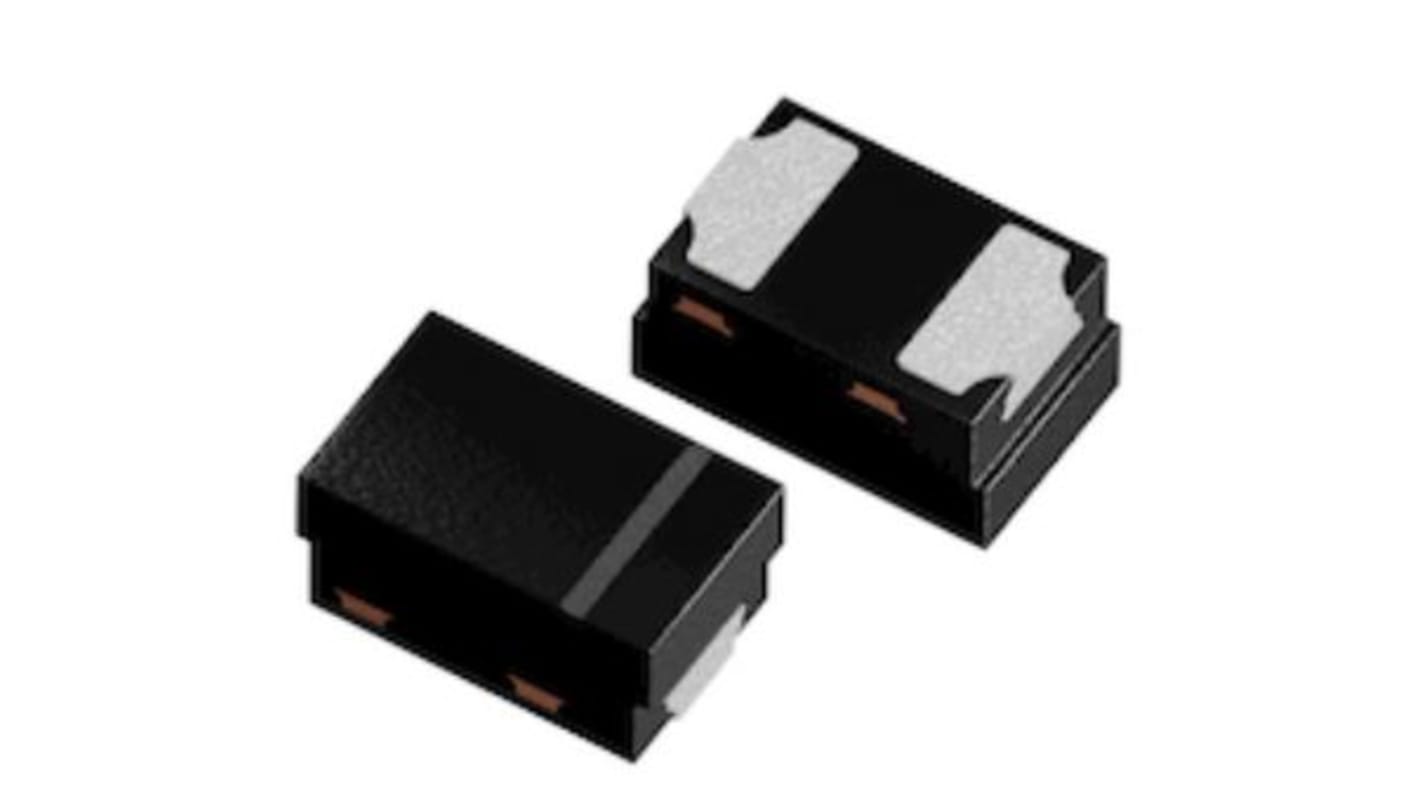

Vishay Switching Diode, Single, 250 mA, 2-Pin 100 V DFN1006-2A BAS16L-HG3-08
- RS Stock No.:
- 231-7257
- Mfr. Part No.:
- BAS16L-HG3-08
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 25 units)*
£2.675
(exc. VAT)
£3.20
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 May 2028
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 225 | £0.107 | £2.68 |
| 250 - 600 | £0.057 | £1.43 |
| 625 - 1225 | £0.054 | £1.35 |
| 1250 - 2475 | £0.038 | £0.95 |
| 2500 + | £0.032 | £0.80 |
*price indicative
- RS Stock No.:
- 231-7257
- Mfr. Part No.:
- BAS16L-HG3-08
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Maximum Forward Current If | 250mA | |
| Product Type | Switching Diode | |
| Diode Configuration | Single | |
| Mount Type | Surface | |
| Sub Type | Epitaxial Planar | |
| Package Type | DFN1006-2A | |
| Pin Count | 2 | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Maximum Power Dissipation Pd | 1.25W | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 1.25V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A | |
| Peak Reverse Recovery Time trr | 4ns | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 1.4mm | |
| Height | 0.45mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Maximum Forward Current If 250mA | ||
Product Type Switching Diode | ||
Diode Configuration Single | ||
Mount Type Surface | ||
Sub Type Epitaxial Planar | ||
Package Type DFN1006-2A | ||
Pin Count 2 | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 100V | ||
Maximum Power Dissipation Pd 1.25W | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 1.25V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 9A | ||
Peak Reverse Recovery Time trr 4ns | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 1.4mm | ||
Height 0.45mm | ||
Automotive Standard No | ||
The Vishay small signal fast switching diode with leadless ultra small DFN1006-2A package with better power dissipation than SOT-23. Soldering can be checked by standard visual inspection. No X-ray inspection necessary to meet automotive AOI requirements.
Silicon epitaxial planar diode
Fast switching diode
AEC-Q101 qualified available
