DiodesZetex Low Leakage Diode, Single, 225 mA, 2-Pin 350 V SOD-123 DHVSD3004S1-7
- RS Stock No.:
- 216-335
- Mfr. Part No.:
- DHVSD3004S1-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 unit)*
£0.07
(exc. VAT)
£0.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,804 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.07 |
| 10 + | £0.06 |
*price indicative
- RS Stock No.:
- 216-335
- Mfr. Part No.:
- DHVSD3004S1-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Maximum Forward Current If | 225mA | |
| Product Type | Low Leakage Diode | |
| Diode Configuration | Single | |
| Mount Type | Surface | |
| Package Type | SOD-123 | |
| Pin Count | 2 | |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 350V | |
| Peak Reverse Recovery Time trr | 50ns | |
| Maximum Power Dissipation Pd | 350mW | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 0.998V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Series | DHVSD3004S1 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Maximum Forward Current If 225mA | ||
Product Type Low Leakage Diode | ||
Diode Configuration Single | ||
Mount Type Surface | ||
Package Type SOD-123 | ||
Pin Count 2 | ||
Maximum Peak Reverse Repetitive Voltage Vrrm 350V | ||
Peak Reverse Recovery Time trr 50ns | ||
Maximum Power Dissipation Pd 350mW | ||
Peak Non-Repetitive Forward Surge Current Ifsm 4A | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 0.998V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Series DHVSD3004S1 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

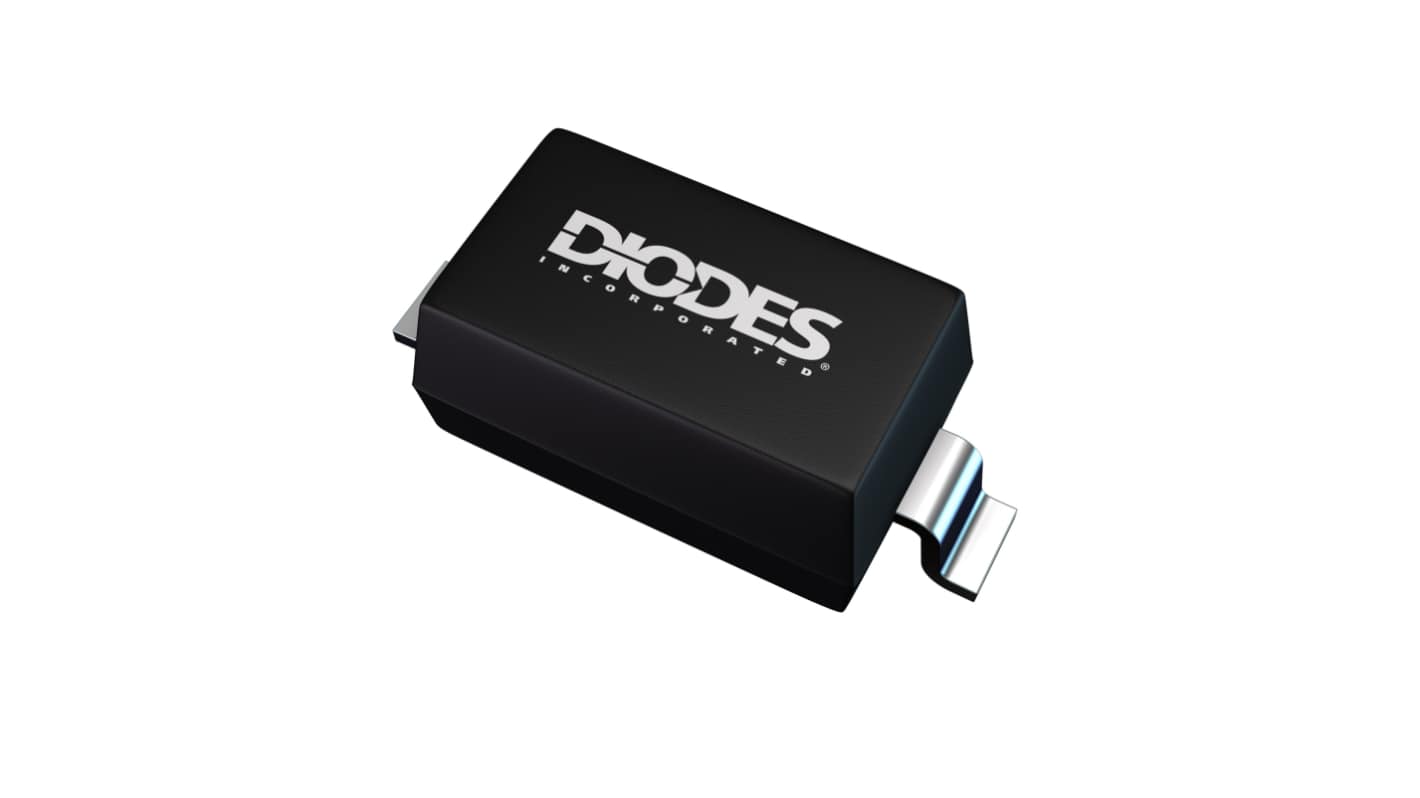

The DiodesZetex Surface Mount High Voltage Low Leakage Diode is housed in an SOD123 package MADE of moulded plastic, with a UL flammability rating of 94V-0. It has a moisture sensitivity level of 1, per J-STD-020. The terminals are solderable according to MIL-STD-202, Method 208, and feature lead free plating with a matte tin finish over an Alloy 42 lead frame. The diode is marked with a cathode band for polarity and has an approximate weight of 0.01 grams.
Low leakage current
Fast switching speed
High reverse breakdown voltage
Extremely low reverse leakage current at high temperature
Totally lead free and fully RoHS compliant
Halogen and antimony free
