Phoenix Contact, S-PT-2XEX-24DC Surge Protection Device 36 V dc, 25V ac Maximum Voltage Rating 20 kA Maximum Surge
- RS Stock No.:
- 852-9962
- Mfr. Part No.:
- 2800040
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£265.71
(exc. VAT)
£318.85
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £265.71 |
| 10 - 24 | £239.14 |
| 25 - 49 | £215.23 |
| 50 - 99 | £206.46 |
| 100 + | £201.14 |
*price indicative
- RS Stock No.:
- 852-9962
- Mfr. Part No.:
- 2800040
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Suppressor Type | Surge Arrester Protection Module | |
| Product Type | Surge Protection Device | |
| Maximum Voltage | 36, 25V dc | |
| Mount Type | Screw | |
| Maximum Surge Current | 20kA | |
| Series | S-PT-2XEX-24DC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 28mm | |
| Depth | 79mm | |
| Length | 28mm | |
| Standards/Approvals | EN 60079-11, IEC 60079-11 | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Suppressor Type Surge Arrester Protection Module | ||
Product Type Surge Protection Device | ||
Maximum Voltage 36, 25V dc | ||
Mount Type Screw | ||
Maximum Surge Current 20kA | ||
Series S-PT-2XEX-24DC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Height 28mm | ||
Depth 79mm | ||
Length 28mm | ||
Standards/Approvals EN 60079-11, IEC 60079-11 | ||
Hazardous Area Certification NO | ||

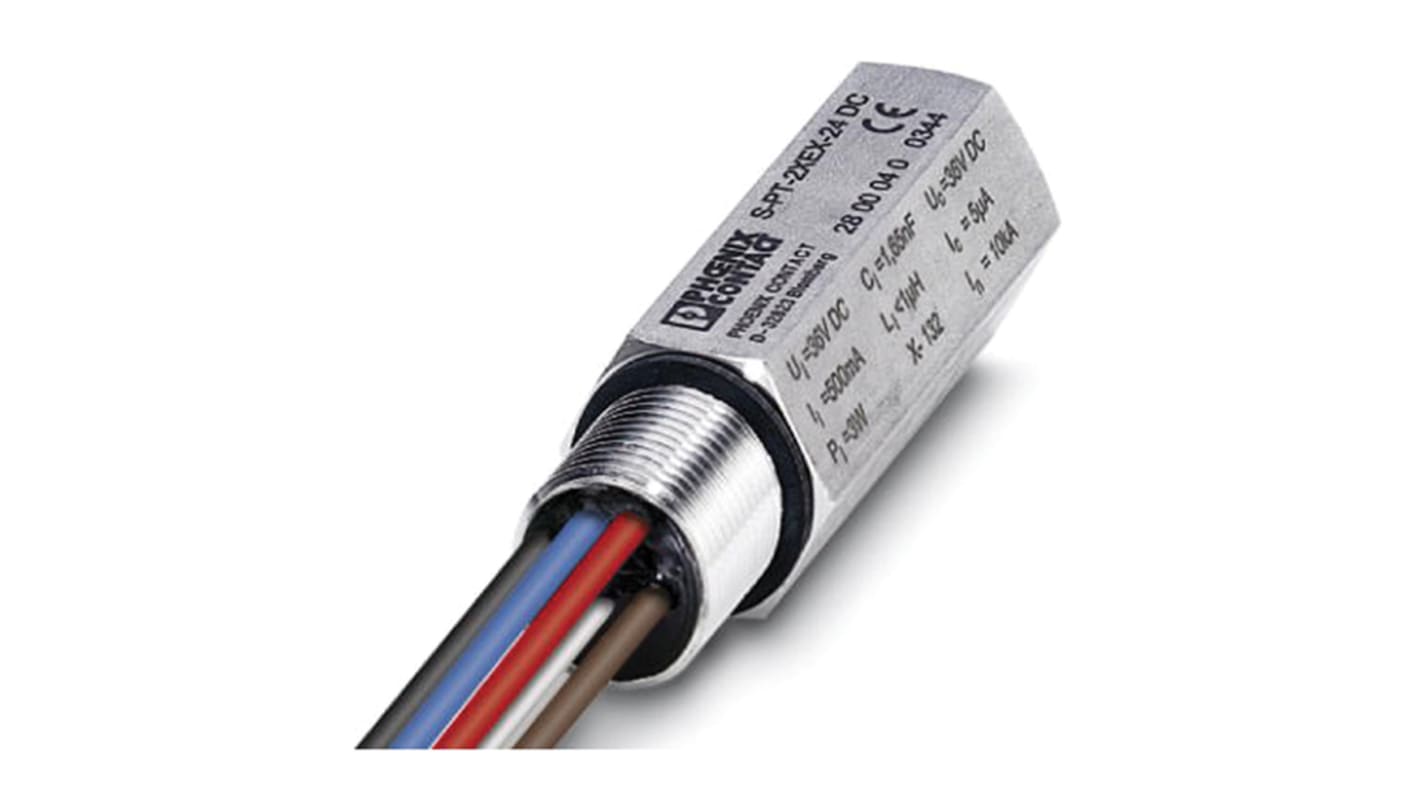

Surge protection for two floating signal circuits in screw-on module with IP67 protection for sensor heads, connection M20 x 1.5. Tested in acc. with the protection types in Ex areas Ex d / Ex tD / Ex ia IIC / Ex iaD. Can be used inside of a fieldbus-system according to the FISCO concept.
Arresters in hexagonal pipe with various outer threads
