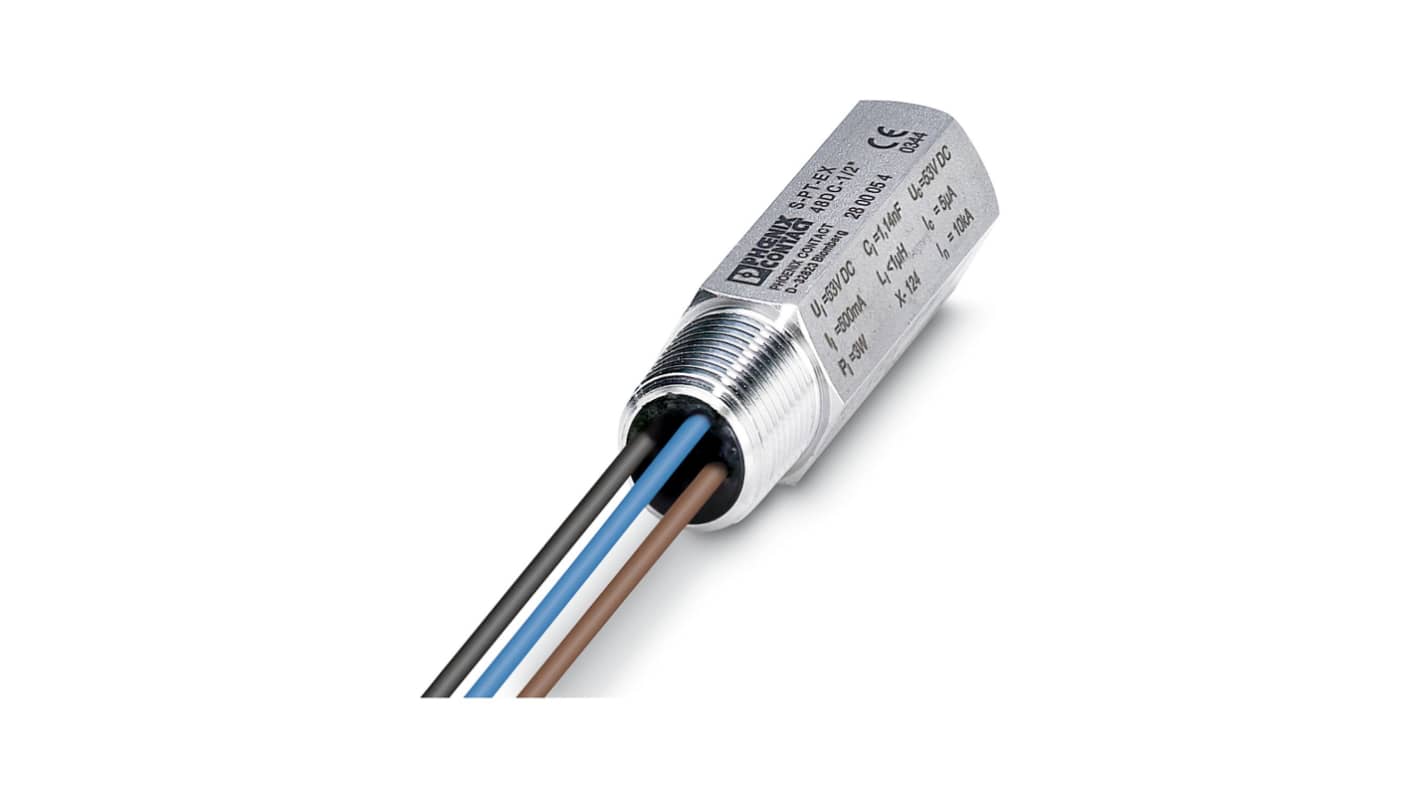

Phoenix Contact, S-PT-EX-48DC-1/2 Surge Protection Device 53 V dc, 37V ac Maximum Voltage Rating 20 kA Maximum Surge
- RS Stock No.:
- 852-9975
- Mfr. Part No.:
- 2800054
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£177.09
(exc. VAT)
£212.51
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £177.09 |
| 10 - 24 | £162.39 |
| 25 - 49 | £158.14 |
| 50 - 99 | £154.25 |
| 100 + | £150.35 |
*price indicative
- RS Stock No.:
- 852-9975
- Mfr. Part No.:
- 2800054
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Suppressor Type | Surge Arrester Protection Module | |
| Product Type | Surge Protection Device | |
| Maximum Voltage | 53, 37V dc | |
| Mount Type | Screw | |
| Maximum Surge Current | 20kA | |
| Series | S-PT-EX-48DC-1/2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Depth | 79mm | |
| Height | 28mm | |
| Length | 28mm | |
| Standards/Approvals | EN 60079-11, IEC 60079-11 | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Suppressor Type Surge Arrester Protection Module | ||
Product Type Surge Protection Device | ||
Maximum Voltage 53, 37V dc | ||
Mount Type Screw | ||
Maximum Surge Current 20kA | ||
Series S-PT-EX-48DC-1/2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Depth 79mm | ||
Height 28mm | ||
Length 28mm | ||
Standards/Approvals EN 60079-11, IEC 60079-11 | ||
Hazardous Area Certification NO | ||
Surge protection for one floating signal circuit in screw-on module with IP67 protection for sensor heads, connection ½-inch 14 NPT. Tested in acc. with the protection types in Ex areas Ex d / Ex tD / Ex ia IIC / Ex iaD. Can be used inside of a fieldbus-system according to the FISCO concept.
Arresters in hexagonal pipe with various outer threads
