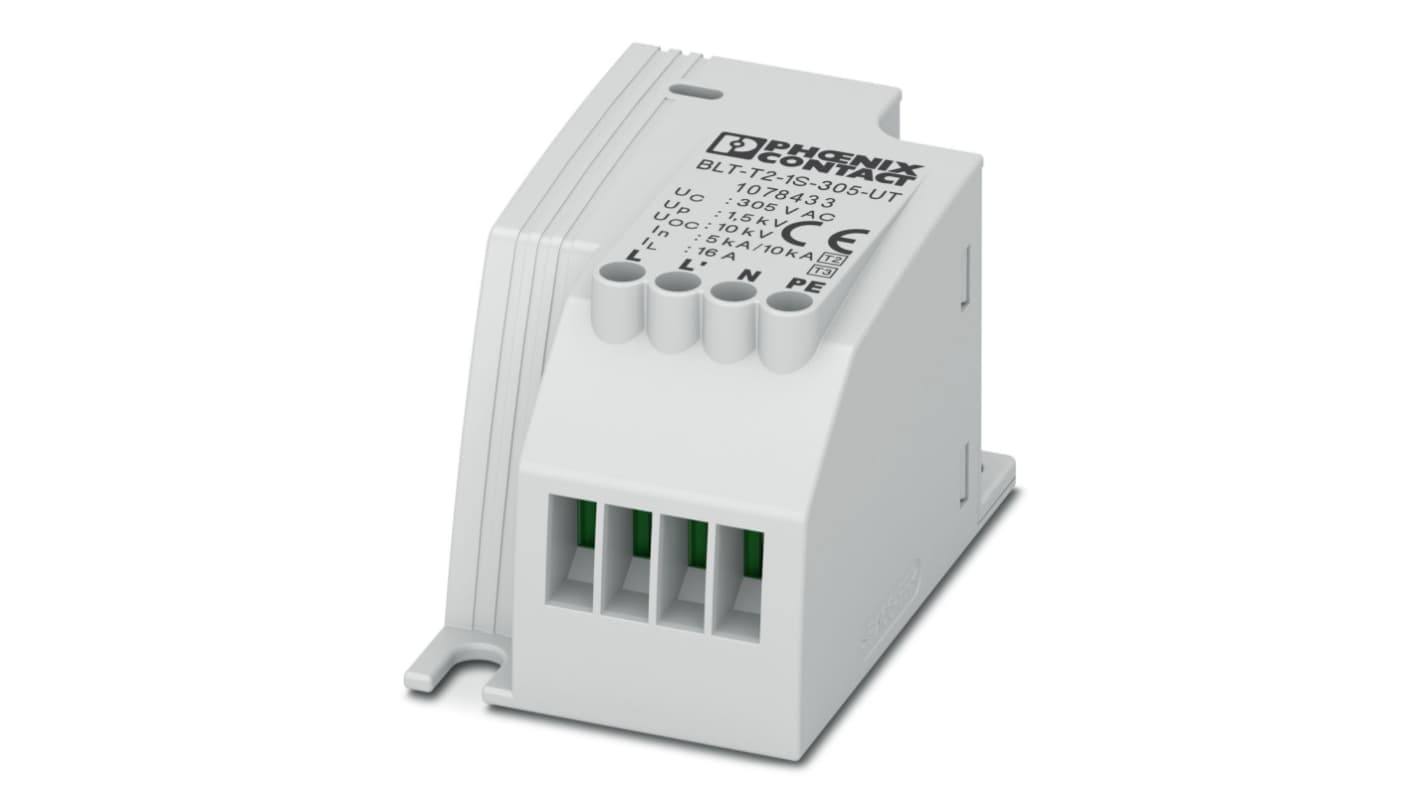

Phoenix Contact, BLT-T2-1S-305-UT Surge Suppressor Unit 230V ac Maximum Voltage Rating 10 kA Maximum Surge Current Surge
- RS Stock No.:
- 239-5064
- Mfr. Part No.:
- 1078433
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£417.84
(exc. VAT)
£501.41
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £41.784 | £417.84 |
*price indicative
- RS Stock No.:
- 239-5064
- Mfr. Part No.:
- 1078433
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Suppressor Type | Surge Arrester | |
| Product Type | Surge Suppressor Unit | |
| Maximum Voltage | 230V ac | |
| Mount Type | Screw | |
| Maximum Surge Current | 10kA | |
| Series | BLT-T2-1S-305-UT | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Depth | 34mm | |
| Height | 56mm | |
| Standards/Approvals | IEC 61643-11, EN 61643-11 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Suppressor Type Surge Arrester | ||
Product Type Surge Suppressor Unit | ||
Maximum Voltage 230V ac | ||
Mount Type Screw | ||
Maximum Surge Current 10kA | ||
Series BLT-T2-1S-305-UT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Depth 34mm | ||
Height 56mm | ||
Standards/Approvals IEC 61643-11, EN 61643-11 | ||
Hazardous Area Certification No | ||
The Phoenix Contact Type 2 surge arrester for universal mounting in lights. It features flexible installation, fixed via integrated elongated holes, compact design, Optical, mechanical status indicator.
Mounting type 4 mm screw
Colour light grey RAL 7035
Housing material PA 6.6
Degree of pollution 2
Distance between live and grounded parts 3 mm
Nominal voltage UN 100 V AC to 230 V AC (TN-S)
