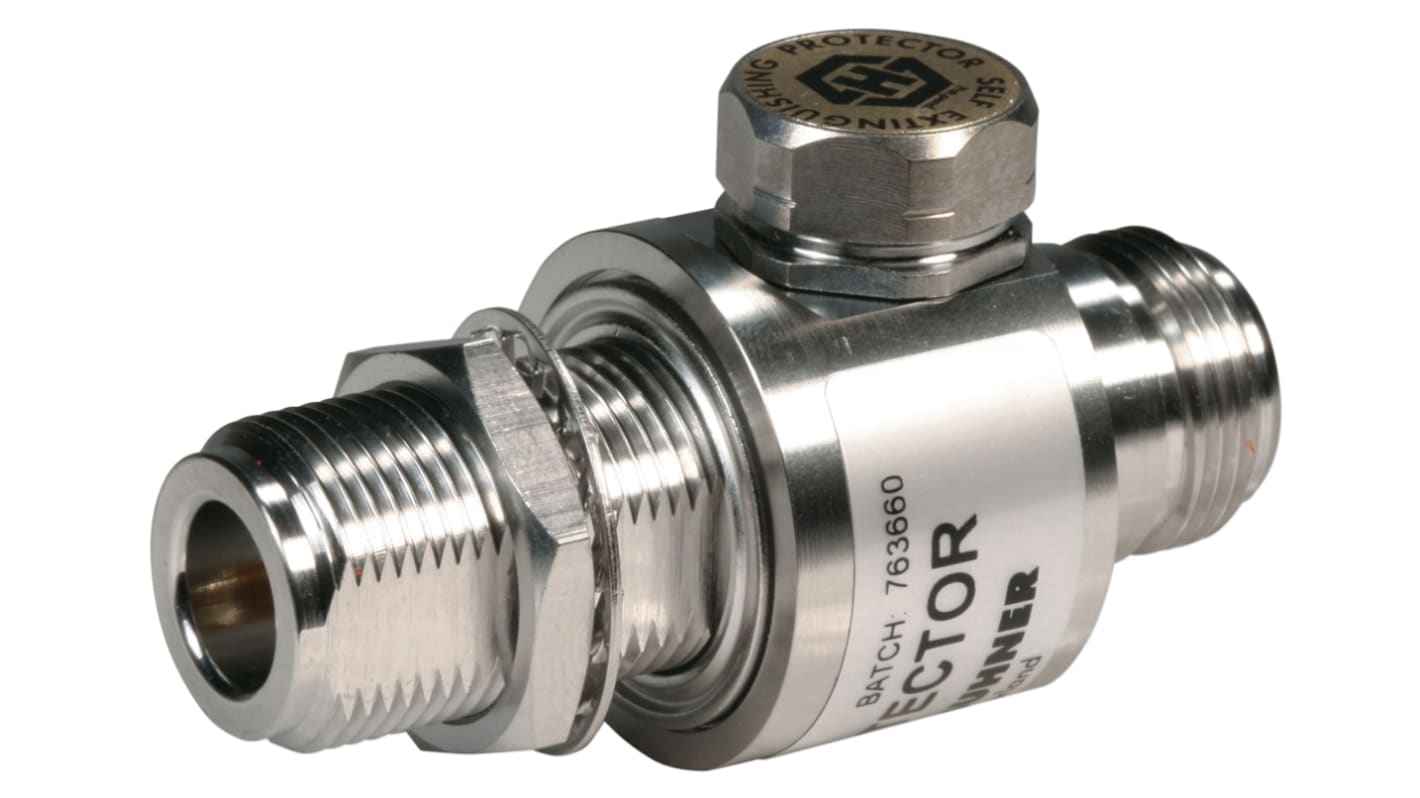

Huber+Suhner, SSC-N230 Coaxial Surge Protection 170V dc Maximum Voltage Rating 20 kA Maximum Surge Current Coaxial Surge
- RS Stock No.:
- 132-8147
- Mfr. Part No.:
- SSC-N230/02
- Brand:
- Huber+Suhner
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 132-8147
- Mfr. Part No.:
- SSC-N230/02
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Suppressor Type | Coaxial Surge Protector | |
| Product Type | Coaxial Surge Protection | |
| Maximum Voltage | 170V dc | |
| Mount Type | Axial | |
| Maximum Surge Current | 20kA | |
| Series | SSC-N230 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Depth | 25.9mm | |
| Standards/Approvals | RoHS | |
| Length | 76.4mm | |
| Height | 25.9mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Suppressor Type Coaxial Surge Protector | ||
Product Type Coaxial Surge Protection | ||
Maximum Voltage 170V dc | ||
Mount Type Axial | ||
Maximum Surge Current 20kA | ||
Series SSC-N230 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Depth 25.9mm | ||
Standards/Approvals RoHS | ||
Length 76.4mm | ||
Height 25.9mm | ||
Hazardous Area Certification No | ||
Huber+ Suhner GDT Coaxial Surge Protection Devices
A range of 50 Ω N type coaxial surge devices designed to protect RF and communications equipment from lightning strikes and high-voltage surges. These robust surge protectors have brass housings with a tri-metal plating and gold plated contacts. The coaxial surge protectors are fully sealed to IP68 when in their coupled state making them ideal for the harshest of environments. Available in female to female and male to female interface configurations.
Features and Benefits
• IP68 ingress protection
• Replaceable gas discharge tubes
• O-Ring sealed to panel
• Easy to install
• Excellent RF performance
