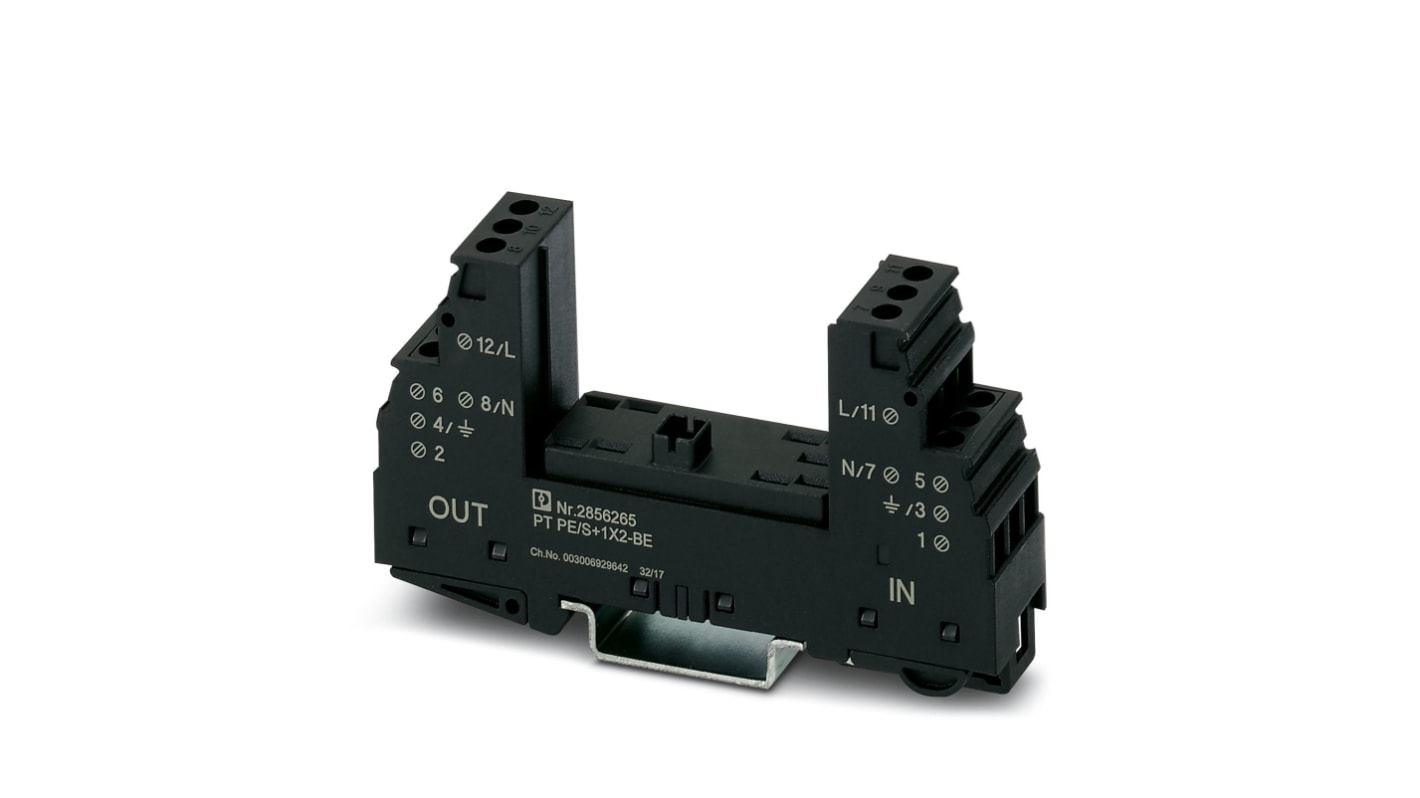

Phoenix Contact, PT Surge Protection Device Base Element
- RS Stock No.:
- 170-554
- Mfr. Part No.:
- 2856265
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£623.27
(exc. VAT)
£747.92
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £62.327 | £623.27 |
*price indicative
- RS Stock No.:
- 170-554
- Mfr. Part No.:
- 2856265
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Suppressor Type | Base Element | |
| Product Type | Surge Protection Device | |
| Mount Type | DIN Rail | |
| Series | PT | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 90mm | |
| Standards/Approvals | EN 61643-21/A1 | |
| Length | 17.7mm | |
| Depth | 52mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Suppressor Type Base Element | ||
Product Type Surge Protection Device | ||
Mount Type DIN Rail | ||
Series PT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 90mm | ||
Standards/Approvals EN 61643-21/A1 | ||
Length 17.7mm | ||
Depth 52mm | ||
Hazardous Area Certification No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Phoenix Contact surge protection base-element is designed for the power supply unit and one 2-wire floating signal circuit. With a housing width of 17.5 mm, it offers maximum ease of maintenance with a 2-piece design. The impedance-neutral insertion and removal of protective plugs ensure that the signal is not influenced during maintenance work. It is compatible with DIN rail mounting, making it easy to install and use in MCR applications.
Impedance-neutral for signal integrity
Compatible with DIN rail mounting
Ensures ease of installation and removal
Reliable performance for signal circuits
Facilitates maintenance with minimal disruption
Secure mounting for stable operation
