Phoenix Contact, PT Surge Protection Device 24V dc Maximum Voltage Rating Surge Protection
- RS Stock No.:
- 170-552
- Mfr. Part No.:
- 2839486
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£614.28
(exc. VAT)
£737.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £61.428 | £614.28 |
*price indicative
- RS Stock No.:
- 170-552
- Mfr. Part No.:
- 2839486
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Suppressor Type | Surge Protection | |
| Product Type | Surge Protection Device | |
| Maximum Voltage | 24V dc | |
| Mount Type | DIN Rail | |
| Packaging | 10 pieces | |
| Series | PT | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EN 61643-21 A2:2013 | |
| Depth | 51.5mm | |
| Height | 90mm | |
| Hazardous Area Certification | Ex ia IIC T4 to T6 ATEX | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Suppressor Type Surge Protection | ||
Product Type Surge Protection Device | ||
Maximum Voltage 24V dc | ||
Mount Type DIN Rail | ||
Packaging 10 pieces | ||
Series PT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EN 61643-21 A2:2013 | ||
Depth 51.5mm | ||
Height 90mm | ||
Hazardous Area Certification Ex ia IIC T4 to T6 ATEX | ||

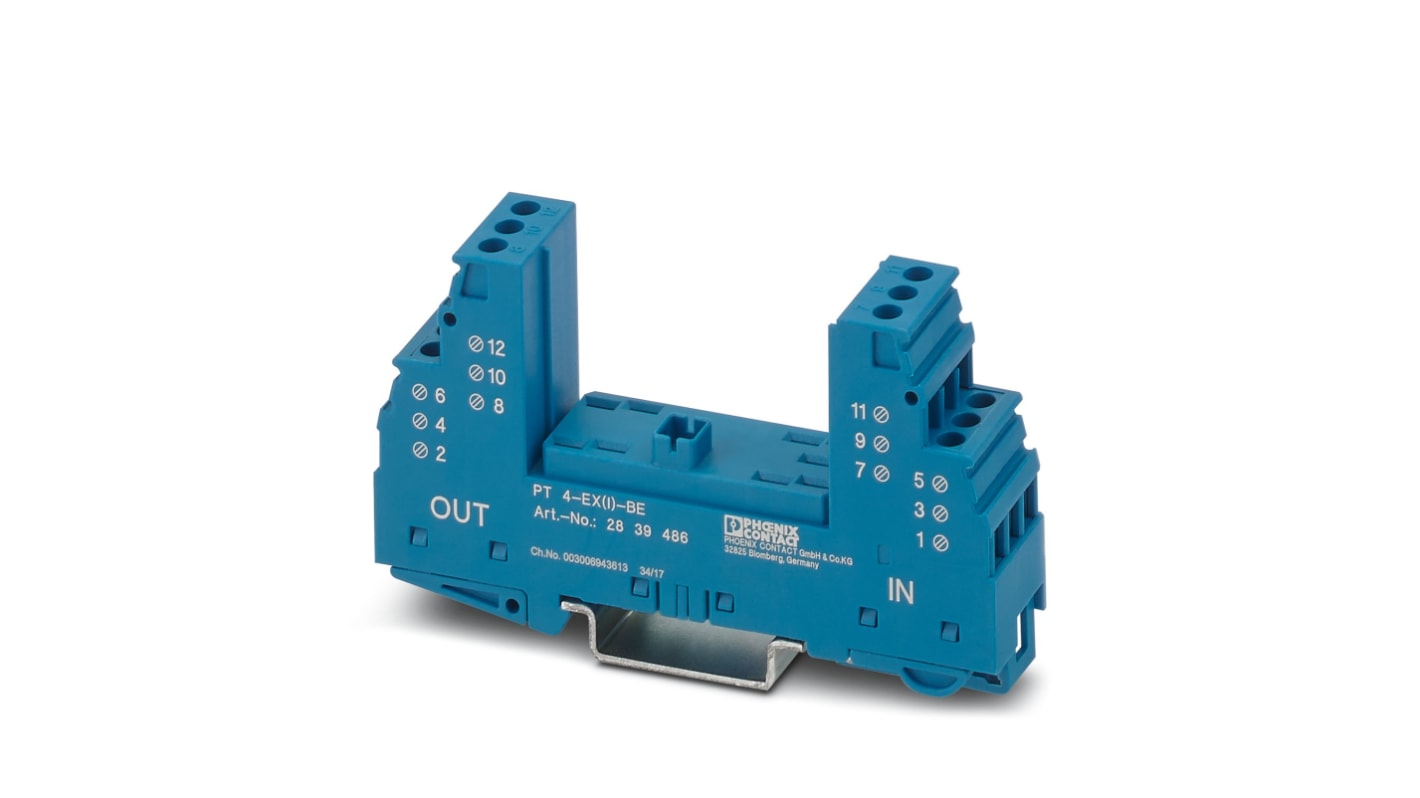

The Phoenix Contact surge protection base-element is designed to provide maximum ease of maintenance with a 2-piece design. It offers impedance-neutral insertion and removal of protective plugs to ensure the signal is not influenced during maintenance work. With a nominal voltage of 24 V DC, this base element is suitable for a 4-core floating EEx ia signal circuit, offering easy selection for all possible demands in MCR applications. The compact housing width of 17.5 mm allows for mounting on NS 35/7.5 and NS 35/15, making it a versatile solution for various applications.
Simplifies maintenance with two-piece structure
Impedance-neutral for easy plug handling
Narrow housing width for versatile mounting
Nominal voltage suitable for signal circuits
Easy selection for MCR applications
Reliable performance with minimal effort
