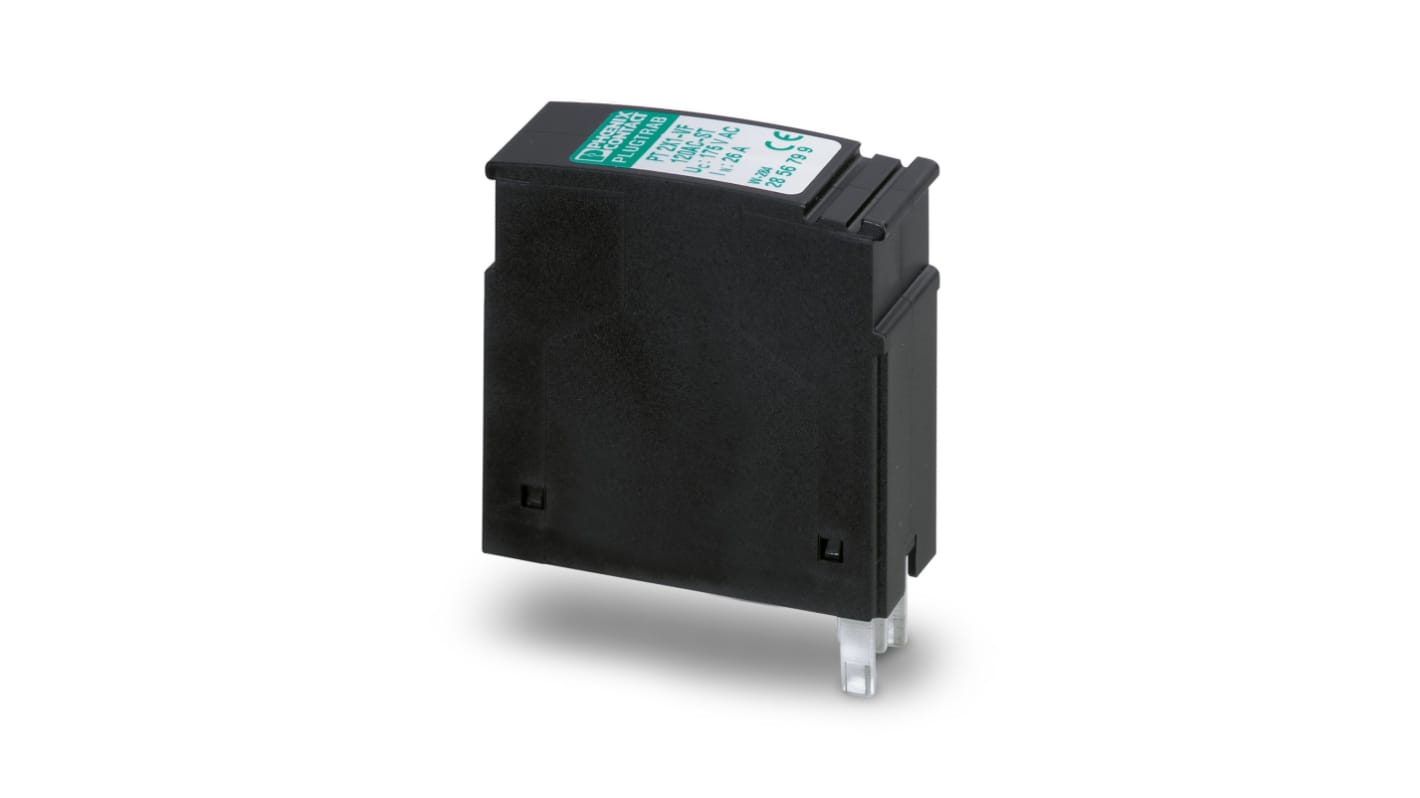

Phoenix Contact, PT Surge Protection Plug 120V ac Maximum Voltage Rating 8 A Maximum Surge Current
- RS Stock No.:
- 130-210
- Mfr. Part No.:
- 2856799
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£165.64
(exc. VAT)
£198.77
(inc. VAT)
- RS Stock No.:
- 130-210
- Mfr. Part No.:
- 2856799
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Surge Protection Plug | |
| Maximum Voltage | 120V ac | |
| Mount Type | Terminal | |
| Maximum Surge Current | 8A | |
| Series | PT | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | IEC 60664-1 / DIN VDE 0110-1, EN 61643-21 Note 2002, IEC 61643-21 Note 2002 | |
| Depth | 51.7mm | |
| Height | 44.8mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Surge Protection Plug | ||
Maximum Voltage 120V ac | ||
Mount Type Terminal | ||
Maximum Surge Current 8A | ||
Series PT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals IEC 60664-1 / DIN VDE 0110-1, EN 61643-21 Note 2002, IEC 61643-21 Note 2002 | ||
Depth 51.7mm | ||
Height 44.8mm | ||
Hazardous Area Certification No | ||
The Phoenix Contact Surge Protection Plug is designed for MCR technology applications. It features a two position male connector with insulation characteristics suitable for overvoltage category III. The compact design allows for easy maintenance and testing with pluggable protective modules, ensuring maximum ease of use.
Maximum ease of maintenance with 2 piece design
Impedance neutral insertion and removal of protective plugs
Coarse and fine protection for two signal wires
Compact design for easy installation
