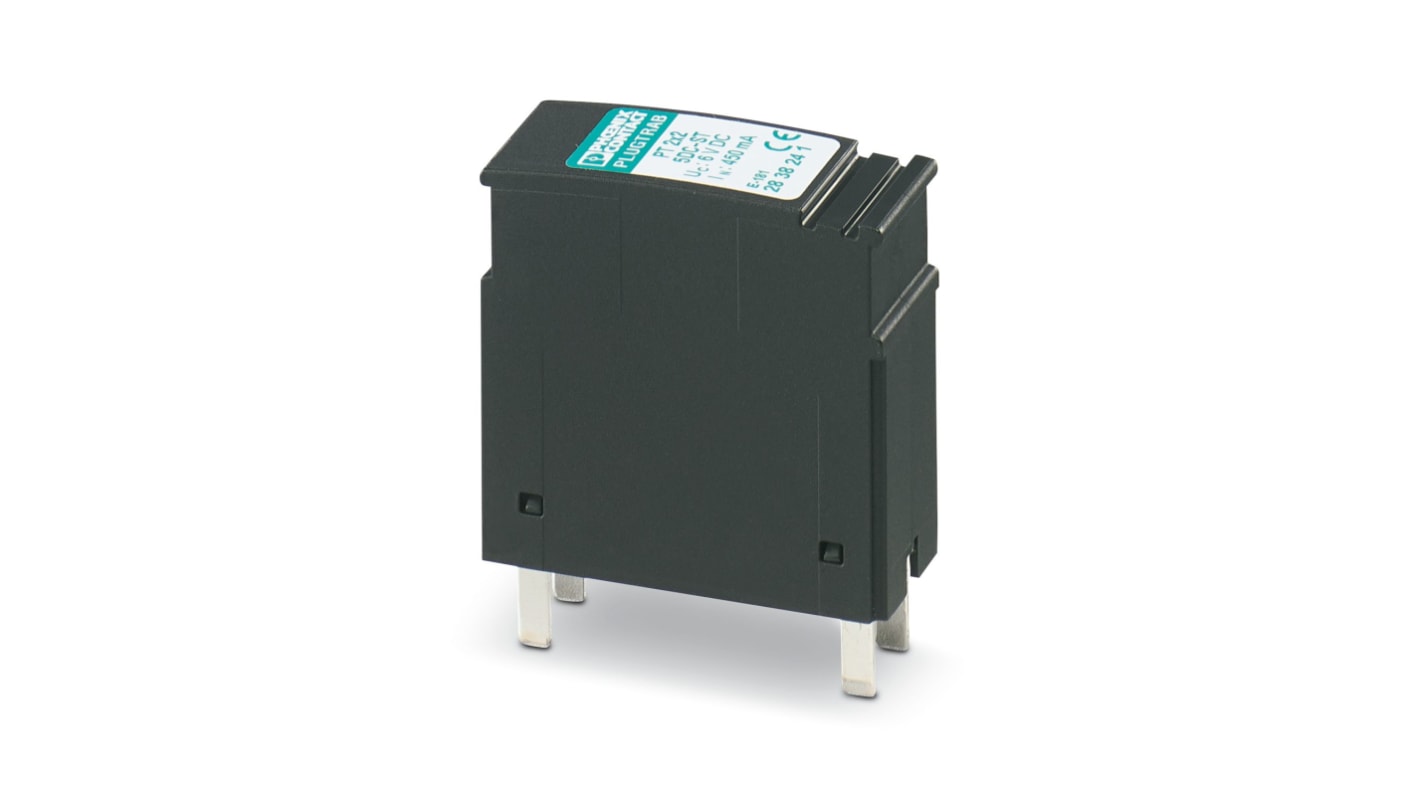

Phoenix Contact, PT Surge Protection Plug 5V dc Maximum Voltage Rating 10 A Maximum Surge Current
- RS Stock No.:
- 135-830
- Mfr. Part No.:
- 2838241
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£140.057
(exc. VAT)
£168.068
(inc. VAT)
- RS Stock No.:
- 135-830
- Mfr. Part No.:
- 2838241
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Surge Protection Plug | |
| Maximum Voltage | 5V dc | |
| Mount Type | Terminal | |
| Maximum Surge Current | 10A | |
| Series | PT | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC 60664-1, VDE 0110-1, UL 497B, IEC 61643-21, DIN EN 61643-21 | |
| Height | 44.8mm | |
| Depth | 51.7mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Surge Protection Plug | ||
Maximum Voltage 5V dc | ||
Mount Type Terminal | ||
Maximum Surge Current 10A | ||
Series PT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC 60664-1, VDE 0110-1, UL 497B, IEC 61643-21, DIN EN 61643-21 | ||
Height 44.8mm | ||
Depth 51.7mm | ||
Hazardous Area Certification No | ||
The Phoenix Contact Surge Protection Plug is designed for MCR technology is ideal for use in applications requiring protection for two 2 wire floating signal circuits with a 5V DC nominal voltage. The plug features impedance neutral insertion and removal of protective modules, ensuring minimal influence on the signal during maintenance work.
Maximum ease of maintenance with 2 piece design
Impedance neutral insertion and removal of protective plugs
Coarse and fine protection for two signal wires
Compact design for easy installation
