Bourns 50Ω, 0603 (1608M) Thick Film SMD Resistor ±5% 35W - PWR220T-35-50R0J
- RS Stock No.:
- 796-2570
- Mfr. Part No.:
- PWR220T-35-50R0J
- Brand:
- Bourns
176 In stock - FREE next working day delivery available
Added
Price Each
£2.56
(exc. VAT)
£3.07
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £2.56 |
| 25 - 49 | £2.39 |
| 50 - 99 | £2.23 |
| 100 - 249 | £2.07 |
| 250 + | £1.90 |
- RS Stock No.:
- 796-2570
- Mfr. Part No.:
- PWR220T-35-50R0J
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CR
Product Details
PWR220T-35 Series

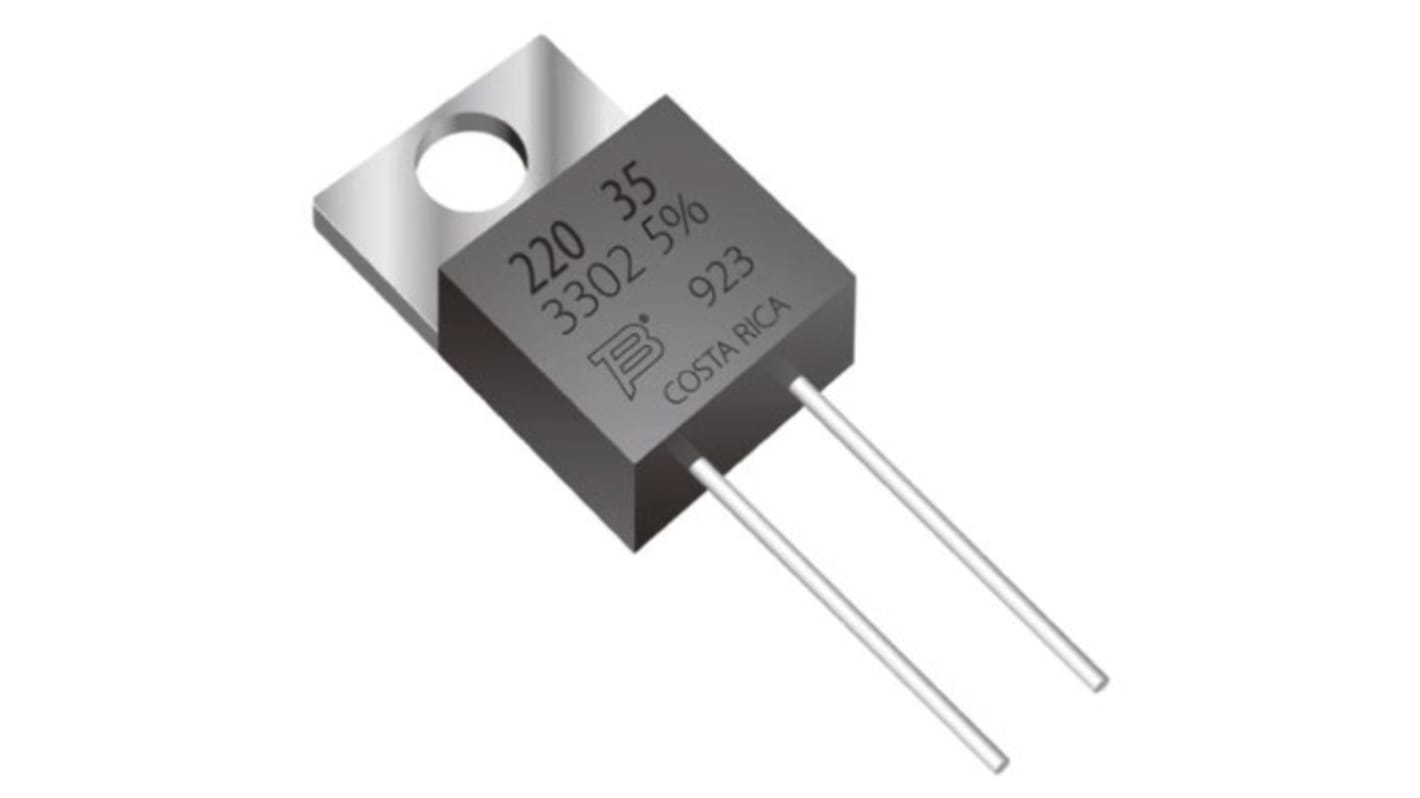

The PWR220T-35 Series from Bourns® is a TO-220 style power resistor manufactured using thick film on alumina ceramic technology.
TO-220 housing
Low inductance
Resistor electrically isolated from the backplate
High power rating
Low inductance
Resistor electrically isolated from the backplate
High power rating
These power resistors are AEC-Q200 qualified and suitable for automotive applications. Other suitable applications include test and measurement, motor drives, power supplies and rectifiers.
Standards
AEC-Q200 qualified
Low Inductive - Through Hole Package
Specifications
Attribute | Value |
|---|---|
| Resistance | 50Ω |
| Technology | Thick Film |
| Package/Case | 0603 (1608M) |
| Tolerance | ±5% |
| Power Rating | 35W |
| Temperature Coefficient | ±100ppm/°C |
| Automotive Standard | AEC-Q200 |
| Series | PWR220T-35 |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +155°C |
