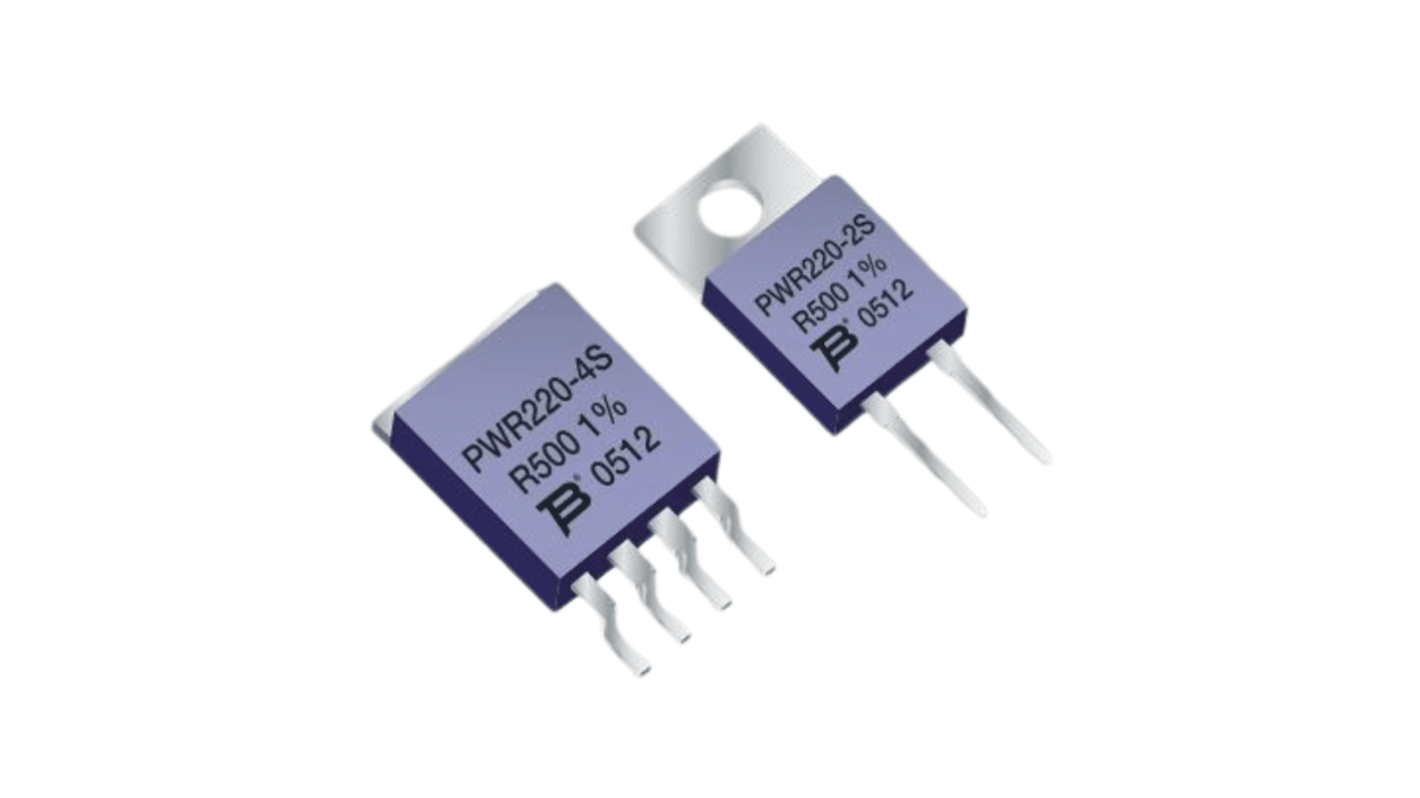

Bourns PWR220 3.3 Ω, TO-220 Thick Film Resistor 1 % Surface 35 W - PWR220T-35-3R30F
- RS Stock No.:
- 630-410
- Mfr. Part No.:
- PWR220T-35-3R30F
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£8.06
(exc. VAT)
£9.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 596 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £4.03 | £8.06 |
| 20 - 98 | £3.26 | £6.52 |
| 100 - 198 | £2.50 | £5.00 |
| 200 + | £2.21 | £4.42 |
*price indicative
- RS Stock No.:
- 630-410
- Mfr. Part No.:
- PWR220T-35-3R30F
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Resistance | 3.3Ω | |
| Product Type | Resistor | |
| Resistor Type | Power | |
| Technology | Thick Film | |
| Package/Case | TO-220 | |
| Packaging | Tube | |
| Tolerance | 1 % | |
| Power Rating | 35W | |
| Voltage | 250V | |
| Temperature Coefficient | ±50 ppm/°C | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Series | PWR220 | |
| Maximum Operating Temperature | 130°C | |
| Width | 16.4mm | |
| Height | 4mm | |
| Length | 10.16mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Resistance 3.3Ω | ||
Product Type Resistor | ||
Resistor Type Power | ||
Technology Thick Film | ||
Package/Case TO-220 | ||
Packaging Tube | ||
Tolerance 1 % | ||
Power Rating 35W | ||
Voltage 250V | ||
Temperature Coefficient ±50 ppm/°C | ||
Mount Type Surface | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Series PWR220 | ||
Maximum Operating Temperature 130°C | ||
Width 16.4mm | ||
Height 4mm | ||
Length 10.16mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CR
The Bourns Power Resistor offers low inductance for high-frequency performance. The resistor is electrically isolated from the backplate for enhanced safety. Designed with a high power rating to handle demanding loads. Suitable for industrial and power conversion applications.
Compatible with lead free solder reflow temperatures
RoHS compliant
